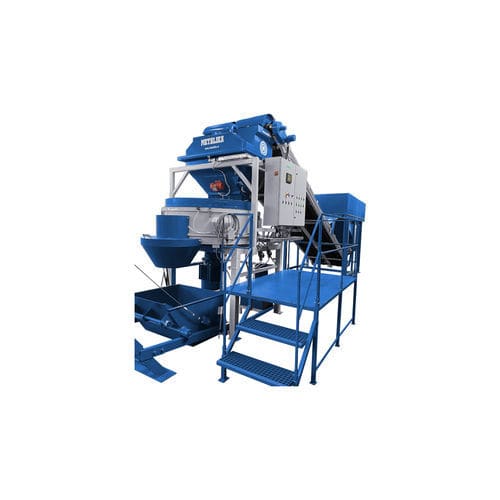

Stationary concrete mixing plant MBT-750V

automaticvertical

Automatic concrete mixing plant contains mixer with vertical rotation axis (PAN concrete mixer made by METALIKA). Manganese blades are changeable and adjustable in order to presume constant quality of mixed concrete. Scale for material (aggregate) and scale for cement is positioned above mixer, and through measuring cell is connected to PLC which controls concrete production. Water is dosed through water meter (stabile pressure connection to water supply is required). Aggregate from hopper to mixer is loaded by belt conveyor. ALL OPERATIONS ARE AUTOMATIC, AND ONLY ONE OPERATOR IS REQUIRED. METALIKA designed MBT-750V Concrete mixing plant in order to be suitable for mixing coarse mix (base mix) concrete for concrete block machines as RVP-2000 and SVP-633 or for other concrete block making machines. Main Features Concrete mixer type M-750 „METALIKA“ (750L / 0.33m3) Scale for aggregate and cement (above mixer) Hydraulic for door opening (automatic) Automatic operation mode (PLC touch screen panel) Snail cement transporter Hopper for material storage 1,2,3 or 4 hoppers Mixers geometrical volume 750l Mixing volume – output 330l Aggregate and cement scale Yes, above mixer Automatic operation Yes (PLC) Door opening Hydraulic Drive Hydraulic
