Panel Meters and Process Indicators with analogue input, with optional outputs and interfaces
Electronic Counters, Position Counters, High-Speed Counters, Differential Counters etc.
Tachometers, Speed Displays and Frequency Meters with optional outputs and interfaces
Timers and Stopwatches, for industrial time-measuring applications
SSI Indicators, Parallel Indicators, Serial Displays for Absolute Encoders and Sensors
PROFIBUS and CANBUS Indicators, Display Units and Preset Units for PROFIBUS and CANBUS
Monitors for overspeed, underspeed, standstill, direction of rotation, slip, skew position, shaft fracture
|
|
|
Programmable counters (preset counters or count controls) are counters that provide output signal(s) at preset count value(s). Typical applications include cut-to-length, batching, filling, mixing and dispensing. Available from Eaton are a variety of count controls in different sizes, display types and feature sets.
|
|
Totalizers are the simplest and most common type of counter, used in a variety of applications where accurate totals are needed, including counting the number of parts produced, amount of material used, or the number of machine cycles occurring.
|
|
Digital high counting speed counter
• Power supply: mono or multivoltage from 24 to 230Vac, 24Vdc
• Display: 1, 2, 3, 4 digits
• Wide range of functions
• With or without display
• With or without memory
• Mounting: wall mounted, panel mounted, DIN rail 35mm
• Dimensions: modular 45mm, frontal 48x48, 48x96 mm
• Connections: screw, faston
|
|
|
Counters & timers are the basic tools widely used in automation process of various industries. Autonics offers the wide range of industrial counters and timers, designed, manufactured and tested to meet the most demanding worldwide standards and ratings. They also offer reliable design, quick replacements, panel space-saving and solutions that offer increased functionality, flexibility and performance.
|
|
|
Allen-Bradley offers the broadest range of relays and timers worldwide. They are designed, manufactured and tested to meet the most demanding worldwide standards and ratings. One-stop shopping saves you time and money, lowering your total cost of ownership. Our General Purpose Relays and Timers offer reliable design, quick replacements, panel space-saving and solutions. Our Industrial Relays and Timers are designed for heavier-duty applications, large loads, long life and safety circuits. Use our main menu to see the latest line-up of Relays and Timers that offer increased functionality, flexibility and performance.
|
|
2.25" & 4" High Red LED Digits
Available in 4 or 6 Digit Versions
Single or Dual Counter with Rate Indicator
Programmable Scaling and Decimal Points
Programmable User Input
AC or DC Powered
5 AMP Form C Relay
Aluminum NEMA 4X Case Construction
|
|
Preselection and multifunction up/down counters 48x48 - CPT4
Totalizers - LCD 24 x 48 (Hour counter/chronometer)
Totalizers - LCD 24 x 48
Total/partial impulse counters - LCD 24 x 48
Hour counters - LCD 24 x 48
Electro-mechanical hour counter CH 48 G
Electro-mechanical impulse counters totalizing - 24 x 48
Electro-mechanical impulse counters totalizing - 36 x 37
Electro-mechanical impulse counters totalizing - 36 x 48
|
|
Our logic control devices provide a multitude of features for use in the automation industry. Frequently, discrete sensor or analog signals need to be conditioned for display or monitoring functions in a process. To help you solve these signal conversion problems, we offer a wide range of indicators, counters/ timers, tachometers and other secondary switching devices, specifically designed for applications and used in conjunction with proximity sensors.
When it comes to signal and discrete pulse control and display, Pepperl+Fuchs offers you a broad line of logic and control products.
|
|
|
|
|
|
Red Lion is pleased to announce the release of a second meter in our new series of PAX® Lite panel meters featuring setpoint control, the PAXLCR. This meter features two independent counters and separate rate display capability. Easy PAX style programming makes meter set-up quick and simple. In addition, the PAXLCR provides dual setpoint control allowing users to have upper and lower control limits via two 5 Amp Form C relays.
The meter has two signal inputs and a choice of eight different count modes. These include bi-directional, quadrature and anti-coincidence counting, as well as a dual counter mode. When programmed as a dual counter, each counter has separate scaling and decimal point selection.
Rate indication is available in all count modes. The rate indicator has separate scaling and decimal point selection, along with programmable display update times. In addition to the signal inputs, the user input can be programmed to perform a variety of meter control functions.
The dual setpoint outputs can activate based on either counter or rate setpoint values. An internal batch counter can be used to count setpoint output activations.
* 6 Digit, 0.56" High Red LED Display
* Programmable Scaling for Count and Rate
* Bi-directional Counting, Up/down Control
* Quadrature Sensing (up to 4 Times Resolution)
* Built-in Batch Counting Capability
* Programmable User Input
* Dual 5 Amp Form C Relay
* Universally Powered
* NEMA 4X/IP65 Sealed Front Bezel
|
|
Easy control of count, time and rate using serial interfaces.
- 48 x 48 DIN-Housing
Typical applications are:
- Timing
- Positioning
- Rate monitoring
- Saw machines
- Cable-cutting machines, loading equipment, specialist machinery
|
|
|
|
|
|
AALBORG®'s compact TOTALIZER is designed to be used primarily
with mass flow meters and mass flow controllers.
It can also be used in conjunction with
other types of instrumentation with 0-5 Vdc signal
outputs.
The TOTALIZER takes analog output flow signals of
either 5 to 10 Vdc from GFM mass flow meters
and GFC mass flow controllers, or 0 to 5 Vdc from
AFC mass flow controllers, AFM mass flow meters
and other compatible products (jumper selectable).
The TOTALIZER integrates and accumulates up to 7
digits of direct engineering units for the given gas
and flowrate (i.e. standard liters, standard cubic
centimeters.
In order to reduce low signal (noise) totalizing, provision is made for 1% cut off.
A built-in battery back-up holds the total reading
for up to 20 years.
The TOTALIZER can be connected to GFM mass flow
meters or GFC mass flow controllers via either a
modular jack replacing the LCD display or with an
additional connector in parallel with the LCD display.
SPECIFICATIONS:
Input Analog Range: 5 to 10 Vdc/0 to 5 Vdc optional.
Power Consumption: 10 mA at 12 Vdc, less than 0.125 watts.
Accuracy: ±0.5% of full scale.
Temperature Stability: ±200 ppm/ºC in the range of 5º C to 50º C.
Display: 7 digit, 8mm figure height.
|
|
- Your choice of LED and LCD Counters
- Miniature and industry standard counters
- Shock proof versions
- Magnetic field proof versions
- Extremly low power consumption
- kWh counters
|
|
Automation components: from mini-counters to sophisticated programmable control counters, totalizing, preset, time, shift and interface counters, position indicators, multifunction counters, timers, controls, tachometers, displays.
signo 723.1 with interface RS 485 / RS 232:
Display: 6-digit, suppression of leading, zeros, programmable decimal point, minus sign, 14 mm
Dimensions (BxHxT): 96 x 48 x 108
Counting frequency: 40 kHz / 30 Hz
Count Input: 0.0001 - 99.9999
Protection class: IP 54
Control inputs: Reset, Gate, Hold, Keylock
|
|
HIGH SPEED ENCODER COUNTER
- 72x72 mm sized,
- 300 KHz speed,
- 2 lines, 7 digits display,
- Conting Encoder A and B signals in quadrature mode,
- Functional Z (Reset) input,
- Functional HOLD input,
- 2 double contact relays outputs,
- Preset-1 may depend on Preset-2,
- Prescale can be adjustable (0,000001 to 9999999),
- Decimal point can be select between 1. and 6. digits,
- 5 VDC or 12 VDC encoder supply output,
- 11 several output mode,
- Adds OFFSET to count value,
- Password protection
|
|
NI counter/timer devices use the National Instruments NI-TIO ASIC, designed specifically to meet the counting and timing requirements of measurement applications that are beyond the capabilities of generic, off-the-shelf counter/timer components.
Counter/timer devices provide a variety of measurement solutions, including measuring a number of time-related quantities, counting events or totalizing, and monitoring position with quadrature encoders. Counter/timer devices feature up to eight 32-bit counters and often fulfill critical timing and synchronization functions as components of complex measurement systems. Use counter/timers for:
- Frequency measurement
- Edge or event counting (totalizing)
- Pulse-width measurement
- Event timestamps
- Frequency generation
- Frequency shift-keying (FSK)
- Frequency division
- Pulse-train generation and pulse-width modulation (PWM)
|
|
Totalisers

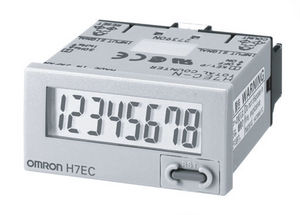

Omron has a wide range of digital total counters. The LCD display range H7E consists of five types (total counting, time counting, tachometer and PCB total/time counters); the high visibility negative red LCD-type range (H7GP & H7HP) consists of total- and time-counting models.
Pre-Set Counters
With its range of pre-set counters, Omron offers you the possibility of controlling all the pre-scale settings you require. The range includes the world's smallest (48 x 24mm) type (H8GN) and an advanced 48 x 48mm version (H7CX).
Cam Positioners
If you wish to replace old-fashioned rotary cams with repeat-pattern control, Omron offers an electronic solution operating in combination with a rotary encoder. Omron's cam positioner H8PS is a front-mounting model of 96 x 96mm with 8 outputs.
|
|
Product B 148
Technical data - electrical ratings :
Approvals CE conform
Gear precision Synchronous to mains
Nominal frequency 50 / 60 Hz
Power consumption 1 VA
Power supply 24/110/220...240 VAC (50/60 Hz)
Other products available:
|
|
ATS, ATA, ATHA, ATHS Tachometers and Tach/Hourmeters
The AT series tachometer is a rugged, transistorized instrument with solid-state circuitry for indication of engine revolutions per minute (RPM). It is equipped with a bracket for mounting into a standard 3-3/8 in. (86 mm) dash mounting hole.
The tachometer’s full 270° sweep of the pointer gives an accurate indication on a large easy–to–read scale. The dial can be illuminated for night reading.
ATA models sense engine speed in conjunction with an engine-driven charge alternator; ATS models work with a flywheel mounted magnetic pickup. ATHA and ATHS models are also equipped with a digital hourmeter to record the elapsed running time of an engine.
Features:
- Sensing from magnetic sensor (ATS, ATHS) or battery charging alternator (ATA, ATHA)
- High visibility analogue readout, 270° sweep
- Reliable air-core movement
- Easy calibration through dial lighting
- Powered by 12 VDC battery. Optional ATVC 24V to 12V converter.
|
|
Description of the programmable, variable and electronic preselection counter GEL 104:
The counter works as coincidence counter. i.e. the output signals (Out 1, Out 2) are activated when the preselected value is reached. Depending on system parameter programming, a monostable and also a bistable signal is available (20 ms, 50 ms, 100 ms, 500 ms, 1s). Resetting to zero or to the set value is achieved manually via the keyboard, electrically via the reset input or by programmed auto-reset.
Important: In the event of a bistable Out 2 -signal, resetting can be achieved only via the keyboard.
* many different control and counting functions programmable
* multiplier for actual-value adaptation programmable
* safe against mains failures
* input frequency up to 40 kHz
* two preselects and one set value
|
|
General description :
An electronic counter that's ahead of its time! This top of the line multi-function, counter has 140 combined operating configurations and standard or high-speed count modes. Available with pin or screw terminals, it has a 2-color backlit LCD display, waterproof front panel, four signal inputs, and relay or solid-state outputs.
|
|
|
Panasonic offers a versatile line of counters and hour meters to meet just about any application need. Panel mount or PC board mounting are available. These products are of the highest quality and offer our customers an outstanding value. Click on a product below to discover how our solutions can seamlessly conform to your applications requirements.
|
|
Models: 40G Series
Figures:4
Size of figures: 4.5 mm
Max. Speed: 300 gpm
Oscillation angle: 42º
Special for billiards, vending, coffee machines, ... etc
|
|
Models: 14G and 27G
Figures: 4
Size of Figures: 4 mm
Resetting by knob.
Counting of persons, parcels, trees, cattle and any type of pieces in factories... etc.
Model 27G With base to place on the table.
Model 14G available also in green, yellow, black and blue colors.
|
|
|
|
|
|
This versatile counter with prescaling can be configured for quadrature or uni-directional inputs, dual preset or single preset with batch preset. Reset can be automatic, manual or electronic with a sink (NPN) or source (PNP) input.
The display is a supertwist high visibility backlit LCD which can be viewed from any angle. The count is on the main display and the preset value (or batch preset) is on the lower display.
• Simple programming via menu driven display.
• Quadrature input
• High visibility supertwist LCD display can be viewed from any angle.
• Backlight programmable ON, OFF or AUTO.
• 40 years data retention with no power.
• Programmable decimal point up to 3 places.
• Operates from 85-265VAC or 10-26VDC.
• 12VDC output to drive a sensor (when AC powered).
• Opto-isolated inputs.
• Wide range of prescaling.
• Output relay contacts rated at 5A.
• Output can be set to latch or pulse with programmable pulse duration.
• Environmental protection to IP65.
• Standard DIN housing.
• CE, UL and cUL approved.
|
|
The model shown is the basic unit, variations are available to special order. All models are robustly constructed for continuous operation at high speeds with the main shaft running in double oil impregnated bearings to ensure accurate, long term, trouble free service.
• Top viewing (front viewing models are available).
• 6 digit 6.4mm character height (0.25in) readout.
• 6.35mm (0.25in) diameter drive shafts.
• Up to 3000 counts per minute with 1:1 gear ratio.
• 1:1, 1:10, 2:1, 3:1, 4:1 gearings as standard.
• Customised gearing available on all models (but some gearings may have fewer digits on the readout).
• Reset to zero and non-reset models available.
• Reset by lever, or cylindrical lock and key.
This counter can be driven from either or both sides. All resettable models can have the reset
lever on the left or the right. A non-reset model is also available.
|
|
Preset / Predetermining Electronic Counters
Our rugged and compact Veeder-Root, Dynapar and Eagle-Signal brand electronic counters are the first choice for economy, accuracy, and fast resetability. Our wide variety of totalizers (Totalizing, Predetermining/Preset Counter, Batch Count, Programmable Setpoint Controls and Alarms) can control an external circuit when its counted total matches a user-entered preset limit.
|
|
Veeder-Root Electronic Timers & Counters
" The Best Known Name in Electronic Timers & Counters™ "
Profile:
Veeder-Root™ - For over 100 years, no other company offers a broader selection of counters. Veeder-Root, the best known name in counters, offer rugged and economical electronic, mechanical and electromechanical counters, including totalizing, preset and predetermining counters as well as diverse process and rate indicators, for non-stop performance and production monitoring in industrial manufacturing applications. Veeder Root was acquired by Danaher in 1989, but the V-R counter products were then re-aligned under the Danaher Industrial Controls Group business segment beginning in 1991 and is supported by an entirely separate sales channel from the Veeder Root tank gauge and fuel management division.
|
|
|
|
