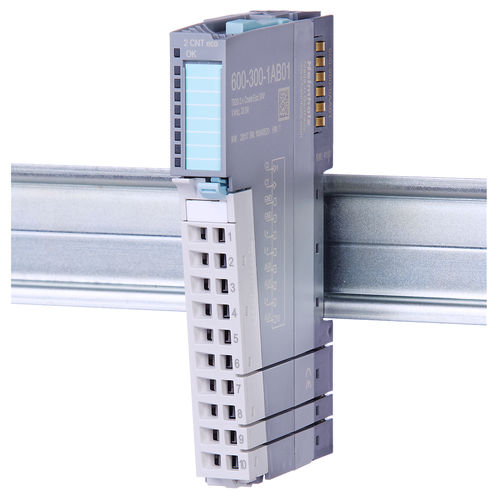

Cycle counter 600-300-1AB01

digitalIP20DIN rail

Counters are used to detect pulses that are faster than a controller’s cycles, i.e., signals that the controller will be unable to detect properly and that therefore need to be pre-processed. The counter module records the edges of 24 V signals as pulses. The pulses are counted and the current count value is always available to the PLC. The counting function can be enabled by PLC control commands. The counter value can be preassigned or reset by the PLC PLC control functions counter release Reset count Load counter value Change counting direction 2 counters Count depth 32 bit (sign-allocated ± 231) Up to 1 kHz counting frequency per counter 24 V voltage supply for counter 9 bytes of input data (count and status) 10 bytes of output data (preset count and control functions)
