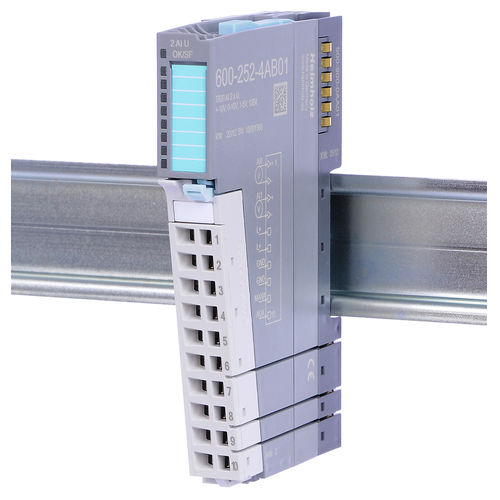

Analog input module 600-252-4AB01

4 analog inputs2 analog inputsfrequency

The scope of delivery already includes the appropriate front connector for the cabling and a base module. The module has 2 analog inputs. Parameters for the module: Diagnostic alarm: On | Off Overflow / underflow diagnosis: On | Off Representation values: SIMATIC* S7 | SIMATIC* S5 | INT16 Parameters for each channel: Wire break detection (only for 1 ... 5 V): On | Off Interference frequency suppression: None | 10 Hz | 50 Hz | 60 Hz | 400 Hz Measuring ranges: Deactivated | 0 ... 10 V | 1 ... 5 V | ±10 V | ±5 V | ±2.5 V Limit value alarms enabled: On | Off Upper/lower limit: 16 bit analog value (±27648) * SIMATIC is a registered trademark of Siemens AG. Measuring ranges 0 ... 10 V, 1 ... 5 V, ±10 V, ±5 V, ±2.5 V, individually configurable for each channel Measurement resolution: 11 bit + sign Diagnostic messages Wire break detection (for 1 ... 5 V) Limit value alarms for each channel A bi-color LED (blue/red) indicates the module operating status and any malfunctions
