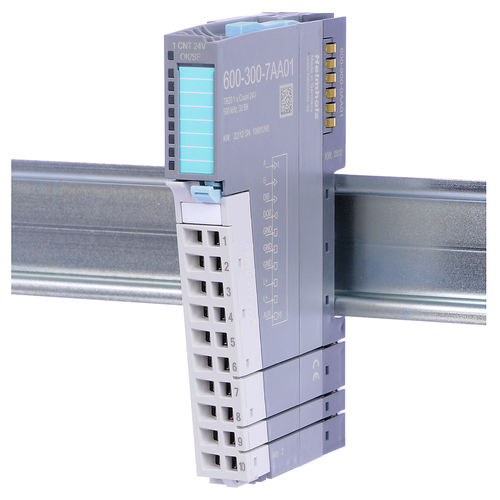

Pulse counter 600-300-7AA01

timecycledigital

Counters are used to detect pulses that are faster than a controller’s cycles, i.e., signals that the controller will be unable to detect properly and that therefore need to be pre-processed. The counter module detects the edges of 24 V signals as pulses. The impulses can be counted or converted into a frequency, rotational speed, or period. The counter module features an additional 24 V input and a 24 V output for a direct response to start pulses and to quick system state changes. Capturing modes Pulse & direction Rotary encoder with single evaluation Rotary encoder with double evaluation Rotary encoder with quadruple evaluation Counting methods Continuous counting Once-only counting Periodic counting Measuring mode Frequency measurement Rotational speed measurement Period measurement Programmable input PLC input Approval (HW gate) Synchronization Periodic synchronization Latch Latch & retrigger Can be inverted Programmable output PLC output Count >= Reference value Count <= Reference value Count = Reference value Can apply a substitute value at STOP Up to 500 KHz (4-fold evaluation) Accommodates 24 V incremental encoders and proximity sensors Filters: 10 kHz | 50 kHz | 100 kHz | 500 kHz All inputs can be inverted Limits for counter and measured readings Hysteresis for input Pulse duration for output Refresh rate / averaging time for measuring mode
