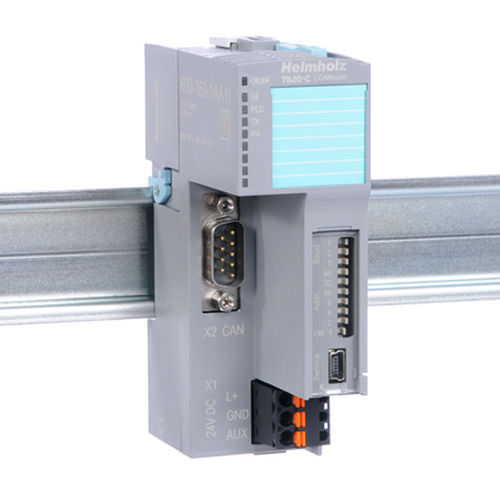

Electronic coupler 600-160-1AA11

I/OCANopen busdigital

The CANopen bus coupler is designed to connect a CAN bus to TB20 peripheral modules. It supports the CANopen protocol as defined in DS301 and uses the DSP-401 profile for digital and analog I/O modules. Up to 64 modules of any kind can be connected in series with the bus coupler. This coupler makes it possible to use SDOs to freely access all I/O values, parameters, and diagnostics, and can manage up to 192 bytes of I/O data with the PDO protocol. A functioning TB20 configuration will always require a bus coupler and at least one peripheral module. The bus coupler supports hot-swapping for replacing modules during operation. Modules can be replaced during operation (hot-swapping) 24 V DC power supply Integrated power supply unit for powering peripheral modules (2.5 A) Supplies the system’s I/O voltage (24 VDC) TB20 ToolBox simulation for commissioning the I/O system without a higher-level controller in order to test the functionality (I/O check) Concealed "factory reset" switch for restoring the module to its factory settings CANopen protocol as defined in DSP301 and DS401 Transfer rates of 50 kbps to 1 Mbps 24 TPDOs / 24 RPDOs 1 SDO server Heartbeat producer Two heartbeat consumers Node guarding SYNC object Storable parameter configuration Up to 64 peripheral modules
