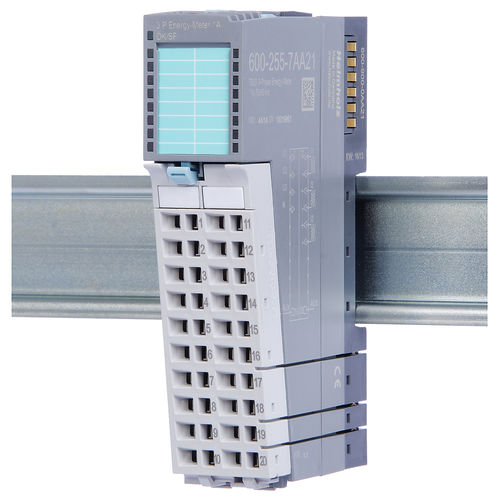

Three-phase electric energy meter 600-255-7AA21

DIN rail50 Hz60 Hz

The Energy Meter function module for the TB20 IO system records all essential measured values ​​from AC 230 V networks with regard to current and voltage measurement. Input voltages (3 phases + N) can be connected directly to the module. In addition to general status information, the module's configuration can be used to show up to 7 readings in the input image table. In the event of a system failure, the controllable meter's values will be stored in non-volatile memory. Input currents are coupled through current transformers. The Energy Meter module is designed for a maximum secondary current of 1 A. Other rated secondary currents, as well as the use of Rogowski coils, are available upon request. Note: Individual modules cannot be combined with the IO systems of other manufacturers. Parameters for the module Overvoltage / undervoltage threshold Overcurrent threshold Zero transition timeout Enable energy meter 50/60 Hz line frequency 3-wire or 4-wire voltage measurement Process image table input values Parameters for phases A, B, and C Primary current Secondary current Phase angle error correction (for current transformer phase angle error) Zero crossing, overvoltage / undervoltage , overcurrent diagnoses Configurable process input image table 7 readings at the same time RMS voltage A,B,C RMS current A,B,C A, B, C, and total real power/energy A, B, C, and total apparent power/energy A, B, C, and total reactive power/energy Frequency A, B, C, and total power factor Phase angle between the voltages or between the currents Diagnostic messages Phase shift Overvoltage / undervoltage Overcurrent No zero crossing (no phase) Configuration errors
