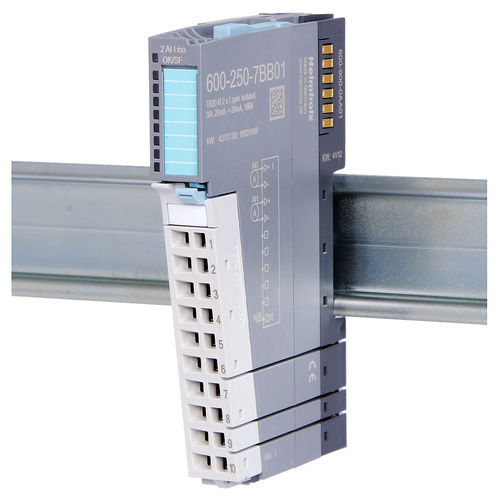

Analog input module 600-250-7BB01

8 analog inputs4 analog inputs2 analog inputs

The scope of delivery already includes the appropriate front connector for the cabling and a base module. The module has 2 analog inputs. Parameters for the module: Diagnostic alarm: On | Off Overflow / underflow diagnosis: On | Off Representation values: SIMATIC* S7 | SIMATIC* S5 | INT16 Parameters for each channel: Wire break detection (only for 4 ... 20 mA): On | Off Interference frequency suppression: None | 10 Hz | 50 Hz | 60 Hz | 400 Hz Measuring ranges: Deactivated | 0 ... 20 mA | 4 ... 20 mA | ±20 mA Limit value alarms enabled: On | Off Upper/lower limit: 16 bit analog value (±27648) * SIMATIC is a registered trademark of Siemens AG. Channels electrically isolated from each other and from the backplane bus Measuring ranges 0 ... 20 mA, 4 ... 20 mA, ±20 mA, individually configurable for each channel Measurement resolution: up to 15 bits + sign Suitable for 2- and 4-wire transmitters Diagnostic messages Wire break detection (for 4 ... 20 mA) Limit value alarms for each channel A bi-color LED (blue/red) indicates the module operating status and any malfunctions Red/green bi-color LEDs (one for each channel) indicate the channel status
