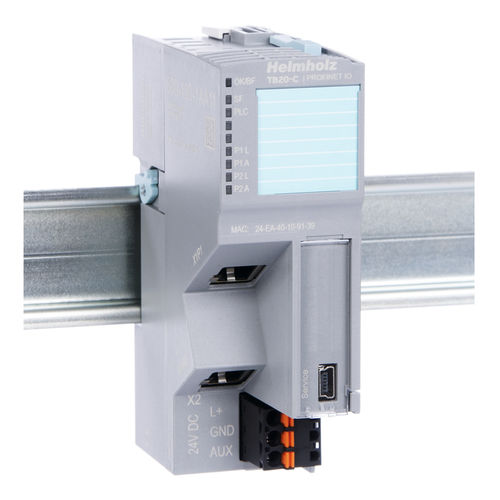

Electronic coupler 600-180-1AA11

ProfiNetI/Obus

The PROFINET bus coupler is designed to connect a PROFINET bus to TB20 peripheral modules. It can accommodate up to 63 modules of any kind connected in series with the bus coupler. The bus coupler supports hot-swapping for replacing modules during operation. In addition, it will recognize all connected peripheral modules and assign each module the corresponding inputs/outputs from the process image table. A functioning TB20 configuration will always require a bus coupler and at least one peripheral module. Modules can be replaced during operation (hot-swapping) 24 V DC power supply Integrated power supply unit for powering peripheral modules (2.5 A) Supplies the system’s I/O voltage (24 VDC) TB20 ToolBox simulation for commissioning the I/O system without a higher-level controller in order to test the system's operation (I/O check) Concealed "factory reset" switch for restoring the module to its factory settings I/O device as per PROFINET IO (IEC 61158-6-10) Integrated 2-port switch Full-duplex transmission rate of 100 Mbps 340 byte I/O data Up to 63 peripheral modules Conformance Class C Media Redundancy Protocol (MRP) Automatic addressing / hot-swapping (LLDP, DCP) Topology detection I&M data Diagnostic alarms, process alarms, pull/plug alarms Integration using GSDML file 7 LEDs, one of them bi-color
