The Wildcat gives OEM designers optional Ethernet connectivity in a low-cost, high-performance single-board computer. These compact boards are rich with the digital I/O, A/D, and D/A designers need for embedded control and monitoring applications, and the Wildcat's compact board allows for easy integration.
Ethernet models are ideal for remotely monitoring and supervising another programmable system or web-enabling new or existing products.
|
|

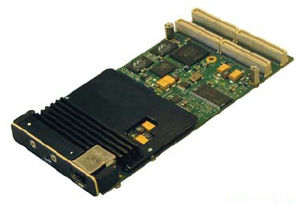

PMC Gigabit Ethernet Controller
32/64-bit, 33/66 MHz PCI and/or 66/133 MHz PCI-X operation PMC Module
1 or 2 independent Gigabit Ethernet channels
Copper and/or optical transmissions supported
Auto detect of 10 Base-T,100 Base-TX or 1000 Base-T in copper network configurations
|
|
|
|
|
|
Model ROBO-N201G
One-port Gigabit Ethernet extension module with Portwell OmniPCI connection interface
Intel® 82540EM
Compact sized
Proprietary PCI connector for piggy back (board to board) connection
Fully PCI Bus spec. V2.1 compliant
One accessory card for extension Ethernet port(s), Link, and Speed indicators (Two LED indicators; one shows green when linked and blinks when transmitting or receiving data, the one shows green when linked at 100 Mbps and yellow when linked at 1000 Mbps)
One Ethernet RJ-45 daughter board and one daughter card
Support IEEE 802.3
Auto-negotiation algorithm of full-duplex and half-fuplex operation for 10 Mb/s and 100Mb/s (NWAY)
Dimension : 77(L) x 52(W) mm
Model ROBO-N100P
Fast Ethernet extension module with Portwell OmniPCI connection interface (P4 solution)
For Intel® Pentium® 4 processor based SBC
Intel 82559
Compact sized
Proprietary PCI connector for piggy back (board to board) connection
Fully PCI Bus spec. V2.1 compliant
One Ethernet RJ-45 daughter board and one daughter card
Support IEEE 802.3
Auto-negotiation algorithm of full-duplex and half-fuplex operation for 10 Mb/s and 100Mb/s (NWAY)
Dimension : 77(L) x 52(W) mm
|
|
| ... products without technical information |
| |

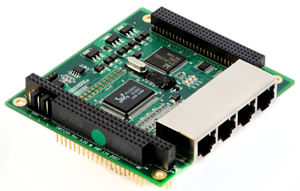

Korenix JetCard 2105/2205 Ethernet Switch Cards are flexible and high performance Universal PCI/PCI-104 cards, equipping IPC devices with various Ethernet management features. The easy-to-install drivers that come with JetCard allow users to easily set up specific complex systems. Combined with 1.5KV Hi-pot isolation protection and overload current/voltage protection, JetCard 2000 series are the best choice for a reliable and cost-effective embedded networking solution in severe industrial environments.
* Support 32 bit PCI/Universal PCI bus
* 5 ports RJ45 Ethernet Switch
* IEEE 802.3 10 Base-T and 100 Base-Tx compatible
* Full or half duplex at 10/100 Mbps
* IEEE 802.3u Auto-Negotiation supported
* IEEE 802.1Q VLAN supported
* QoS supported
* 1.5KV Hi-pot isolation protection
* -25~70oC operating temperature for hazardous environment
application ( JetCard 2105-w/JetCard 2205-w: -40~80oC)
|
|
Robust 5-Port Managed Gigabit Ethernet Switch Boards
* Universal copper and fiber optic solution
* SFP Module for various fiber optic interfaces
* Simple and comfortable Web Interface
* Stand alone or PC/104, PC/104-Plus operation
* Lowest power consumption - fanless
* Optional for -40°C to +85°C
* Long term available
|
|
|
|
|
|
IPnexus® CPC6600 24-Port 10/100/1000 TX PICMG® 2.16 Ethernet Switch
The IPnexus® CPC6600 is an embedded Ethernet switch compatible with both standard CompactPCI® and PICMG® 2.16 backplanes. It is designed to be used as a high-speed interconnect within server blade chassis or as a core switch in fault-tolerant clusters of embedded systems.
The CPC6600, part of the Advanced Managed PlatformTM offering, provides increased bandwidth, performance and reliability in high availability applications such as defense, IP telephony and broadband. Used within a PICMG 2.16 environment, users can realize performance gains of up to 40 times that of current PCI-based architectures. The PICMG 2.16 standard extends the existing CompactPCI 2.x specifications by adding a packet-switched backplane architecture to the chassis midplane, based on dual redundant Ethernet.
Highlights
24 10/100/1000 Base-T Ethernet ports
Wire-speed Layer 2/Layer 3 routing
44Gbps switching speed
Support for both 2.16 and non-2.16 modes
Front or rear panel uplinks
Real-time continuous integrity checks for non-stop networking
Rapid spanning tree, link aggregation, VRRP and jumbo frame support
Advanced fast filter processor for wire-speed Layer 2-7 packet classification and filtering
LUA scripting language
RoHs Compliant
|
|
|
The MAXnet is a Ethernet / RS232 motion controller with up to 5 axes of user-definable servo & stepper motion control. The MAXp is built on a PowerPC 32-bit RISC processor running at 266 MHz. The use of this processor delivers exceptional servo control, capabilities, quality, and application performance on multi-axis requirements. All signals, data points, and the PID loop update every 122μs on all 5 axes. Each axis of the MAXnet controller can be configured as a servo, open loop stepper, or a closed loop stepper.
|
|
