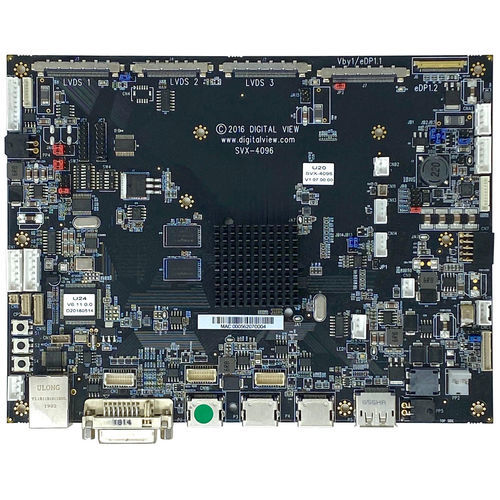

LCD controller card SVX-4096

LCD controller card
LCD controller card
LCD controller card
Add to favorites
Compare this product


RS-232, Ethernet, LVDS, HDMI


• LCD panels up to 3840x2160, 4096x2160 • Panel connectivity: V-by-One, LVDS, eDP • Video inputs: - HDMI 2.0 & 1.4 - Displayport 1.2 - DVI-I • RS-232 & Ethernet* for controls & functions • Programmable hot-keys • Picture-in-Picture (PiP), Picture-by-Picture • Customization: Contact us • Part number: 4175500xx-3 • Build option: 4175502xx-3 (omits Ethernet, RJ45) Recent Updates • Support for JOLED OLED panels • User programmable Gamma LUT • User definable video input menu names • Build option omitting Ethernet, RJ45 connection The SVX-4096 LCD controller board is an interface board converting video signals such as HDMI, Displayport, DVI to the signals required by compatible LCD panels such as from AUO, BOE, Innolux, LG Display, Samsung, Sharp and others. It also provides image management functions as well as monitoring and control features for the finished monitor or display system. The SVX-4096 is supported by a wide selection of panel connection cables and other accessories together with system development documentation, 3D drawings and engineering support for customization. The SVX-4096 is a feature rich model, similar models include the SVX-4096-120 for 120Hz panels and the HX-4096 for harsher environment type display systems. The extensive feature set ensures suitability for many commercial display applications such as digital signage and corporate AV. A full summary of Digital View LCD controllers can be seen here LCD Controller Summary.


2 Pages
