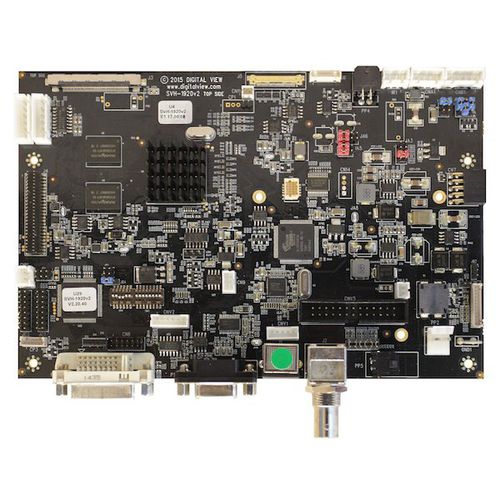

LCD controller card HE-1920v2

RS-232LVDSVGA

• LCD support: Up to 1920x1200, 10-Bit • Panel connectivity: LVDS, eDP • Inputs: DVI, ARGB (VGA), Component (HD/SD), Composite • Programmable hot-keys • Picture-in-Picture (PiP), Picture-by-Picture The HE-1920v2 LCD controller replaces the original HE-1920 providing the same signal inputs, same size and mountings as well as adding eDP panel connection and providing increased color depth support to 10 bit per channel. Digital, analog and composite video input with board mounted industry standard input connectors for easy enclosure design. The HE-1920v2 is supported by a wide selection of panel connection cables and accessories together with system development documentation including 3D drawings. Initial availability: December 2015
