• LCD support: 1920x1200 @60Hz, 10-Bit
(120Hz supported with IE-1000 add-on)
• Panel connectivity: LVDS
• Inputs: HDMI 1.4, DVI, ARGB (VGA)
• Programmable hot-keys
• Picture-in-Picture (PiP), Picture-by-Picture
• Image flip (orientation)
• Ethernet & RS-232 control

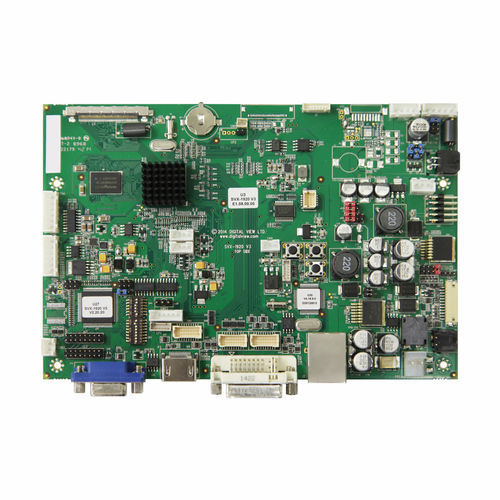

The SVX-1920v3 is an advanced LCD controller for video signals up to 1080p/60 and LCD panel resolutions up to 1920x1200. Digital and analog input with board mounted industry standard input connectors for easy enclosure design. The very extensive feature set ensures suitability for many display applications. The SVX-1920v3 is supported by a wide selection of panel connection cables and other accessories together with system development documentation including 3D drawings. Available since: October 2014
