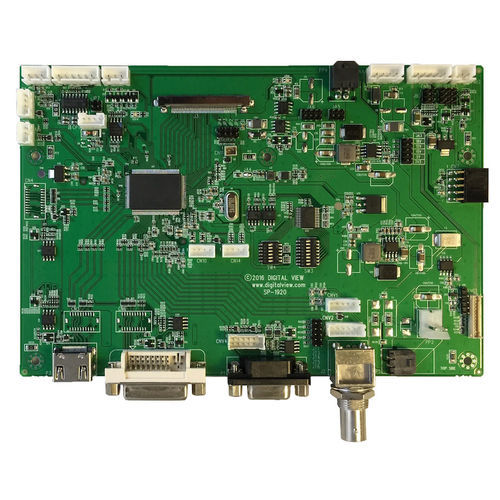

LCD controller card SP-1920

RS-232LVDSHDMI

• LCD support: Up to 1920x1200, 10 bit • Panel connectivity: LVDS • Inputs: - 2 x HDMI: 1 x connector, 2 x header - 1 x DVI: 1 x connector - 1 x VGA: 1 x connector, 1 x header - 2 x Composite: 1 x connector, 1 x header - 1 x Component: 1 x header • Integrated MP4 media player / failover • Separate power in for high power panels • RS-232 control The SP-1920 LCD controller is an interface board converting video signals such as HDMI, DVI, VGA and Composite to the signals required by compatible LCD panels such as from AUO, BOE, Innolux, LG Display, Samsung, Sharp and others. It also provides media playback, image management functions as well as monitoring and control features for the finished monitor or display system. The SP-1920 is supported by a wide selection of panel connection cables and other accessories together with system development documentation, 3D drawings and engineering support for customization. The SP-1920 has an equivalent model for harsher environments, the HSP-1920. The feature set of the SP-1920 ensures suitability for many commercial display applications such as digital signage and corporate AV. A full summary of Digital View LCD controllers can be seen here LCD Controller Summary.
