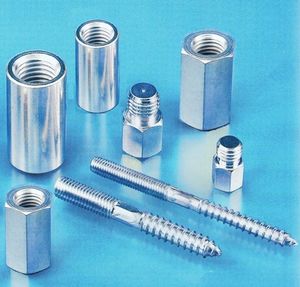

A RANGE OF PRODUCTS : STEEL OR STAINLESS STEEL
COUPLING NUTS ROUND OR HEXAGONAL
REDUCING NUTS F/F & M/F ; Sample: M6/M8
DOWEL SCREWS WITH WOOD AND METRIC THREAD
THREADED RODS M6 to M12 ; L25 to 200
|
|
|
|
|
|

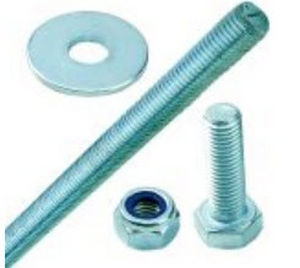

In order to answer the requirements of each industry, Emile MAURIN has developped a wide range of standard fasteners.
The Emile MAURIN fasteners department keep on stock more than 40 000 fasteners types, dispatched in 10 groups of standard products :
* Hexagonal head bolts
* Socket cap screws
* Nuts (hexagonal, flange, wing, slotted, ...)
* Washers (flat, spring, conical, ...)
* Threaded rods (1, 2, 3 meters, ASTM)
* Machine screws
* Tapping screws
* Self drilling screws
* Thread forming screws
* Wood and chipboard screws
* Rivets (aluminium, stainless steel, steel, structure rivet)
* Anchor parts
* Various products : pins, retaining washers, cage nuts, pin clips, conical springs, spring lock washer, clamp, ...
These products are available in several materials : steel, stainless steel A2, A4, brass and nylon.
Our fasteners are produced according to the standards NF, NFEN, DIN, ANSI, in all materials, grades (6.8, 8.8, 10.9 ...) and coatings.
The production process are cold forging, hot forging or bar turning.
The different recess types socket, 6 lobes allow an easier mounting and optimal tightening torque. Some screws are also with a pozidriv recess.
Our team of specialists are available to take care all your demands.
|
|
|
|
|
|
With the STC EZ-Torque, Eaton Aeroquip is launching to the market a very promising innovation in the field of hydraulic hose connection technology and is exhibiting this at "Fluidtrans" in Milan: the adapter-free plug-in connection is easy to install and can be mounted within seconds on all standard thread ports. This connection system, which is available as a mass production item as of the middle of 2008, opens up a completely new range of operational possibilities.
STC EZ-Torque helps you eliminate your port adapters without sacrificing performance. The EZ-Torque connector is your solution to simplifying your hydraulic design and assembly. EZ-Torque combines the advantages of both threaded and threadless connectors - providing efficient assembly, while maintaining the ability to orient phase angles and handle vibration.
Features and Benefits
- Easy to incorporate, no custom ports required
- Allows for quick and easy install
- Reduced Hose fitting installation time
- No Adapter installation time
- Fewer operator-dependent leak paths
- Ergonomically friendly
- Handles vibration and side load
- Lock down / Anti-Rotation
|
|
Description:
JPF25-M6-2
THREAD SIZE:M6*1
THREAD CODE M6
SHEET THICKNESS:3.2-4.8
A 0.1:3.4
B 0.1:1.6
SHANK CODE:2
G 0.4:12.6
T1 0.2:25.3
T2 NOM.:19.3
E 0.25:14.7
other sizes are fully available:
440, 632, 832, 032, 0420
M3, M3.5, M4, M5, M6
Features:
1. We supply the PF range panel fasteners with different head including TORX, SLOTTED, PHILIPS, LOT/PULIPIS 2. The PF range includes JPF12, JPF22, JPFS2, JPFC2, JPFHV, JPF30, JPF31, JPF32, JPF50, JPF60, JPF52, JPF62, JPFC2P, JPF15, JPF25, JPF16, JPF26, JPF18, JPF28, JPF38. JPFK, JPF17, JPF09, JPF08, JPF10, JPF11, JPF01.
3. Carbon steel and stainless steel material are available.
4. Pre-installed and post-installed two types are available; self-clinching and ballooning two styles are available.
|
|
|
WDS have a range of Stainless Steel Standard Parts, these were crafted around our standard offering but has grown considerably to include many new parts including a full range of Quick Release Pins available ex-stock. As with most Standard Parts these are available to download as 3D models in your native format at our website.
|
|
Seaview is proud to present the FLOOR ANCHORS from PYI.
This product is designed and engineered to secure floorboards or lock hinged panels. Made out of
316L stainless steel or brass, they will not corrode, discolour with age or damage the wood surface.
The Floor Anchor safely holds 200kg per unit. The PYI Floor Anchors meet ISAF (formerly ORL)
requirements for offshore boats (category 2.03).
The opening mechanism is a simple bayonet style, with ¼ turn lock and release that will not loosen
with age. It can be opened or closed by either a coin or a flat head screwdriver. The 11-FA0-34 is
suitable for 13 to 19 mm thick floorboards and the 11-FA1-00 is for 22 to 30mm thick floorboards.
In 318 stainless steel or in brass, this locking system will allow you to safely secure a boat
floorboards without damaging the wood, while still allowing easy access, all of this with a stunning
look never before offered as a fastener.
|
|
|
Acument Global Technologies offers a broad line of construction fastening solutions. Our Elco® fasteners are used in almost every building type imaginable, from residential housing to skyscrapers, and have been performance tested in the face of hurricane-strength winds. Our major construction customers include Bechtel Group, Bluescope Steel, Heckmann Building Products and Magnatrax, as well as dozens of other national and local general contractors and residential builders.
|
|
Acument Global Technologies is one of the technology leaders in the electronics fastener segment. When Hitachi launched its micro disk drive, we produced one of the smallest fasteners in the world, with a diameter of only 0.8mm. Similar projects for cellphones, audio players and gaming consoles have cemented our position as a major provider of fasteners for the electronics industry, working with companies like Motorola, Honeywell, IBM, Nokia and Seagate.
|
|
CLIPS for electrical cable (Certified by VDE)
TECHNICAL DETAILS
Collated Cable Clips
from 3/8" - 1-3/4" (9,5 - 45 mm)
For electric cable with diameter
5/16" or 3/8" (8 or 10 mm)
|
|
|
|
|
|
Assembly System design
In helping the customer select a system our application engineers have a wealth of experience to draw upon. In general, the key factors in the selection are:
Process speed - the rate at which components need to be assembled will determine the type of equipment and the number of stations needed. Ergonomic design of these workstations, component handling systems and in built fixturing can all improve process throughput as can the introduction of robotics and linked cells.
Flexibility -Assembly automation is not only suited to continuous flow production of a single product type. Our systems can be designed with in built flexibility to allow for changeovers with the minimum of unnecessary downtime. Avdel® also offers an extensive range of handtool based solutions which offer the greatest level of flexibility.
PLC control and monitoring - In many cases, modern manufacturing demands an increased level of process monitoring and control. Sensors, counters and mechanical locks, tied in to a PLC control system, give the user an increased level of confidence in the assembled product quality. Systems can also be designed to help with preventive maintenance regimes as well as troubleshooting any potential problems – these can significantly the overall cost of ownership and increase the equipment life.
Types of Assembly System
Avdel® offers different levels of automation to match the operational requirements of the customer. These are developed using modular design principles to:
Improve maintenance and serviceability
Reduce implementation times
Increase flexibility for equipment modification and extension
|
|
Used to fasten one object to another, fasteners include bolts, nuts, rivets and lead screws.
Mainly Using for Aerospace and Automobile
Minebea's fasteners are used in a wide range of applications demanding superior quality and durability, particularly in aircraft and automobiles.
|
|
|
Acument Global Technologies has become the supplier of choice for a number of today’s most popular vehicles made in each of the world’s automotive manufacturing markets. We focus on areas within the automotive industry that call for specialized engineering that incorporate unique, value-adding fastening design solutions — from engines, energy management, transmissions and chassis to suspension, seating and interior trim. Our businesses have become the suppliers of choice for many of the world’s leading automotive brands globally, from OEMs to Tier suppliers.
|
|
clamp to standards
For applications, numerous standardized clamping elements are available
* Clamps according DIN 3015 part 1-3
* Flat steel bolt clamp according DIN 3567
* U-bolt clamps similar to DIN 3570
Series strips
Series strips for groups of pipes and dynamically loads of pipe groups
* 3 sizes
* diameter light range from 6 - 25 mm
* diameter heavy range from 6 - 56,4 mm
|
|
PF11, PF12, PF11PM
PF11, PF12, and PF11PM are completely pre-assembled spring loaded panel fasteners with a slot and/or phillips drive. Both have thread sizes #4 to 1/4" and M3 to M6.
PF30, PF31, PF32
Completely pre-assembled spring- loaded panel fasteners. Thread sizes #4 to 1/4" and M3 to M6.
PFC4
Meets UL 1950 " service area access" requirements. Assorted screw lengths for most applications, for use in sheets of HRB 88 or less.
PFHV
These low cost panel fasteners have a small, compact design for limited space applications. Thread sizes #4 & 6 and M3 to M4
|
|
The CAM-PT10 is the latest quick release fastener exclusively designed and manufactured by Camloc. Its quick and easy open and close mechanism lends itself to applications where easy access is required through removal and re-attachment of panels, covers or other components.
Benefits:
Grip range up to 7.5 times wider than similar products
- Accommodates a wide variation of joint thicknesses
- Compensates for material/plating tolerance variation
Requires a ¼ turn to open and a push to close.
Wing head & combi-slot heads enable use by hand or tool.
All components are easy to install with no tooling required.
|
|
Our more than 36 years’ experience on the market for stainless steel fasteners is brought to bear with particular force in this product segment.
All of the articles with relevance to fastening technology – from the traditional screws and nuts in thousands of individual models, through washers, retaining rings and keys in many versions, right up to bolts, split pins and rivets in just as many variations – can be delivered.
Both the parts standardized in accordance with DIN or ISO and the non-standardized fastening elements (e.g. chipboard screws, mushroom head screws, washers) are available.
Stainless steel remains the material of choice for most of the Lederer customers. Hardly any other material can boast its defining properties, such as corrosion resistance, long lifespan and non-magnetizability. And not least, the optical impression made by a mirror-fi nished stainless steel fastener infl uences the choice of material more often than one would suppose.
|
|
Fasteners
Screw connections made of refractory metals Refractory metal fasteners are used in many applications because of their corrosion resistance as well as their high-temperature properties. Examples include high-temperature furnace construction, the chemical industry, medical technology and aerospace.
Available Products:
* Screws, nuts, rivets, pins in refractory and special metals in various designs.
|
|
Parts which are circular, have several edges, or are
excentrical in the diameter range of 3 to 14 mm
and 10 to 70 mm long can be produced as solid or
hollow parts. Multi-stage presses and ancillary
equipment of the latest design are available for
production. Design office and tool shop are all inhouse.
|
|
|
The elements in the Fasteners product group provide power-locking profile connections of extreme rigidity.
|
|
mk connectors
mk offers a large selection of perfected, stability-oriented connection elements coordinated with the respective profile series.
Connectors:
- Internal fasteners
- Angles
- Console connection
- Corner blocks
- Face plates
- Clamps
|
|
LCBS - Locking PCB Support Series
LCBS-2 - Locking PCB Support Series
LCBS-3 - Locking PCB Support Series
LCBS-5 - Locking PCB Support Series
LCBS-6 - Locking PCB Support Series
LCBST -Locking PCB Support,Teardrop Series
CLCBST - PCB Support,Cup,Teardrop Series
LCBS-7 - Locking PCB Support Series
LCBS-8 - Locking PCB Support Series
LCBSM - Locking PCB Support,Mini Series
CBS - Non-Locking PCB Support Series
LCBS-4 - Non-Locking PCB Support Series
LNCBS - PCB Support, Long Nose Series
BHL - PCB Support,Blind Hole Mnt Series
BHC - PCB Support,Blind Hole Mnt Series
SRLCBS - PCB Supprt,Rivet Mnt Series
LKSL - PCB Support,Keyslot Mnt Series
KSLBN - PCB Supprt,Keyslot Mnt Series
DLCBS - Dual Locking PCB Support Series
MDLCBS - Metal Dual Locking PCB Spt Series
DLCBS-2 - Dual Locking PCB Support Series
DLCBS-3 - Dual Locking PCB Support Series
DLCBSM - Dual Locking PCB Spt,Mini Series
|
|
|
|
|
|
As soon as it becomes clear that a fastening problem cannot be solved with normed or standardized elements, it is advisable to use special parts. Changing parameters slightly to adapt a standardized part to your special case is sometimes enough. In other cases a completely autonomous trial solution is required. In both of these cases, Lederer is the right partner for you. On the basis of the information that you provide, we procure every desired special part in every desired material, either by drawings or on the basis of existing samples.
This includes:
- Swiveled parts
- Extruded and press forged parts
- Hot-formed parts
- Cast and forged parts
- Stamped and bent parts
- Security screws
As regards the individual specifications, there are hardly any limits to what you can request:
- in all diameter ranges and all thread mouldings (fine-, left-, UNC-, BSW- etc.)
- in all materials (stainless steel, steel, special materials)
- in all product classes and their corresponding demands
- with all surfaces, coatings and securing elements
It goes without saying that special and designed parts are subjected to the same stringent quality checks as our normed and standardized parts. The same applies to the fact that you will receive test certificates in accordance with DIN EN 10204.
|
|
Application examples: Adjuster Gears
High strength cold forged adjuster gears
New, more stringent crash test parameters require pinions with higher mechanical strength. The cold forged net-shape adjuster gears offer higher strength gear teeth, combined with precision tolerances to offer improved reliability and performance.
Cold forged pinions: Higher mechanical strength than current sinter or machined metal pinions
Increased fatigue durability
Precision tolerances: Can eliminate expensive secondary operations
Hollow parts if required: Optimal component weight
Complicated geometries: Design flexibility
possible: Low cost component solutions
Application examples
Seat adjustment elements: Longitudinal adjustment; Backrest adjustment; Seat height & tilt adjustment
Seat belt pre-tensioner
Hand brake adjuster
Gears
|
|
Description:
JPF25-M6-2
THREAD SIZE:M6*1
THREAD CODE M6
SHEET THICKNESS:3.2-4.8
A 0.1:3.4
B 0.1:1.6
SHANK CODE:2
G 0.4:12.6
T1 0.2:25.3
T2 NOM.:19.3
E 0.25:14.7
other sizes are fully available:
440, 632, 832, 032, 0420
M3, M3.5, M4, M5, M6
Features:
1. We supply the PF range panel fasteners with different head including TORX, SLOTTED, PHILIPS, LOT/PULIPIS 2. The PF range includes JPF12, JPF22, JPFS2, JPFC2, JPFHV, JPF30, JPF31, JPF32, JPF50, JPF60, JPF52, JPF62, JPFC2P, JPF15, JPF25, JPF16, JPF26, JPF18, JPF28, JPF38. JPFK, JPF17, JPF09, JPF08, JPF10, JPF11, JPF01.
3. Carbon steel and stainless steel material are available.
4. Pre-installed and post-installed two types are available; self-clinching and ballooning two styles are available.
|
|
Product Features and Benefits :
A variety of head styles and receptacle styles makes it easy to adapt the common benefits of quick, sure fastening performance to a number of materials and mounting conditions. Choose from small, medium, and large sizes to suit working load and dimensional requirements.
- Grip tolerant design accommodates variability in material thickness
- Loosely mounted captive screw simplifies quicker, easier alignment
- Fast-pitch threads deliver quicker access, greater pull-up, with less turning effort
- Variable tightening force is controlled by end user
- High-strength construction
- Corrosion-resistant materials
Available Options
- Screw finishes include hardened carbon steel with zinc chromate plus sealer, and 300 series stainless steel
- Retainers include nylon for general use, and stainless steel for outdoor applications
- A variety of retainer installation tools is available to match the appropriate sizes and styles of fast-lead captive screw retainers
|
|
DZUS PUSH-TO-CLOSE, TURN-TO-OPEN QUARTER TURN FASTENERS
- Snap firmly into receptacle with a simple push on the stud
- Studs release with a quarter turn that disengages grip of receptacle
- Available in metallic and non-metallic styles
- Includes spring-loaded self-ejecting options
DZUS TURN-TO-CLOSE, TURN-TO-OPEN QUARTER TURN FASTENERS
- Positive engagement mechanisms hold fast despite vibration
- Flush and low-profile stud head options provide a clean panel surface
- Available in metallic and non-metallic styles
- Available in hand-actuated and tool-actuated styles
|
|
Camloc Quick Release Fasteners provide a vibration resistant joining solution for quick and repetitive attachment and removal of panels with minimum effort owing to their ¼-turn, push-turn & push-push quick release mechanisms.
Benefits:
-Locking and unlocking the fastener only requires a quarter turn or a push.
-Fasteners can be locked and unlocked in a matter of seconds - saving time and reducing costs.
-Vibration resistant - performs well in even the most intensive applications.
-Camloc Quick Release Fasteners are safe and easy to use.
-A comprehensive range of fastener styles available in many sizes.
Slotted Recess Head
Cross Recess Head
Hex Head Slotted Recess
Hex Recess Head
Square Head
Fixed Wing Head
Offset Fixed Wing Head
Folding Bail Handle
Star Formed Head
Wing Head
|
|
Camloc Quick Release Fasteners provide a vibration resistant joining solution for quick and repetitive attachment and removal of panels with minimum effort owing to their ¼-turn, push-turn & push-push quick release mechanisms.
Benefits:
-Locking and unlocking the fastener only requires a quarter turn or a push.
-Fasteners can be locked and unlocked in a matter of seconds - saving time and reducing costs.
-Vibration resistant - performs well in even the most intensive applications.
-Camloc Quick Release Fasteners are safe and easy to use.
-A comprehensive range of fastener styles available in many sizes.
Slotted Recess Head
Cross Recess Head
Fixed Wing Head
Star Formed Head
Wing Head
Knurled Head
Triangular Head
|
|
Camloc latches provide an adjustable, high-performance method ideal for securing machine and equipment parts that must be opened or removed frequently.
Benefits:
-Locking and unlocking the fastener is simple - simply clip / unclip the handle.
-Excellent tensile load carrying capacity - reducing the number of fasteners required.
-Tolerance adjustments through draw-hook mechanism - allows for variations in latch and strike proximity.
-Also available with secondary locking mechanism - increasing the vibration resistance.
Hex Head Slotted Recess
Hex Recess Head
Fixed Wing Head
Offset Fixed Wing Head
Folding Bail Handle
Folding Wing Head
|
|
|
|
