Steel fastener QCWES-B

corrosion-resistantthreaded

Product Overview

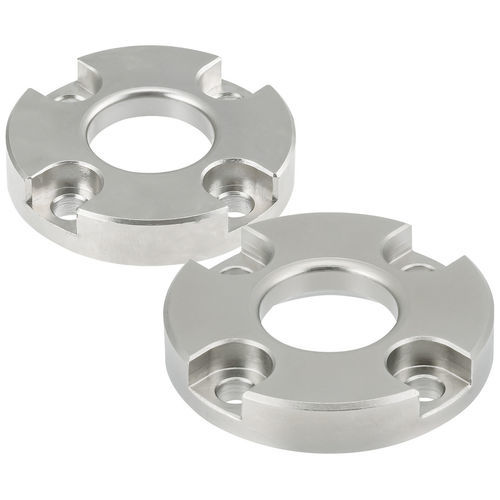

These receptacles are designed for use with heavy-duty QCWES and QCWESA ball-lock pins. Receptacles are mounted into a base plate using four socket-head cap screws (included). Manufactured from electroless nickel-plated 4135 steel, quenched and tempered for dimensional stability and wear resistance.

Available Part Options (table)
ID |SKU | Part Number | D mm | D1 mm | L mm | L1 mm | Dp mm | T Thread
151254 | QCWES1225-B | QCWES1225-B | 29 12 5.5 2.5 23 M3
151256 | QCWES1634-B | QCWES1634-B | 37 16 7.5 3.5 29 M4


Features / Technical specifications

• Compatibility: For use with QCWES and QCWESA ball-lock pins.
• Material: 4135 steel with electroless nickel plating.
• Heat treatment: Quenched and tempered.
• Mounting: Installed into a base plate with four socket-head cap screws (included).
• Available variants with dimensions and thread sizes: QCWES1225-B (D=29 mm, D1=12 mm, L=5.5 mm, L1=2.5 mm, Dp=23 mm, Thread=M3); QCWES1634-B (D=37 mm, D1=16 mm, L=7.5 mm, L1=3.5 mm, Dp=29 mm, Thread=M4).
