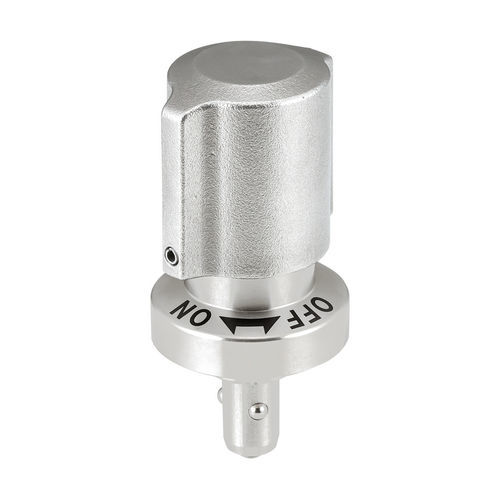

Stainless steel quarter-turn fastener QCWEA series

springwith wedgethreaded

Product overview
Retractable ball-lock fasteners QCWEA provide positive locking for quick-change applications where frequent insertion and removal of a fixture is required. The retractable pin allows the fastener to clear the base when unlocked, enabling slide and door applications without interference. The fastener is used with matching ball-lock receptacles; rotating the knob a quarter turn expands the balls to lock the fixture and returning the knob to OFF retracts the balls to permit removal without tools.

Key features

• Retractable pin design for interference-free removal
• Quarter-turn operation: balls expand to lock, retract when turned OFF
• Sensor detection capable when paired with Position Sensor Receptacles (QCWE-M-S)
• Body: 303 stainless steel; Knob: 304 stainless steel; Wedge, balls and spring: stainless steel
• Designed for quick-change fixtures, slides and doors with frequent insertion/removal

Part options (examples)

• QCWEA0625-10-SUS — Plate thickness 3–10 mm; Thread M2x0.4 (depth 3); D 6; D1 (h9) 14; D2 25; D3 25; Dp 28; L 19.5; H 58; H1 43.5; H2 6.5; Clamping force ≈ 6.7 Lbs; Holding force 20.2 Lbs; Use with: QCBU0608-M12, QCBU0608-M12SUS; Sensor receptacle: QCWE0625-M16-S, QCWE0625-M16-SL; Floating receptacle: QCBU0608-FL-SUS
• QCWEA1034-14-SUS — Plate thickness 3–14 mm; Thread M3x0.5 (depth 5); D 10; D1 (h9) 18; D2 34; D3 34; Dp 36; L 21.5; H 66; H1 50.0; H2 10.0; Clamping force ≈ 11.2 Lbs; Holding force 33.7 Lbs; Use with: QCBU1012-M16, QCBU1012-M16SUS; Sensor receptacle: QCWE1034-M20-S, QCWE1034-M20-SL; Floating receptacle: QCBU1012-FL-SUS

Applications

• Quick-change tooling and fixtures
• Slide and door assemblies requiring frequent removal without tools
• Production jigs where positive locking and repeatability are required

Technical specifications

• Model: QCWEA
• Type: Ball-lock fastener, retractable
• Body material: 303 stainless steel
• Knob material: 304 stainless steel
• Wedge, balls and spring: stainless steel
• Sensor detection capable when used with Position Sensor Receptacles (QCWE-M-S)
• Operation: quarter-turn locking; balls expand to lock and retract to allow removal without tools
• Example part variants and key dimensions/forces listed above
• Designed for use with matching receptacles (QCBU series, QCWE sensor receptacles, floating receptacle variants)
