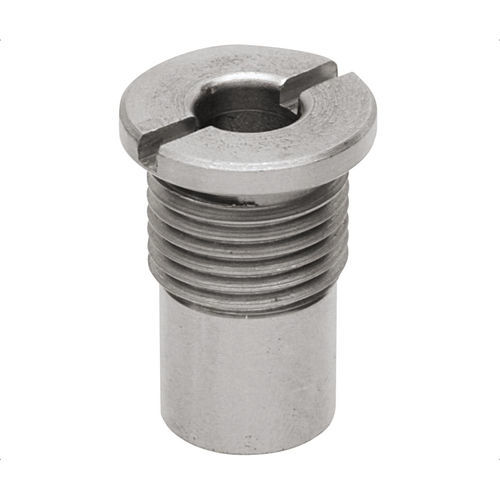

Threaded quarter-turn fastener QCBA series

Description
Receptacles for one-touch fasteners designed for quick-change applications with frequent insertion and removal. The three-ball locking mechanism secures the clamping pin (QCBA0816-M5) on insertion and ensures consistent clamping force to prevent under- or over-tightening by the operator. The standard QCBA style permits insertion and removal in a single operation and can be combined with locating pins for precise positioning. Body material is 1045 carbon steel with an electroless nickel plating. Fastening nuts (PN RBN-M16X150X006SS) are ordered separately. Recommended installation tool: PW16.

Product Types

• QCBA — Receptacles, steel body

Part Options

• QCBA0816A — Thread: M16 x 1.50 (fine), Clamping force: 1.57 lbs; Key dims: D=20 mm, D1=8 mm, D2=14 mm, L=29 mm, L1=15 mm, L2=3 mm, L3=2 mm, W=2.5 mm; Use with clamping pin QCBA0816-M5; Nut PN RBN-M16X150X006SS; Installation tool PW16.
• QCBA0816B — Thread: M16 x 1.50 (fine), Clamping force: 3.37 lbs; Key dims: D=20 mm, D1=8 mm, D2=14 mm, L=29 mm, L1=15 mm, L2=3 mm, L3=2 mm, W=2.5 mm; Use with clamping pin QCBA0816-M5; Nut PN RBN-M16X150X006SS; Installation tool PW16.

Features / Technical specifications

• Model / series: QCBA
• Body material: 1045 carbon steel
• Finish: electroless nickel plating
• Compatible clamping pin: QCBA0816-M5
• Thread: M16 x 1.50 (fine thread)
• Clamping force options: 1.57 lbs or 3.37 lbs depending on part
• Locking mechanism: three-ball ball-lock securing the clamping pin upon insertion
• Standard style: pin insertion/removal in one operation
• Can be used with locating pins for accurate positioning
• Stainless steel nuts for fastening ordered separately (PN RBN-M16X150X006SS)
• Recommended installation tool: PW16
• Key dimensions (from part data): D=20 mm, D1=8 mm, D2=14 mm, L=29 mm, L1=15 mm, L2=3 mm, L3=2 mm, W=2.5 mm
