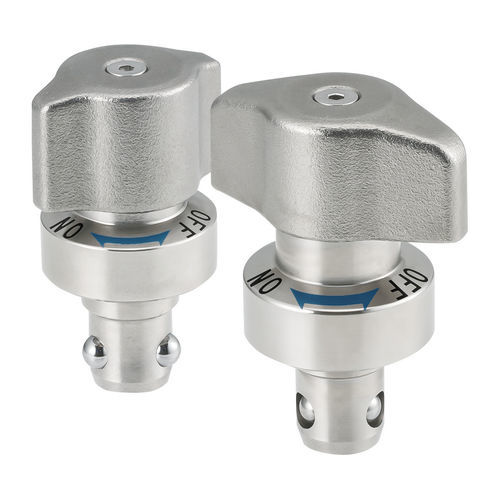

Quick-release fastener with ball bearing QCWES series

Description
These heavy-duty ball-locking pins provide secure locking in quick-change applications with frequent insertion and removal. The fastener pin mounts to the fixture while the matching ball-locking receptacle mounts to the base. Rotating the knob expands the balls to lock the fixture; turning the knob to "OFF" retracts the balls for tool-free removal. The tapered pin end facilitates alignment. Suitable for pairing with locating pins for accurate positioning.

Materials
Body: electroless nickel-plated 4140 steel.
Wedge: nickel-plated 4135 steel, quenched and tempered.
Knob: 304 stainless steel.
Balls: 440C stainless steel, quenched and tempered.

Product variants (table)

• QCWES1225-16S — Plate thickness 6–16 mm; Shank Ø 12 mm; Clamping force 225 lb; Holding force 560 lb; PN: QCWES1225-B
• QCWES1634-20S — Plate thickness 6–20 mm; Shank Ø 16 mm; Clamping force 450 lb; Holding force 1120 lb; PN: QCWES1634-B

Part Options

• Plate thickness (mm): 6 to 16; 6 to 20
• Shank diameter (mm): 12; 16
• Clamping force (lbs): 225; 450

Usage / Notes
Designed for use with matching ball-locking receptacles. Fastener pin mounts to the fixture; receptacle mounts to the base. Knob rotation expands balls to lock; turning knob to "OFF" retracts balls for removal. Tapered pin end aids alignment. Can be combined with locating pins for precise positioning.

Technical specifications

• Model: QCWES
• Type: Ball-lock fastener, heavy-duty, steel
• Maximum clamping force (by variant): up to 450 lbs
• Holding force (by variant): 560–1120 lbs
• Body material: Electroless nickel-plated 4140 steel
• Wedge material: Nickel-plated 4135 steel, quenched and tempered
• Knob material: 304 stainless steel
• Balls material: 440C stainless steel, quenched and tempered
• For frequent insertion/removal in quick-change fixtures
• Tapered pin end for easy alignment
• Requires matching ball-locking receptacles
