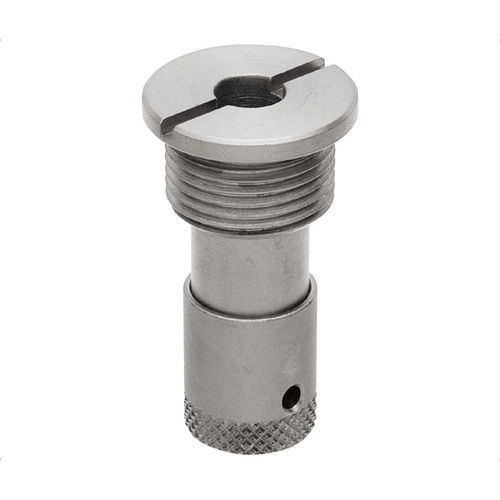

Manually-controlled clamping element QCBAS series

mechanicalmanualthreaded body

Product overview
These ball-lock receptacles QCBAS are designed for quick-change clamping with frequent insertion and removal. The three-ball locking mechanism provides consistent clamping force to avoid under- or over-tightening. The safety lock secures the balls in the receptacle to prevent accidental release; operate by pushing up the locking knob and rotating 90°.

Compatibility & use

• Use with clamping pin: QCBA0816-M5.
• Compatible with locating pins for precise positioning.
• Fastening nuts (RBN-M20X150X006SS) and installation tool PW16 are ordered separately.

Materials

• Body: 1045 carbon steel, electroless nickel plated.
• Balls: hardened 440C stainless steel.
• Springs: 304 stainless steel.

Parts / table
ID | SKU | Thread | D | D1 | D2 | L | L1 | L2 | L3 | Clamping Force (lbs) | Use with Clamping Pin | Use with Nut | Use Installation Tool
128508 | QCBAS0820A | M20x1.50 (fine thread) | 8 | 25 | 16 | 45 | 15 | 3 | 2.5 | 1.57 | QCBA0816-M5 | RBN-M20X150X006SS | PW16
128510 | QCBAS0820B | M20x1.50 (fine thread) | 8 | 25 | 16 | 45 | 15 | 3 | 2.5 | 3.37 | QCBA0816-M5 | RBN-M20X150X006SS | PW16

Notes
When engaged the safety lock prevents accidental release of the clamping pin. Intended for applications requiring repeatable, reliable quick-change clamping.

Specifications

• Model: QCBAS
• Thread: M20 x 1.50 (fine thread)
• Body material: 1045 carbon steel, electroless nickel plated
• Balls: hardened 440C stainless steel
• Springs: 304 stainless steel
• Operation: push up locking knob and turn 90° to engage safety lock
• Compatible clamping pin: QCBA0816-M5
• Referenced nut: RBN-M20X150X006SS
• Installation tool: PW16
• Available clamping forces (lbs): 1.57 (QCBAS0820A), 3.37 (QCBAS0820B)
