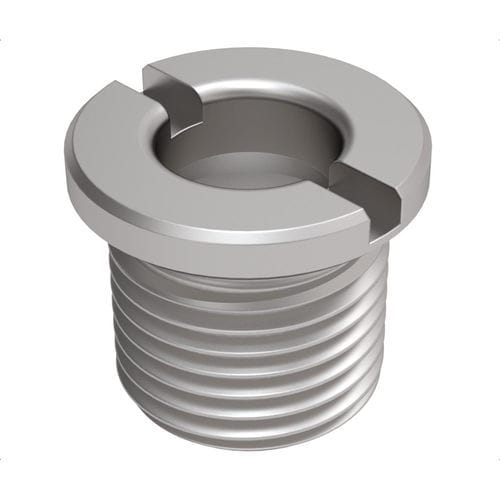

Stainless steel quick-release pin THFR series

Overview
These threaded receptacles provide a permanent mating hole for quick-release ball lock pins. They are designed to be installed by threading into a base with a lock nut or for blind-hole installations. Grip Length Reduction is the portion of the pin that is contained inside the receptacle and thus reduces the usable pin length by that amount. Manufactured from heat-treated 303 stainless steel. Lock nuts must be ordered separately.

Part variants

• THFR-187 — For 3/16 in pin; Thread: 3/8-16 in; D: .190 in; D1: .500 in; L: .500 in; L1: .125 in; L2: .094 in; W: .094 in; Grip Length Reduction: .125 in
• THFR-250 — For 1/4 in pin; Thread: 1/2-13 in; D: .250 in; D1: .625 in; L: .500 in; L1: .125 in; L2: .094 in; W: .094 in; Grip Length Reduction: .125 in
• THFR-312 — For 5/16 in pin; Thread: 5/8-11 in; D: .313 in; D1: .750 in; L: .625 in; L1: .125 in; L2: .094 in; W: .109 in; Grip Length Reduction: .125 in
• THFR-375 — For 3/8 in pin; Thread: 5/8-11 in; D: .375 in; D1: .750 in; L: .688 in; L1: .125 in; L2: .094 in; W: .109 in; Grip Length Reduction: .187 in
• THFR-500 — For 1/2 in pin; Thread: 3/4-16 in; D: .500 in; D1: .875 in; L: .813 in; L1: .125 in; L2: .094 in; W: .109 in; Grip Length Reduction: .250 in
• THFR-625 — For 5/8 in pin; Thread: 1-14 in; D: .625 in; D1: 1.125 in; L: .938 in; L1: .125 in; L2: .094 in; W: .109 in; Grip Length Reduction: .250 in

Related product types

• Use with ball lock pins, threaded, stainless steel
• Threaded-body receptacles (inch units shown)

Technical specifications

• Model: THFR
• Material: Heat-treated 303 stainless steel
• Intended use: Permanent mating hole for quick-release ball lock pins
• Installation: Thread into a base with a lock nut or install in a blind hole
• Grip Length Reduction: Amount of pin inside the receptacle (reduces usable pin length)
• Lock nuts: Must be ordered separately
• Available variants: THFR-187, THFR-250, THFR-312, THFR-375, THFR-500, THFR-625 (see part variants for dimensions)
