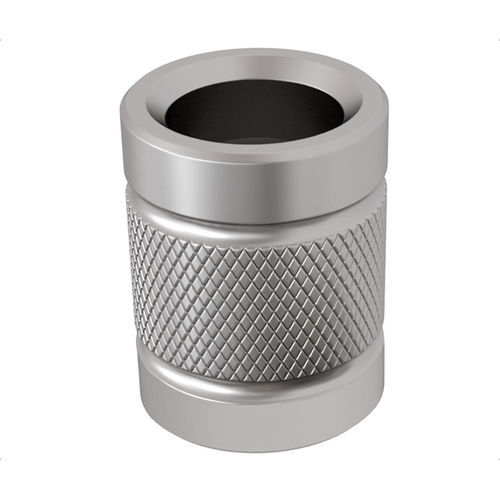

Cylindrical cap RC series

stainless steelwith threaded insert

Description
Receiver end caps fit over the end of quick-release ball lock pins to enable use when the receiving hole is out of tolerance or out of round. They replace cotter pins and hitch pins to allow quick, tool-free changes and field adjustments. Caps are manufactured from 300 series stainless steel. The Grip Length Reduction (H1) is the portion of the pin enclosed by the end cap and reduces the usable pin length by that amount.

Product Types

• RC — End Caps — Plain — Inch (fits on ball lock pins, stainless steel)
• RCT — End Caps — Tapped — Inch (tapped variant)

Parts Table
ID | SKU | Part Number | Use With Pin Diameter (in) | D (in) | H (in) | H1 Grip Length Reduction (in)
110071 | RC-187 | RC-187 | 3/16" | .375 | .580 | .125
110073 | RC-250 | RC-250 | 1/4" | .375 | .580 | .125
110076 | RC-312 | RC-312 | 5/16" | .500 | .625 | .125
110087 | RC-375 | RC-375 | 3/8" | .563 | .730 | .187
110089 | RC-500 | RC-500 | 1/2" | .750 | 1.000 | .250
110092 | RC-625 | RC-625 | 5/8" | 1.000 | 1.250 | .250

Characteristics / Technical specifications

• Series / Model: RC (plain end caps) — RCT (tapped option)
• Material: 300 series stainless steel
• Function: Receiver cap fits over quick-release ball lock pins to allow use when receiving hole is out of tolerance or out-of-round; replaces cotter pins and hitch pins for quick tool-free changes
• Available pin diameters (Use With Pin Diameter): 3/16", 1/4", 5/16", 3/8", 1/2", 5/8"
• Dimensions provided per part: D, H and H1 (Grip Length Reduction) as listed in the parts table above
• Grip Length Reduction: the length of pin enclosed by the end cap; reduces the usable pin length by the listed H1 value
