The environmentally friendly 10-wheeled forwarder concept meets the modern challenges of effectiveness and respecting the environment. The objective of the "Beating the challenge of peat land timber harvesting using conventional machines" project was to create a simple and reliable forest machine that leaps to a whole new level of environmental friendliness by introducing soft terrains with poor carrying capacity into the sphere of the forest economy.
The purpose of the co-operation project between Ponsse Oyj, Metsähallitus and Metla was to look for practical solutions that can be used to increase timber harvesting on peat soil when the soil is not frozen using machinery that is in general use. The development issues included:
1) equipping forest machines for soft soil,
2) adapting working with a machine to soils with poor carrying capacity,
3) developing on the design, and
4) improving the preconditions of wood harvesting companies.
The project included extensive testing in the terrain to compare the various track solutions. The track models to be tested were manufactured by Metsätyö Oy.
|
|
Having achieved enormous popularity, the BuffaloDual harwarder now welcomes a powerful little brother. The brilliant technical solutions of the BuffaloDual are now combined with the Wisent's lightness and agility in one power package: the WisentDual.
A rugged machine for final fellings - a lightweight machine for thinnings. Sound familiar? What if one could improve performance even more and still operate even more flexibly in the ever-changing conditions which face the contractor?
With the help of the WisentDual, you can substantially improve the return from less productive harvest sites, because you will achieve significant savings in capital, transport, maintenance and wear. The WisentDual is very suitable for harvesting small areas or stands with small-diameter trees. This frees the heavier machinery to work in more lucrative harvesting areas....
|
|
The Dual is both a harvester and a forwarder. Work is efficient and flexible because the transformation from forwarder to harvester or vice versa is quick: it takes less than ten minutes! Felling and driving can be planned and put into effect flexibly, taking into consideration the locations and distances between marked stands, the diameter and volume of the standing timber to be felled, and the workload of the contractor's other machines or machine teams. In this way, you can optimise the efficient use of machine capacity.
The interchangeable harvester head and grapple allow versatile use of the machines. The P0NSSE Dual is also excellent as a dedicated harvester or forwarder in a harvest machine team, helping you easily circumvent problems caused by overheated machines.
|
|
|
|
|
|
The Gremo forwarder 1350VT is equipped with a continously working and variable speed hydrostatic transmission called Gre- VT (Grevete). Gre- VT is another leap forward in technology that Gremo has been the first to introduce on forestry machines. The unique transmission cuts the working cycles and by that increases performance and profibility. The hydrostat pump drives two hydrostat motors mechanically connected to the cardan shaft via a gearbox.
The driver does not have to shift gear, but can select the speed range, either 0-11.8 km/h or 0-25 km/h. Driving position 1 has always both motors engaged. This position is selected, if the speed should not exceed 11.8 km/h. In driving position 2 both hydrostat motors are still engaged from start, but the larger of those two is disengaged automatically as soon as the speed exceeds 11.8 km/h. Engaging and disengaging are controlled by GreControl, a software developed by Gremo.
The unique feature with this system is the fact that the Gremo 1350VT is able to run at 0-25 km/h without being interrupted by gear shift and with maximum pulling force. Thus it is possible to start with maximum pulling force even in driving position 2 The pulling force amounts to fully 18.4 kN, and the system submits higher pulling force across the speed range.
|
|
|
John Deere's D Series forwarders are a fuel-efficient solution to moving the big loads day after day, no matter the distance. From the compact 810D and 1010D models, to the larger 1110D, 1410D, and 1710D - they perform with excellence in all conditions. With the D Series forwarders, you can expect high productivity, low daily operating costs, easy maintenance, and a comfortable ride.
|
|
Ponsse is introducing a new forwarder class to the market. The PONSSE ELK is a powerful forwarder with a carrying capacity of 13 tonnes. It is designed for extremely challenging terrain. Steep mountain sides, treacherous boulder deposits and heavy tree species require a forwarder with drive and load features that are not generally found in the middle size class. Now they are available!
Extreme ruggedness and maximum power are just two of the factors that make this new machine superior. The frame structure, centre joint design and excellent bogie dimensions ensure safe transport with a full 13 tonne-load. The PONSSE ELK comes equipped with either 6 or 8 wheels. The load space can be adjusted to fit all log sizes, and an adjustable front load gate facilitates carrying the different lengths. The extremely durable PONSSE K70+ and PONSSE K90, the most powerful loaders in their class, form the loader options.
|
|
|
|
|
|
The P0NSSE Gazelle, following in the tracks of its big brother the Wisent, now brings the most advanced forwarder technology on the market to the smaller, 10-tonne size class. The P0NSSE Gazelle's efficiency and reliability are based on smart use of the newest materials, highest-quality components and today's most sophisticated manufacturing technology. The Gazelle's compact and agile appearance hides the power within: Its efficient four-cylinder Mercedes-Benz diesel engine, powerful K70+ loader and large tractive force, combined with the modern OptiControl™ integrated control system, guarantee a level of effectiveness unprecedented in this size class.
Respect for Nature
The low net weight, tight turning radius, optimally shaped bunks and balanced weight distribution of the P0NSSE Gazelle mean that even harvesting sites with the most fragile natural environment can be treated gently and respectfully. The stable base machine and powerful loader also help the operator harvest wood from the maximum reach without harming the standing timber. Environmental friendliness can be viewed as one of the defining features of the Gazelle.
|
|
The P0NSSE Wisent is the answer to the wishes of the whole wood supply chain. Created to meet the needs of our customers and partners, the P0NSSE Wisent follows in the footsteps of the legendary P0NSSE S15 as a trailblazer in terms of both lightness and manoeuvrability.
The P0NSSE Wisent ushers in a new era in short-distance timber transport. Pressure on the ground is minimal, thanks to its unbeatable ratio of net weight to load-carrying capacity, the smallest turning radius in its size class, and dimensions which distribute the load evenly over all the wheels.
The tough Mercedes-Benz diesel engine now runs a larger pump than before, which in turn enables versatile and efficient loader use. Thanks to the Wisent's strong tractive force and outstanding cross-terrain properties, moving loads is fast and flexible. Moreover, the cab's superior ergonomics provide a pleasant work environment for even the most demanding user.
|
|
|
|
|
|
The Buffalo is equipped with durable bogie axles and wide balloon tyres. Its weight distribution across eight tyres lowers the ground pressure and reduces ground damage. This, combined with the Buffalo's excellent manoeuvrability, also makes it a good choice for thinning sites.
The Buffalo's strong K90 loader provides massive force for loading. The construction of the K90 loader is based on technical solutions which have proven reliable through the years. Its 10 metre reach and seamless control increase the machine's productivity. The loader's strength is especially suitable for work on sloping terrain and for processing large trunks.
In the design of the Buffalo, particular attention has been paid to the cooling and filtering of the hydraulic oil. A dedicated pump provides a continuous cooling and filtering cycle for the hydraulic oil, regardless of machine movements. Thanks to this system, the oil is kept extremely clean and the temperature remains optimal under all conditions. Minimising pressure loss throughout the system lowers fuel consumption even more.
|
|
|
|
|
|
Able to carry nearly its own weight in wood, the 18-tonne BuffaloKing offers its operator a luxurious cab, the powerful P0NSSE K100 loader, ample load space, an efficient and powerful Mercedes-Benz engine and a sturdy structure ready for the most demanding wood harvesting conditions.
The BuffaloKing is based on the P0NSSE Buffalo forwarder and its well-received, reliable technical solutions. This larger machine with 18-tonne load bearing capacity is built to be dependable and efficient without unnecessary extra weight. The extremely strong rear bogie receives most of the load's weight. Broad rear tyres with ample air space distribute the load weight evenly on varying terrain's, which means that ground contact pressure remains low even with heavy loads.
The BuffaloKing's hydraulics capacity has been increased more than 30% from that of the traditional Buffalo. Combined with the new, powerful K100 loader and the smart OptiControl control system, this offers the utmost efficiency and cost effectiveness, across the full length of its maximum reach of 9.5 metres. This machine has an impressive tractive force of 21 tonnes. Its similarity to the Buffalo guarantees easy parts availability and serviceability.
|
|
|
The new PONSSE Elephant 18 ton forwarder offers unforeseen size, speed and transport efficiency. The tractive force and torque of this powerhouse has been designed for extreme demands and conditions. Its superior performance can be seen best on steep slopes, deep snow, and soft terrain. Its moveable 6.25 m2 (67.3 sq ft) bunk, effi cient drive transmission and powerful crane ensures loads will be transported to roadside quickly and safely - regardless of the site conditions. The efficient hydraulic system operates the PONSSE Elephant's fast and fl exible crane....
|
|
Strong and reliable!
SMV Rapid is a large forwarder that loads 16 metric tons and is available in versions with 6 or 8 wheels. It has a low and strong frame design and axles with a large bogiemovement, which in combination with the large 30.5 inch wheels give
good ground clearance yet still a low centre of gravity on the load. The forwarder loader RK 90,which is designed for SMV Rapid, has a good reach and is quick and easy to operate as the forwarder has a well-dimensioned hydraulic system with large oil capacity. The loader is also available in a long loader version with a reach of just over 9 metres.
|
|

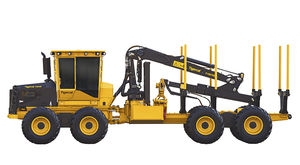

Tigercat builds four innovative forwarder models ranging incapacity from 12-20 tonne capacity. The 20 tonne 1075 is the industry's highest capacity forwarder. All Tigercat forwarders are designed and built for extreme duty applications.
Tigercat forwarders offer a number of advantages over competing machines, including tough construction, excellent cooling capacity and better stability when traveling and loading.
With Tigercat's unique centre section design, the 1065 and 1075 models do not require oscillation locks. All Tigercat forwarders are extremely stable and this allows the operator to reach out and pick up a load of logs while the machine in still in motion. This contributes to significant productivity gains. Other forwarder brands must have the oscillation lock in place in order to reach out over the side of the machine. When the oscillation lock is engaged the machine cannot travel and productivity decreases.
|
|

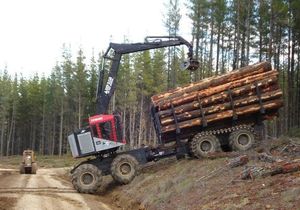

The TimberPro TF 830, TF 840 and TF 810 are the most versatile wheeled machines in the world today. The TimberPro line of machines come standard with 360° continuous rotation allowing the operator to always face his/her work. This feature also gives the operator the ability to remove
timber from 360° around the machine. Including the option to work over the front of the machine just as well as the sides and rear. TimberPro
machines have been proven effective in many other applications other than forwarding logs in the forest. Our machines can be used to move logs in mill yards, set mats in the pipeline industry, and most importantly as a combo machine equipped with a quick detach boom to allow conversion from a forwarder to a harvester in about 10 minutes.
|
|
ENGINE:
* Manufacturer: Cummins
* Model/Cyls: 6BTA5.9/6 cyls
* Max HP:174 @ 2500 RPM (129 kw)
* Flywheel HP: 155 @ 2500 RPM (116 kw)
POWER TRAIN:
* Transmission: Franklin P4-385; 4 speed Powershift
* Torque Converter: 13.7" (304 mm)-Wet
AXLES:
* Axles: Franklin F-320; Planetary, Heavy-Duty
* Differentials: Lock-in Lock-out Front, No-Spin Rear
BRAKES:
* Brakes, Service: Enclosed, multi-disc, wet brake
* Brakes, Parking: Spring applied, hydraulic release
|
|
ENGINE:
* Manufacturer: Cummins
* Model/Cyls: 6BTA5.9/6 cyls
* Max HP: 185 @ 2500 RPM (138 kw)
* Flywheel HP: 165 @ 2500 RPM (123 kw)
POWER TRAIN:
* Transmission: Franklin P6-410; 6 speed Powershift
* Torque Converter: 13.7" (304 mm)-Wet
AXLES: (15 Ton)
* Axles (Front): Franklin F-345; Planetary, Heavy-Duty
* Axles (Rear): Bogie w/F-4245; Planetary, Heavy-Duty
* Differentials: Lock-in Lock-out front and rear
|
|
|
|
|
|
Gremo 1050F is a further development of the successful forwarder 950F which has been market-leading in Sweden for over a decade in the "Small-Class-Forwarders". With the introduction of 1050F we grow one size which will make it more lucrative for you as the owner.
Underneath the bonnet you will find a powerful Cummins Engine with Common Rail system. The engine is stage-3 approved and has a torque exceeding 600Nm over a wide rpm-range. At the same time as the engine possesses these powers, it is also light, compact and quiet.
Of course, the forwarder is equipped with our inhouse-developed software GreControl. With GreControl you can modify a lot of functions depending on style of handling, type of crane and task. Hence you have the possibility to reduce fuel consumption and further increase the profit.
So, what is the 1050F most suited for? Thinning and timber are the main tasks for this flexible and strong forwarder. Wetlands are no obstacle - just add tracks to the tires and the machine will make it in the terrain without hassle.
|
|
Logset 5F is a compact 12-tonne forwarder that combines the best features of a small machine for thinnings with the final felling capacity.
The Logset 5F is the solution for difficult terrain and varied ground conditions. 5F is also easy to handle in thinning thanks to its excellent manoeuvrability. Its spacious cabin offers a comfortable operating environment for any discerning professional and excellent visibility in both drive and load modes.
- Weight: 14 500 kg
- Width (B): 2620/2780 mm (2780/3010 mm)
- Power: 125 kW @ 2200 rpm
- Tractive effort: 169 kN
|
|
The Logset 8F is the perfect combination of size and power. The machine is designed for final fellings and it has a strong frame and high tractive effort.
- Weight: 17 000 kg
- Width (B): 2950/3070 mm
- Power: 166 kW @ 2200 rpm
- Tractive effort: 190 kN
|
|
Logset 6F is a powerful 13-tonne forest machine with large load space, fast loader and efficient and well designed operation. This makes the 6F an ideal machine for continuous, heavy duty work.
The 6F is equipped with a 143 kW Sisu diesel engine. The spacious cabin offers a comfortable operating environment and excellent visibility. Thanks to its high tractive effort, the Logset 6F is capable of efficient operations even in soft and steep ground conditions.
- Weight: 16 000 kg
- Width (B): 2780/2950 mm
- Power: 143 kW @ 2200 rpm
- Tractive effort: 190 kN
|
|
Logset 4F is the smallest machine in the Logset forwarder range. This 10-tonne machine has been designed for thinning in dense forests. Due to its small size, it literally floats on wet ground with minimum impact.
The spacious cabin provides the driver a comfortable, technological environment and the equipment includes the Logset TOC control system. The 4F is both an economical and easily operated machine.
- Crane: Loglift 61 (7,2m or 10m)
- Control System: Sisu 44 CWA
- Weight: 13 500kg
- Width (B): 2460/2660 mm
- Power: 108 kW @ 2200 rpm
- Tractive effort: 135 kN
|
|
The 10F is a big 18-tonne machine. The flexible load bay can be widened by an extra 60 cm. The length of the load bay can be hydraulically extended by 70 cm.
- Weight: 22 000 kg
- Width (B): 3000 mm
- Power: 179 kW @ 2200 rpm
- Tractive effort: 200 kN
|
|
Prentice forwarders are designed for dependable production no matter the terrain or job situation.
Robust construction, proven Cat® diesel engines and reliable, high flow hydraulic systems give you the performance you need to get the job done.
Prentice forwarders have proven, over-sized components including heavy-duty axles and torque converter power shift transmissions. The spacious, comfortable operator stations are designed for exceptional visibility.
|
|
SOLID F14
Reliable and functional!
Solid F14 is a powerful forwarder with a load capacity of 14 metric tons and is available in 6 or 8 wheel models. The machine has a robust frame design with powerful articulated joint and integrated articulated frame lock. Superb stability is obtained as the wagon has large bogie pivoting angels, wide wheels and a load area with a low centre of gravity. The load area can easily be changed for different lengths of timber as the front gate and front bunks are moved hydraulically and the gate can also be raised.
|
|
SOLID F12 S
Articulated wagon!
Solid F12 S, that can have either 6 or 8 wheels, is designed as a conventional middle-sized forwarder, but which features unique steering of the wagon bogie giving unbeatable ability to twist and turn over diffi cult terrain, on narrow strip roads or through sharp turns. The articulated wagon can either be manoeuvred automatically connected to the articulated steering or manually with
separate steering.
|
|
TG88D is also available as a robust and highly productive eight-wheel drive forwarder with a versatile wood basket and the option of a telescopic stick or an hydraulic live heel on the loader to forward shorwood or long trees up to 10 meters. The TG88C shortwood forwarder provides the following advantages:
- Large 25 ton payload (22 680 kg).
- Low ground pressure.
- High stability and superior traction for increased slopeability.
- Strong, robust and fast loader equipped with a telescopic stick with 26 foot reach (7,9m).
- Large 67 square foot wood basket designed to maximise payload for various log lengths up to 35 feet long (10m).
|
|
|
Caterpillar forwarders load and remove heavy loads from the forest quickly with ample hydraulic flow, state-of-the-art controls, and high traveling speeds.
|
|
W130T
Weight and measures
- Length 7.790 mm
- Broadness 2.200 mm with 500 tires
- Height 2.760 mm
- Weight depending on the equipment approx. 6.500 / 9.300 kg
- Clearence underneath the gear case 450 - 580 mm
- Turn radius approx. 6,1 m
Engine
- Deutz 4-Cylinder water-cooled TCD engine
- Displacement 4.038 ccm
- 113 kW (154 DIN HP) at 2.300 U/min.
- electrical engine control (EMR)
- fuel tank approx. 145 l
Power transmission
- Hydrostatic traction drive electronically controlled
- 2-gear power divider with axle-interruption rear (W)
- front and rear axles are special-axles with planet power heads and in oil bath running fins-brakes
- differential pawl 100 %
|
|
W 210
Weights and measures
- Length 8.030 mm
- Broadness 2.400 – 2.800 mm
- Height 3.180 mmdepending on the tires
- Weight depending on the equipment approx. 16.000 kg
- Clearance underneath up to gear case up to 620 mm
- Turn radius approx. 500 mm
Engine
-Deutz 6-Cylinder water-cooled Turbo-Engine
- Displacement 7.150 ccm
- 173 kW (235 HP) at 2.300 U / min.
- Electrical engine control (EMR)
- Fuel tank approx. 180 l
Power transmission
- hydrostatic traction drive electronically controlled
- 2-gear power divider with axle-interruption rear (W)
- 6-gear ZF-Powershiftgear
- Front and rear axles are special axles with planet-power-heads and in oil bath running fins-brakes
- Differential pawl 100%, seperately for each axle switchable
|
|

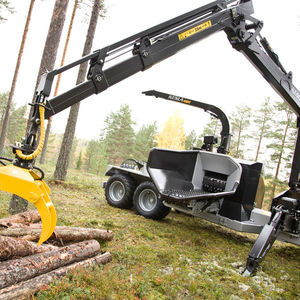

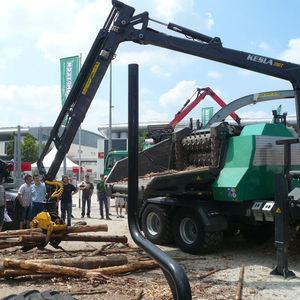

The Kesla forwarder cranes are of 4-7 tm and suit 6-12 tonne forwarders. The reach of the cranes varies between 6-10.3 m.
For skidders there are two R-models in the 7 and 12tm size categories.
Available accessories: timber grapples (F29), energy grapples (E15 and E20) e.g. for feeding the chipper and a comprehensive range of rotators.
|
|
|
|
