OC® Fabrics include Woven Rovings, High Performance Fabrics, Knitted Fabrics and Specialty Products and Tape. Each fabric has unique processing, mechanical and resin compatibility characteristics tailored to specific end-use applications. Molders use fabrics to produce high strength, structurally solid composite applications such as shipping containers, ballistic armor, wind generator blades and doors.
|
|
|
The versatility of glass as a fiber makes it a unique industrial textile material. Fiber glass in fabric form offers an excellent combination of properties from high strength to fire resistance. Wide ranges of yarn sizes and weave patterns provide huge number of design potential allowing the end user to choose the best combination for material performance, economics and product flexibility.
|
|
|
E-Glass products: Although we offer a 'standard product list', much of our production is for bespoke products specific to a customer. Please discuss your individual requirements with our technical sales team.
|
|
|
Texindustria® offers an extremely wide range of dry fabrics and tapes in carbon, aramid, HT polyethylene, E - S and R glass fibres, and unidirectional and multi-axial materials, as well as hybrid fabric such as carbon/glass, carbon/aramid, aramid/glass, polyethylene/glass.
|
|
|
OC® Knitted Fabrics are knitted layers of directional rovings either with or without a supporting chopped strand mat or veil. The layers are stitched together for better handling and dimensional stability during lamination. The precise alignment and positioning of the rovings give high tensile strength and a smooth surface finish in applications such as leisure boats.
|
|
|
Texindustria® offers an extremely wide range of dry fabrics and tapes in carbon, aramid, HT polyethylene, E - S and R glass fibres, and unidirectional and multi-axial materials, as well as hybrid fabric such as carbon/glass, carbon/aramid, aramid/glass, polyethylene/glass.
|
|
Designed for a wide range of applications, Taconic TFE-GLASS™ Fabric is available in several grades to match specific performance requirements. TFE-GLASS™ exhibits the following high-performance characteristics:
Non-stick surface
Excellent temperature resistance: from -100°F - +500°F (-73°C - +260°C)
Chemically inert
High tensile strength
|
|
|
E-Glass products: Although we offer a 'standard product list', much of our production is for bespoke products specific to a customer. Please discuss your individual requirements with our technical sales team.
|
|
|
E-Glass products: Although we offer a 'standard product list', much of our production is for bespoke products specific to a customer. Please discuss your individual requirements with our technical sales team.
|
|
|
Texindustria® offers an extremely wide range of dry fabrics and tapes in carbon, aramid, HT polyethylene, E - S and R glass fibres, and unidirectional and multi-axial materials, as well as hybrid fabric such as carbon/glass, carbon/aramid, aramid/glass, polyethylene/glass.
|
|
E-Glass products: Although we offer a 'standard product list', much of our production is for bespoke products specific to a customer. Please discuss your individual requirements with our technical sales team.
REINFORCING FIBRE SPECIFICATION
FIBRE TYPES: E-GLASS ROVINGS
AREAL WEIGHT: 598 GSM (±5%)
SIZE COMPATABILITY: POLYESTER / EPOXY / VINYLESTER FIBRE SPECIFICATIONS: 2400TEX & 300TEX
WIDTH: 1250MM (±5MM)
|
|
|
|
|
|
Glass fibre is one of the most versatile fibres. It has excellent mechanical properties, excellent resistance to fire, very thermal shrinkage levels to guarantee good dimensional stability at high and low temperatures, excellent resistance to chemicals and furthermore is available in a wide range of yarn counts enabling the final user to choose the best combination between light weight, resistance properties and price.
Glass fibre is a good isolation material, and does not absorb humidity, plus its low dielectricity constant renders it particularly suitable for electrical applications.
Glass fibres offer a good balance between the cost of the product and the performance levels requested, a high resistance to compression and excellent compatibility with resins. They can also be used in combination with fibres of carbon or para-aramid (hybrid fabrics), giving an excellent balance between properties, weight and a subsequent reduction of costs.
Characteristics of glass fibre
- Low cost
- High resistance to compression
- Easy to wet out with resins
- Availability of different types of glass depending on the application
- Higher weight compared to other fibres when used in composites
- Low Modulus of elasticity
|
|
|
Woven roving glass fabrics of KROSGLASS S.A. are produced on weaving looms from rovings ER 3003 and ER 3003 B. These rovings are made of glass fibers of alkali-free boron-aluminium-silica glass of type E (contents of alkali metal oxides less than 1%). The fabrics are made of direct roving having filament diameter 11 ÷ 22 µm (depending on linear mass of the roving used). Rovings with chemical active vinyl-silane or metacrylosilane coating are used in fabric production, thus enabling a direct application of fabrics in production of laminates (no additional operations of surface finishing off are required), and good polymer-to-glass adhesion is ensured.
|
|
|
OC® Woven Rovings are either single-end or multi-end rovings woven into fabrics for uses such as wall reinforcements and rib or laminate reinforcements. Compatible with most resins, woven rovings provide rapid wet-out and excellent dimensional stability during product handling. OC® Woven Rovings are made in a variety of assorted weave patterns for design flexibility and high strain values, and can be engineered for high impact-resistant applications.
|
|
| ... products without technical information |
| |
| ... products without technical information |
| |
|
|
|
|
ST 70FR - Fire Retardant Glass Structural SPRINT®
- Award winning SPRINT® matrix
- BS476 parts 6 & 7 - best possible “Class 0” Rating
- BS6853 Annex B2 - R = 0.90 - 1.20
- Low smoke toxicity
- Suitable for rail, marine and civil engineering structures
- Self extinguishing
- Halogen-free
- 70C Curable
- Suitable for Lloyds and MCA Compliant Structures
- Suitable for monolithic and sandwich structures
- Long outlife at room temperature
- Excellent laminate quality, from vacuum-only processing
- Fire retardant : meets FAR25.853 12 second & 60 second vertical burn
: meets MVSS 302
ST70FR is part of the range of SPRINT® products. This unique product range provides technically and commercially competitive engineering materials, ideal for use either solely, or in conjunction with other products from within the product range along with other SP products from Gurit.
ST70FR is a fire retardant hot melt, Diuron free epoxy SPRINT®. This is ideally suited to the manufacture of thick sections requiring fire protection. It can be cured at temperatures as low as 70°C, but can also be used for the rapid manufacture of components through its 25-minute cure at 120°C. All of this can be achieved together with an outlife of 28 days at 21°C.
ST70FR is designed for vacuum bag processing and offers excellent mechanical performance on glass fibre reinforcements. Currently ST70FR is manufactured into a Single Sided SPRINT® structure primarily with fibreglass reinforcements such as woven WRE581T, WRE850T fabrics and multiaxial XE905 and QE1174 stitched fabrics. Other styles will be available to order.
|
|
|
|
|
|
EP137
- Fiber reinforced thermosetting preimpregnated materials for aircraft parts(e.g.passenger floor).
- Woven fabric of E-glass filament yarn Style 0180, 48 g/m2, plain weave, preimpregnated with 40% epoxy resin EP137 (125°).
- Low-smoke, highly toughened and self-extinguishing epoxy resin system
- Very good FST behaviour
- Excellent adhesion to core materials
- Improved storage conditions at -5°C
EP137-03-40 consists of a E-glass fabric Style 0180, impregnated with the epoxy resin EP137. The highly-toughened resin matrix is a 125°C curing system with a high flameretardancy and low smoke behaviour at fire and provides excellent properties such as high interlaminar shear strength, adjustable tackiness and retarded flow during processing.
The prepreg is perfectly suitable to complement high performance light-weight composite structures meeting the highest requirements of structural interior applications as such as the passenger floor where it is used as a top layer to avoid electro-galvanic corrosion of carbon structure with aluminium and improve overall impact behaviour of the panels.
Both monolithic and sandwich structures can be easily manufactured with this prepreg. The curing can be performed by press, vacuum and autoclave moulding at a temperature range between 120°C and 155°C and a pressure of at least 0.07 MPa.
Such composite structures can be exposed easily to temperatures in the range of -55°C up to +90°C.
|
|
|

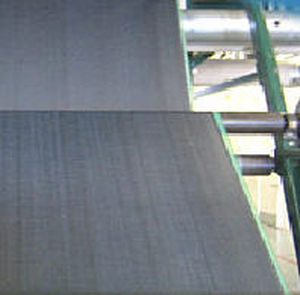

L-501 is a 250°F (121°C) curing, high peel strength, flame retardant, epoxy prepreg available on fiberglass fabrics such as 7781 style or other styles as requested. L-501 is intended to be used as a single ply or multiple ply skin for aramid/phenolic honeycomb, aluminum honeycomb or PVC foam core sandwich panels.
|
|
Nelcote Advanced Composite Prepregs
> Global manufacturing and supply chain management experience - Park's 50 years in Advanced Materials
> Structural design databases, including FAA accepted AGATE design allowables for key composite materials
> Nelcote composite materials are available in a variety of reinforcements and product forms including broadgoods, unidirectional tapes, biased tapes and molding compounds
> A broad range of resin chemistries are available including epoxy, polyester and phenolic resins
> Customer focused company with a history of proven successes with large and small customers
> Quality Management System Based on ISO 9002 and AS 9000 standards and procedures
> Extensive technical, research and development resources
|
|
Nelcote Advanced Composite Prepregs
> Global manufacturing and supply chain management experience - Park's 50 years in Advanced Materials
> Structural design databases, including FAA accepted AGATE design allowables for key composite materials
> Nelcote composite materials are available in a variety of reinforcements and product forms including broadgoods, unidirectional tapes, biased tapes and molding compounds
> A broad range of resin chemistries are available including epoxy, polyester and phenolic resins
> Customer focused company with a history of proven successes with large and small customers
> Quality Management System Based on ISO 9002 and AS 9000 standards and procedures
> Extensive technical, research and development resources
|
|
| ... products without technical information |
| |
|
|
