Globe and control valves
DN 4 – 150, globe valves and angle seat globe valves, valve bodies in stainless steel, cast bronze, cast iron, cast steel, PVC-U, connections to DIN, ISO, BS (butt weld spigots, flanges, male and female threads), seal materials: PTFE, Peek, steel-steel, manual, pneumatic and motorized operators, complete control valves available, control fittings and regulating cones, to be combined with and controlled via GEMÜ positioners and process controllers
|
|
Pipeline Isolation Valves for a Wide Range of Process Applications. Valves can be fitted with Actuation. Valves can be supplied in Straight or Angle Pattern. Hopkinsons range of globe valves offers a choice of configuration for stop/regulating, check, and combined stop and check duties
Features / Benefits
Isolation/Control
General purpose isolation stop valves
Steam/Fluid isolation achieved by the screwdown action of the Valvehead to the Seat Straight and Angle Pattern Design
Applications
General purpose, isolating and blowdown
Main steam stop and non-return valves (shell boilers)
Check feed version (shell boilers)
General drain duties
Double isolation drain duty as ‘martyr‘ valve
With parabolic valve head for precise flow control
Continuous blowdown (micrometer valve)
|
|

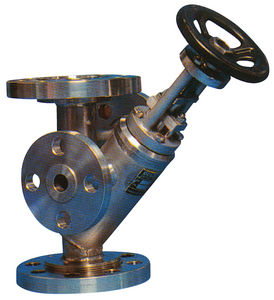

A Y-Globe valve is an in line valve that is typically used to isolate or control medium flow.
Y Globe valves offer the perfect balance between flow and sealing requirements. The flow control characteristics are much better than a globe valve, while the zero leakage sealing performance far excel that of a ball valve.
It can be provided as a standard Y Globe valve or as a special control valve for severe service applications. They are widely used in Plastic and Polymer Industry as well as control variants in the Petrochemical, Chemicals, mineral processing and Refining industries.
The SchuF Y Globe valve is unique in respect of its flexibility, high Cv and reliable performance.
|
|
Manual Globe Valves
Size range : DN6 - DN300 1/4" - 12"
Pressure rating : CL150, CL300, PN45, PN50
End connections :Screwed, flanged, Socket weld / butt weld, stubs
Configurations :Bolted bonnet, union bonnet, cone seat. Extended and non- extented stem
Materials :Bronze, gunmetal, austenitic stainless steel
Bestobell has a wide range of high performance globe valves available in Bronze or Stainless Steel in a variety of end connections. Bestobell’s unique headworks design which incorporates a bolted bonnet and integral cone seat to give smoother operation and reduced operating torques which all aid an extended leak free life. Extended spindle valves are available for liquid service, along with standard spindle lengths for use on ambient gas requirements. All materials used are selected for their suitability to function at cryogenic temperatures. All valves are cleaned and degreased for oxygen duty.
|
|
Type:
Gate valve
Globe valve
Check valve
Ball valve
Nominal Sizes range: DN50 (2”) to DN500 (20”)
Pressure rating range: Class 150 to Class 2500
End connections: flanges, socket welding,…
Design: according standard
|
|
APPLICATION:
To control the flow of Hot Liquids, Hot Gases, Cryogenics** and any other fluids not reactive with construction materials and free of sediment. Cryogenic fluids include Liquid Oxygen (-297°F), Liquid Argon (-303°F) and Liquid Nitrogen (-320°F). Valve operates from zero to maximum differential pressure indicated in table. Valve must be mounted in horizontal pipe with solenoid enclosure vertical and on top.
OPERATION:
Valve closes when energized and opens when de-energized. When the coil is energized the plunger presses the poppet, closing the pilot orifice, and opens a bleed passageway to permit pressure to build above the piston and seal it. Upon de-energizing the coil, the pilot orifice is opened, relieving the pressure above the piston allowing it to leave its seat. The bottom spring allows the valve to operate at zero pressure drop.
|
|
APPLICATION:
To control the flow of Corrosive Fluids, Deionized Water, Condensate, Ammonias, Vegetable Oils, Fuel Oils, Cryogenics**, Flammable Liquids. Cryogenic fluids include liquid oxygen (-297ºF), liquid argon (-303ºF) and liquid nitrogen (-320ºF). Valve operates from zero to maximum differential pressure indicated in table. Valve must be mounted in horizontal pipe with solenoid enclosure vertical and on top.
OPERATION:
Valve opens when energized and closes when de-energized. When the coil is energized the pilot valve opens, relieving the pressure above the piston, which is then lifted from its seat by the plunger. Upon de-energizing the coil, a spring closes the pilot valve and opens a bleed passageway to permit pressure to build above the piston and seat it.
|
|
V-Series Two-way and Three-way Globe Valve Bodies
The high quality V-Series two-way and three-way globe valves are manufactured to exact specifications and are designed to provide years of reliable service. The assemblies are designed for heating/cooling applications using steam, water, glycol or other non-corrosive fluids. The V-Series assemblies should not be used with combustible fluids such as natural gas. The V-Series products are available as complete assemblies but most users purchase the bodies, actuators and linkages separately for convenient local assembly.
Features
- Heating and cooling applications for non-corrosive fluids
- Steam and hot water flow control
- Complete valve assemblies or components available
- Electric actuators and linkages
- Two-way flow and three-way mixing and diverting valves
- 1/2" to 6" valve sizes
|
|
Features
* High flow capacity & rangebility
* Large type of trim designs for various duty conditions
* Top opening for easy trim inspection without disturbing the piping.
* Tight closure even in extreme operating conditions
* Designed and tested to deliver 100% performance under specified operating conditions
* Wide selection of actuators to meet most requirements
|
|
2-Way & 3-Way
Screw & Flanged Style Bodies for Temperature Controls & HVAC, Hot Water, Steam & Chilled Water
|
|
Globe Valves, PN16
Bronze body, screwed topwork in brass
Part No. 03021.X.0160
Part No. 03021.X.5160 Globe/Check Valve
Flanged connection acc. to DIN EN 1092-1 PN16
Applications:
Suitable for non-toxic, non-inflammable fluids, gases and vapours.
The laws, regulations and standards are to observe for the range of application.
Working temperatures and pressures:
up to max. 16.0 bar: -10°C / +14°F (263K) up to +80°C / +176°F (353K)
up to max. 10.0 bar: -10°C / +14°F (263K) up to +120°C / +248°F (393K)
up to max. 6.0 bar: -10°C / +14°F (263K) up to +160°C / +320°F (433K)
|
|
21000 Series
Masoneilan's 21000 Series control valve is a heavy top guided globe valve design featuring noise attenuation and anti-cavitation trim options. It is the most versatile single ported control valve on the market today, well suited to handle a wide variety of process control applications.
41005 Series
Masoneilan's 41005 Series control valve is a cage-guided globe valve design with balanced trim configurations. This product line is engineered to efficiently handle demanding process conditions, including applications with high-pressure drops and large temperature variations.
|
|
GLOBE VALVE,
SS316/304/WCB BODY,
FLANGED END OR THREADED END,
PRESSURE PN16/40, ANSI150/300 OR
200WOG
|
|

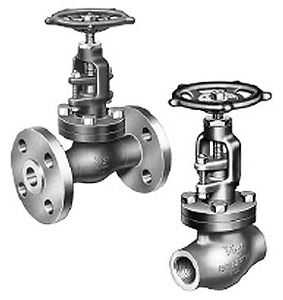

Flowserve's Vogt Globe and Angle valves are suitable for throttling as well as shut-off. They are customarily installed so that the media pressure and preferred flow direction is under the disc. Flow above the disc is also accecptable.
Vogt Globe Valves are available with a variety of bonnet types, body and trim materials and stem packings in addition to a broad range of pressure classes, and end connections including extended bodies.
Our facility is qualified under the most stringent ISO 9001 quality standards and European Pressure Equipment Directive and meets specifications including ASME B16.34, API602 and NACE.
Features
* Quick Lead Times
* Valves for services including: Nuclear, Alkylation, Sour Service, Cryogenic, Low Temp. and more.
* Qualified under the ISO 9001 Quality System & European Pressure Equipment Directive
* Hard Faced Seats
* Spiral Wound Gasket or Bellowseal
* Bolted Bonnet or Seal Weld Bonnet
|
|
31000 Series
Masoneilan's 31000 Series control valve is a PFA lined assembly designed for corrosive applications. It features an eccentric rotary plug design that provides tight shut off and low dynamic forces.
35002 Series Camflex®
Masoneilan's 35002 Series is the original "universal" control valve, featuring a low friction eccentric plug design, providing excellent throttling control within an extremely compact assembly. The standard design includes an integral bonnet, a direct mounted actuator, and fully enclosed positioner linkage.
|
|
Description:
The Becker Series CVE & 41005 Globe Valve Regulator’s innovative design makes it among the most versatile natural gas contral valves in the world. Its cage-guided design utilizes multi-interchangeable trim styles, eliminating the need to change body styles. The Becker Globe valve is available with balanced or un-balanced trim for natural gas regulating applications such as pressure and flow control. Body styles provide a choice of flanged, buttweld, or threaded valve end connections.
|
|
