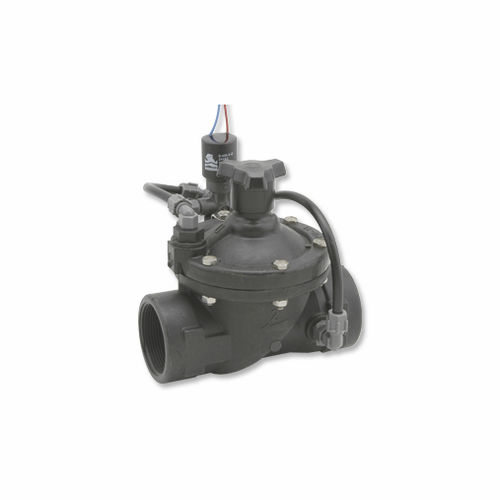

Pilot-operated solenoid valve 210-3W-NC-M

3-wayhydraulicplastic

Product Overview

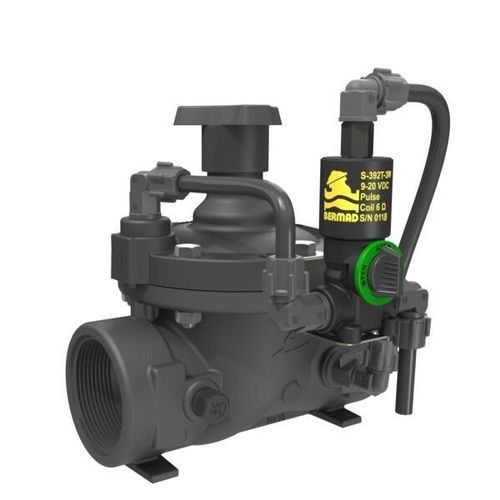

The BERMAD Solenoid Controlled Valve IR-210-3W-X is a hydraulically operated, diaphragm-actuated control valve that opens and closes in response to an electric signal. This valve is designated for irrigation use only; the manufacturer's warranty applies only when used as intended.

Features & Benefits

• Line pressure drive, hydraulically controlled
  • Hydraulic pressure control by solenoid
  • Line-pressure driven
  • Electrically controlled On/Off operation
  • Suitable for remote and/or elevated systems
• Composite hydro-efficient globe valve
  • Unobstructed flow path
  • Single moving part
  • High flow capacity designed for efficient irrigation
  • Durable; resistant to chemicals and cavitation
• Unitized flexible diaphragm and guided plug
  • Excellent low-flow regulation performance
  • Prevents diaphragm erosion and distortion
• Fully supported & balanced diaphragm
  • Requires low actuation pressure
• User-friendly design
  • Simple in-line inspection and service

Typical Applications

• Automated irrigation systems
• Distribution centers
• Landscape irrigation
• Low-supply-pressure irrigation systems

Additional Features

• M : Flow stem
• 5 : Plastic test point
• Z : Manual selector

Specifications

• Model (commercial designation): IR-210-3W-X
• Series: 200 Series (IR-200 family)
• Drive / Control: Line pressure driven, hydraulically controlled by solenoid (electrically actuated On/Off)
• Valve design: Composite hydro-efficient globe valve with unobstructed flow path
• Flow capacity: High flow capacity for irrigation applications
• Moving parts: Single moving part (unitized flexible diaphragm and guided plug)
• Diaphragm: Fully supported and balanced — low actuation pressure required
• Materials / Durability: Durable composite construction; resistant to chemicals and cavitation
• Performance: Excellent low-flow regulation; prevents diaphragm erosion and distortion
• Serviceability: Simple in-line inspection and service
• Options / Configurations: Flow stem (M), Plastic test point (5), Manual selector (Z)
• Intended use: Designated for irrigation use only
