Electromagnetic flowmeter IR-M10

volumefor waterpolyamide

Overview

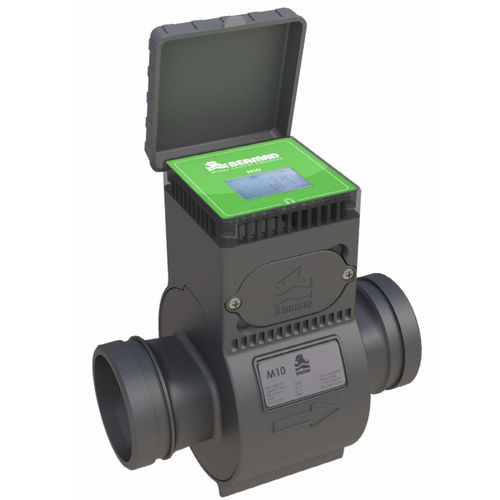

M10 is an electromagnetic flow meter grooved sensor covering diameters from DN50 to DN150. It provides compact dimensions and light weight to enable precise and repeatable measurement of low and high flow rates, including in applications with suspended solids. The M10 sensor operates on the Faraday principle: coils located on the top and bottom of the composite flow tube generate a magnetic field; the conductive fluid crossing this field induces a voltage in the electrodes proportional to flow rate.

Product highlights

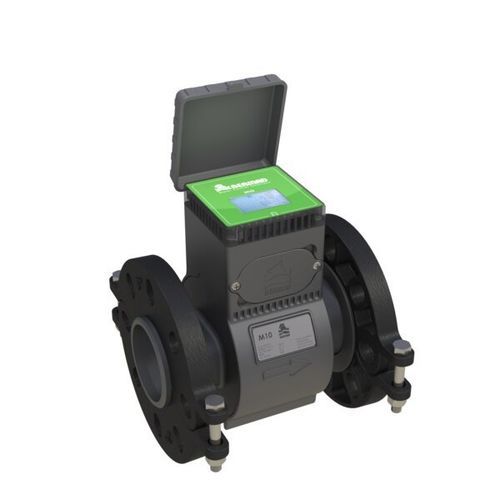

• Split flanged configuration
• Grooved connection for versatile installation
• Bluetooth and Modbus communication
• Dual pulse outputs
• Lightweight composite construction

Features & benefits

• No moving parts — minimal maintenance
• Grooved connection fits many installation standards
• Long-term stability and precision; often no filter required
• Lightweight, compact design for installations with limited space
• Accurate measurement at both high and very low flow rates
• Bi-directional measurement capability
• Internal components protected by a bi-component resin for increased resistance to external agents
• Wide measurement range suitable for diverse applications

Typical applications

• Irrigation systems
• District metering of potable water
• Water distribution networks
• Installations in confined spaces without long straight runs
• Processes with very low or very high flow rates and applications with suspended solids

Technical specifications

• Model: M10
• Series: EFM Series
• Sensor type: Electromagnetic (Faraday principle)
• Nominal diameters: DN50 to DN150
• Connections: Split flanged; grooved options
• Communications: Bluetooth; Modbus
• Outputs: Dual pulse outputs
• Construction: Lightweight composite flow tube
• Protection: Internal parts protected by bi-component resin
• Maintenance: No moving parts; minimal maintenance
• Measurement: Bi-directional; accurate across wide flow range including low flows
• Internal code / barcode: 572143
• Documentation: Product sheet (metric/imperial), IOM manual, CAD files available
