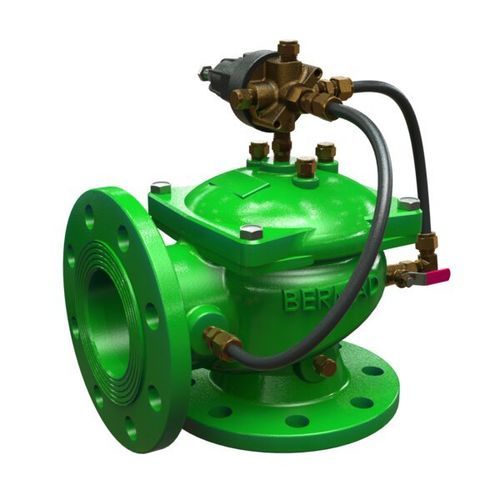

Hydraulically-operated relief valve IR-43Qdiaphragmquick
Add to favorites
Compare this product
Characteristics
- Other characteristics
- diaphragm, hydraulically-operated, quick
- DN
Max.: 100 mm
(3.937 in)Min.: 40 mm
(1.575 in)- Weight
Max.: 26 kg
(57.32 lb)Min.: 2 kg
(4.41 lb)
Description
Product Overview
The BERMAD Quick Pressure Relief Valve IR-43Q-2W-R is a hydraulically operated, diaphragm-actuated control valve that relieves excessive line pressure when it rises above the preset maximum. It responds immediately and with high repeatability by opening fully and provides smooth, drip-tight closing.
Hydraulic Pressure Control
Advanced Hydro-Efficient Globe Design
Fully Supported & Balanced Diaphragm
User-Friendly Design
Typical Applications
Additional Features
Technical Specifications
The BERMAD Quick Pressure Relief Valve IR-43Q-2W-R is a hydraulically operated, diaphragm-actuated control valve that relieves excessive line pressure when it rises above the preset maximum. It responds immediately and with high repeatability by opening fully and provides smooth, drip-tight closing.
Hydraulic Pressure Control
- Line-pressure driven for autonomous operation
- Long-term drip-tight sealing
- Stable setting over time
- Wide setting range to suit system requirements
- Tight setting window with minimal hysteresis
Advanced Hydro-Efficient Globe Design
- Unobstructed flow path reduces turbulence and pressure loss
- Single moving part simplifies maintenance
- High flow capacity for rapid pressure relief
Fully Supported & Balanced Diaphragm
- Requires low opening and actuation pressure
- Progressively restrains valve closing for controlled shut-off
- Prevents diaphragm distortion to ensure longevity
User-Friendly Design
- Easy pressure setting for fast commissioning
- Simple in-line inspection and service to reduce downtime
Typical Applications
- System burst protection
- Momentary pressure peak elimination
- System failure visual indication
- Filter burst protection
Additional Features
- F : Large control filter
- I : Position indicator assembly
Technical Specifications
- Model: IR-43Q-2W-R
- Series: 400 Series
- Product type: Quick Pressure Relief Valve
- Operation: Hydraulically operated, diaphragm actuated
- Main function: Relieves excessive line pressure above preset maximum; immediate, accurate response; full opening and smooth drip-tight closing
- Design highlights: Hydro-efficient globe design; unobstructed flow path; single moving part; high flow capacity
- Diaphragm: Fully supported and balanced to minimize actuation pressure and prevent distortion
- User aspects: Easy pressure setting; simple in-line inspection and service
- Typical sector: Irrigation (primary segment)
- Additional documentation: product PDFs, installation & operation manual (IOM), spare parts list, engineering and ordering guide
