Globe valve IR-22T-55-2W

hydraulically-operatedelectrically-actuatedon/off

Overview

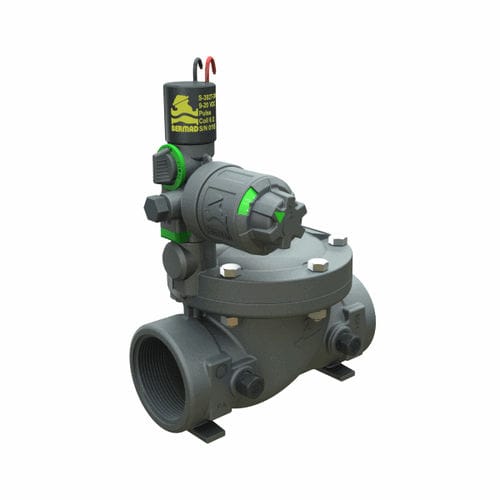

The BERMAD Top Pilot Pressure Reducing Control Valve with 2-way solenoid control (model IR-22T-55-2W) provides compact, high-performance pressure reduction for irrigation systems. It reduces higher upstream pressure to a calibrated constant downstream pressure regardless of flow fluctuations and opens when line pressure drops below the setting. The valve is line-pressure driven and hydraulically controlled; it opens and closes in response to an electric signal when solenoid control is used.

Key Features & Benefits

• Line pressure driven, hydraulically controlled On/Off
  • Protects downstream systems
• 2-way integrated pilot — user-friendly design
  • Adjustment knob with high-resolution scale enables easy calibration without a pressure gauge
  • Compact box-size solution
  • Internal self-cleaning control — no external tubes
  • Solenoid control can be added or removed easily
• Smooth valve opening and closing
  • Accurate and stable regulation
  • Low operating pressure requirements
• Composite hydro-efficient globe valve
  • Unobstructed flow path
  • Single moving part
  • High flow capacity
  • Durable, chemical- and cavitation-resistant materials
• Unitized flexible diaphragm and guided plug
  • Excellent low-flow regulation performance
  • Prevents diaphragm erosion and distortion
• Fully supported & balanced diaphragm
  • Requires low actuation pressure

Typical Applications

• Automated irrigation systems
• Systems subject to varying supply pressure
• Plot valves in drip and sprinkler irrigation systems
• Energy-saving irrigation systems

Additional Features

• Plastic test point provided

Usage Note
This valve is designated for irrigation use only; manufacturer warranty is limited to the permitted use only.

Characteristics / Technical Specifications

• Model designation: IR-22T-55-2W
• Product family / series: 200 Series
• Segment: Irrigation
• Operation: Line-pressure driven, hydraulically controlled
• Pilot: 2-way integrated pilot with high-resolution adjustment knob (plug & play)
• Control options: Built-in pilot; optional 2-way solenoid control (easily added or removed)
• Valve type: Composite hydro-efficient globe valve, single moving part
• Flow path: Unobstructed
• Diaphragm: Unitized flexible, guided plug; fully supported & balanced
• Performance: Accurate, stable regulation with excellent low-flow response
• Durability: Chemical- and cavitation-resistant materials
• Test point: Plastic test point provided
• Intended use: Irrigation systems (not for other uses)
• Manufacturer: BERMAD
