Regulating valve IR-450-60-R
globehydraulically-operatedfloat

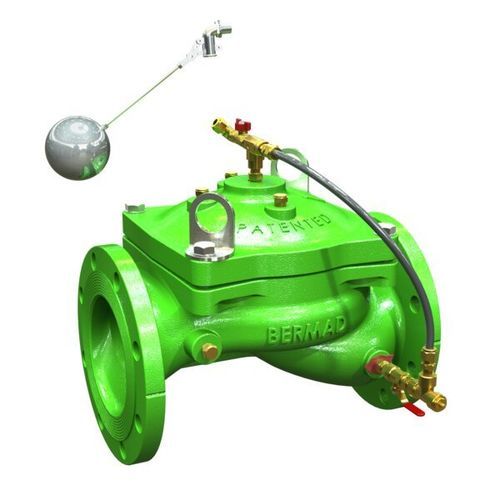

Regulating valve - IR-450-60-R - BERMAD CS Ltd - globe / hydraulically-operated / float
Regulating valve - IR-450-60-R - BERMAD CS Ltd - globe / hydraulically-operated / float
Regulating valve - IR-450-60-R - BERMAD CS Ltd - globe / hydraulically-operated / float - image - 2
Add to favorites
Compare this product

Characteristics

Type
globe
Operation
hydraulically-operated, float
Function
mixing, level control, regulating
Media
for water
Body
in-line
Material
stainless steel
Other characteristics
actuated, modulating
DN

Min.: 80 mm
(3.15 in)

Max.: 400 mm
(15.748 in)

Pressure

Min.: 0.5 bar
(7.3 psi)

Max.: 16 bar
(232.1 psi)

Description

Overview
The BERMAD Model IR-450-60-2W-R Level Control Valve with Modulating Horizontal Float is a hydraulically operated, diaphragm-actuated control valve. The valve hydraulically controls reservoir filling to maintain a constant water level regardless of fluctuating demand.

Main Model / Identification
  • Model: IR-450-60-2W-R
  • Series: 400 Series
  • Product type: Level Control Valve
  • Control: 2-Way control with modulating hydraulic float
  • Float orientation: Horizontal
  • Control accessories: Metal


Features & Benefits
  • Line pressure driven, hydraulically controlled
  • Modulating hydraulic float control
    • "Always Full" reservoir operation
  • Advanced hydro-efficient globe design
    • Unobstructed flow path
    • Single moving part
    • High flow capacity
  • Fully supported & balanced diaphragm
    • Requires low opening and actuation pressure
    • Excellent low-flow regulation performance
    • Progressively restrains valve closing
    • Prevents diaphragm distortion
  • External installation
    • Easy access to valve and float
    • Less wear and tear
    • Simple in-line inspection and service


Typical Applications
  • Large surface-area reservoirs
  • Low-volume reservoirs
  • Locations without available power supply
  • Fertilizer mixing tanks


Additional Features
  • F: Large control filter
  • I: Position indicator assembly


Technical specifications
  • Model: IR-450-60-2W-R
  • Series: 400 Series
  • Product type: Level Control Valve
  • Control type: 2-Way modulating hydraulic float
  • Float: Horizontal
  • Control accessories: Metal
  • Operation: Line pressure driven, hydraulically controlled, diaphragm actuated
  • Design highlights: Hydro-efficient globe design; unobstructed flow path; single moving part; high flow capacity
  • Diaphragm: Fully supported & balanced for low actuation pressure and improved low-flow regulation
  • Installation: External installation for easy access and simple in-line inspection/service
  • Typical applications: Reservoirs (large surface area and low volume), locations without power supply, fertilizer mixing tanks
  • Additional options: Large control filter (F), position indicator assembly (I)
  • Internal product ID / barcode: 26361
