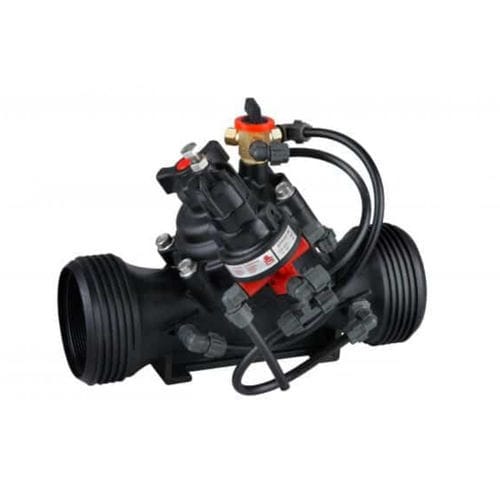

Diaphragm valve IR-120-Zb

hydraulically-operatedregulatingpressure-control

Overview The BERMAD IR-120-Zb is a hydraulically operated, diaphragm-actuated pressure reducing valve designed to convert higher upstream pressure into a very low, stable preset downstream pressure. It maintains consistent downstream pressure regardless of demand fluctuations or upstream pressure variation and is optimized for drip-tape irrigation and in-field control heads.

Features and Benefits

• Line-pressure driven, hydraulically controlled
  • Protects downstream irrigation components and emitters
• Pressure-reducing servo pilot
  • Dynamic integrated needle valve for precise modulation
  • Settable as low as 0.5 bar (7 psi)
  • Very low hysteresis for stable regulation
• Engineered composite valve with industrial design
  • Durable, chemical- and cavitation-resistant construction
  • No internal bolts or nuts reduces risk of corrosion and failure
• hYflow 'Y' valve body with "Look Through" design
  • Ultra-high flow capacity with low pressure loss—suitable for long drip lines
• Unitized Flexible Super Travel (FST) diaphragm and guided plug
  • Accurate, stable regulation with smooth closing
  • Requires low opening and actuation pressure; prevents diaphragm erosion
• Simple in-line inspection and service

Typical Applications

• Drip-tape (drip-line) irrigation systems
• Low set-pressure irrigation zones
• Low supplied-pressure distribution networks
• Energy-saving irrigation schemes

Additional Features

• M : Flow stem (excludes sizes 4"L, 6"R)
• 5 : Plastic test point
• Z : Manual selector
• V3 : Victaulic PVC adaptors 3"
• V4 : Victaulic PVC adaptors 4"

Technical Specifications

• Brand: BERMAD
• Model: IR-120-Zb
• Series: 100 Series
• Product type: Pressure Reducing Valve, hydraulically operated, diaphragm-actuated
• Segment/Application: Irrigation (drip-tape and in-field control heads)
• Operation: Hydraulically operated
• Pilot type: Pressure-reducing servo pilot with dynamic integrated needle valve
• Settable downstream pressure: as low as 0.5 bar (7 psi)
• Valve body design: hYflow 'Y' Look Through for ultra-high flow and low pressure loss
• Diaphragm: Unitized Flexible Super Travel (FST) with guided plug
• Materials: Engineered composite; chemical- and cavitation-resistant; no internal bolts/nuts
• Serviceability: Simple in-line inspection and service
• Options: M, 5, Z, V3, V4
• Internal reference / barcode: 127438
