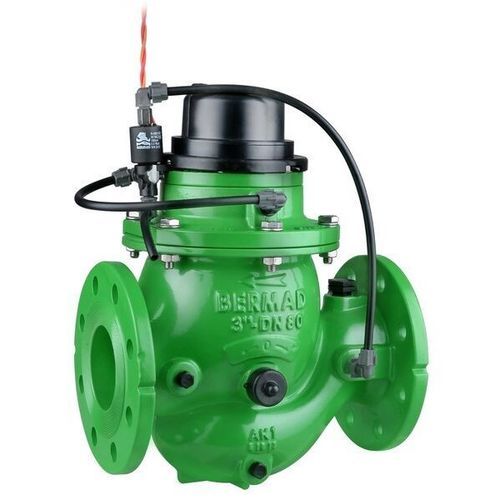

Liquid hydrometer IR-910-ME-LS-3W-KX

in-linemeasuring deviceindustrial

Overview

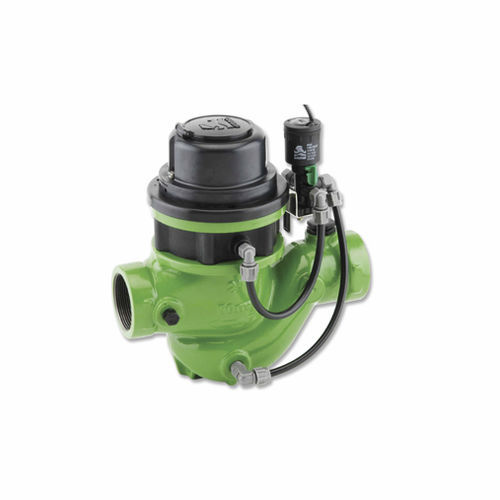

The BERMAD Hydrometer IR-910-M0-3W-KX integrates a Woltman-type turbine water meter and a hydraulically actuated diaphragm control valve with solenoid On/Off operation. It serves as a mainline flow meter and as a solenoid-operated control valve, featuring a magnetic drive with a vacuum-sealed register for accurate volume measurement and an optional pulse output for telemetry integration.

Key Features & Benefits

• Integrated all-in-one control valve and flow meter to reduce installation footprint and component count
• Hydraulic hydrometer with solenoid control: line-pressure driven actuation, electrically controlled On/Off
• Magnetic drive with vacuum-sealed register (M0): dry gear-train mechanism and tension-free reed-switch pulse output options
• Internal inlet and outlet flow straighteners to minimize straightening distances and preserve accuracy
• Integrated flow metering calibration device for precise field calibration

Typical Applications

• Automated irrigation systems and distribution networks
• Remote and elevated supply installations
• Remote flow data readout and telemetry
• Flow monitoring and leakage control in distribution lines

Additional Options / Features

• Z: Manual selector
• ME: Electronic register (upgrade kit available)

Notes
Magnetic drive version indicated as M0. Composite control loop and accessories indicated as K. Product is available in a 3-way configuration. The integrated design simplifies installation and reduces the number of components required in the control loop.

Technical specifications

• Model designation: IR-910-M0-3W-KX
• Series: 900 Series
• Product type: Solenoid-controlled hydrometer (hydraulic hydrometer + solenoid-operated valve)
• Meter type: Woltman-type turbine water meter
• Register: Magnetic drive with vacuum-sealed register (M0)
• Control loop/accessories: Composite control loop with accessories (K)
• Valve configuration: 3-way
• Actuation: Line-pressure driven hydraulic actuation; solenoid electrically controlled On/Off
• Pulse output: Reed-switch, tension-free; multiple pulse combinations; optional
• Flow straightening: Internal inlet and outlet straighteners
• Calibration: Integrated flow metering calibration device
• Catalog/internal barcode: 27625
• Typical sector/segment: Irrigation
