Diaphragm valve IR-12T-55-3W-X

hydraulically-operatedelectrically-actuatedpilot

Overview

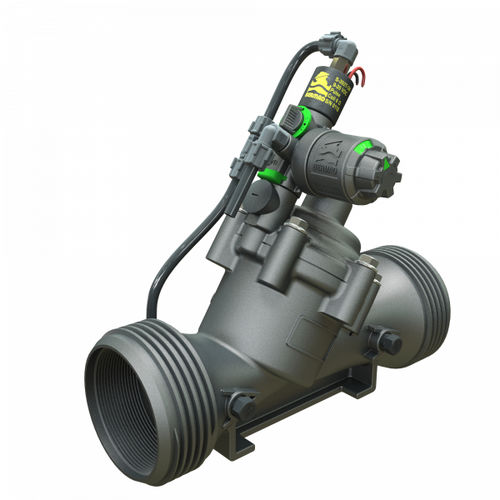

The BERMAD Top‑pilot pressure reducing control valve IR-12T-55-3W-X combines an integrated 3‑way pilot with an optional 3‑way solenoid for compact, plug‑and‑play pressure regulation in irrigation and water distribution systems. The high‑resolution adjustment dial enables fast, accurate calibration. The valve reduces higher upstream pressure to a calibrated constant downstream pressure regardless of flow variations and opens fully when line pressure falls below the setpoint. When a solenoid is fitted, the valve also opens and closes in response to an electrical control signal.

Features & Benefits

• Line‑pressure driven, hydraulically controlled On/Off
  • Protects downstream equipment and irrigation zones
  • Full opening on low line pressure for reliable supply
• Integrated 3‑way pilot — user‑friendly design
  • High‑resolution adjustment dial for calibration without external gauges
  • Compact "box‑size" layout simplifies valve station and panel installation
  • Solenoid control can be easily added or removed
  • Suitable across the full size range up to 3"
• Engineered composite valve with industrial design
  • Field adaptable to a wide range of end connections
  • Chemical and cavitation resistant for extended service life
• hYflow 'Y' valve body with "Look Through" design
  • Very high flow capacity with low pressure loss
• Unitized Flexible Super Travel (FST) diaphragm and guided plug
  • Accurate and stable regulation with smooth closing
  • Low actuation pressure requirement
  • Prevents diaphragm erosion and distortion

Typical Applications

• Automated irrigation mainlines and submains
• Zones subject to fluctuating supply pressure
• Plot valves in drip and sprinkler systems
• Energy‑efficient irrigation networks

Additional Features

• 5: Plastic test point
• Z: Manual selector
• V3: Victaulic PVC adaptors 3"
• V4: Victaulic PVC adaptors 4"

Technical Specifications

• Model: IR-12T-55-3W-X
• Series: 100 Series
• Valve type: Top‑pilot pressure reducing valve with integrated 3‑way pilot and optional 3‑way solenoid control
• Control: Integrated 3‑way pilot with high‑resolution adjustment dial
• Operation: Reduces upstream pressure to a calibrated downstream setpoint regardless of flow; opens fully on low line pressure; electric actuation response when solenoid fitted
• Valve body design: hYflow 'Y' "Look Through" for high flow and low pressure loss
• Construction: Engineered composite — chemical and cavitation resistant
• Diaphragm/plug: Unitized Flexible Super Travel (FST) diaphragm with guided plug
• Size suitability: Designed for the size range up to 3"
• On‑site adaptability: Adaptable to a wide range of end connections; Victaulic options
• Options: Plastic test point, manual selector, Victaulic PVC adaptors (V3, V4)
