Diaphragm valve IR-110-X

hydraulically-operatedfor controldistribution

Product overview

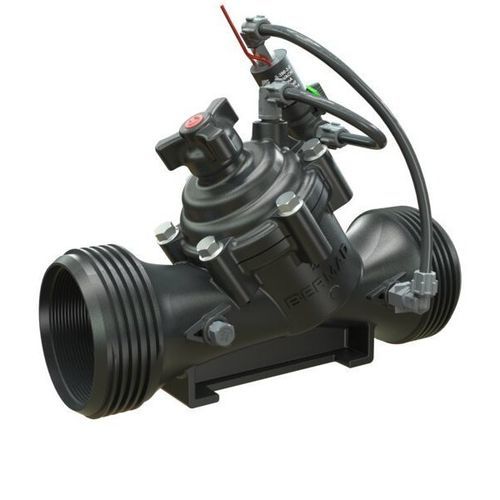

The BERMAD Solenoid Controlled Valve IR-110-3W-X is a hydraulically operated, diaphragm-actuated control valve that opens and shuts in response to an electric signal. Designed for irrigation applications, it provides electrically controlled On/Off operation with 3-way control and belongs to the 100 Series.

Key features & benefits

• Hydraulic control valve
  • Line-pressure driven
  • Electrically controlled On/Off
• Engineered composite valve with industrial-grade design
  • Adaptable on-site to a wide range of end connections
  • Articulated flange connections eliminate line bending and hydraulic stresses
  • Chemical- and cavitation-resistant construction
• hYflow 'Y' valve body with "Look Through" design
  • High flow capacity with low pressure loss
• Unitized Flexible Super Travel (FST) diaphragm and guided plug
  • Smooth closing
  • Requires low actuation pressure
  • Prevents diaphragm erosion and distortion
• User-friendly design
  • Simple in-line inspection and service

Typical applications

• Automated irrigation systems
• Remote and/or elevated systems
• Distribution centers
• Low supplied pressure irrigation systems
• Energy-saving irrigation systems

Additional features

• M : Flow Stem (Exclude sizes 4"L, 6"R)
• 5 : Plastic Test Point
• Z : Manual Selector
• V3 : Victaulic PVC Adaptors 3"
• V4 : Victaulic PVC Adaptors 4"

Technical specifications

• Model: IR-110-3W-X
• Series: 100 Series
• Product type: Solenoid Controlled Valve (3-Way Control)
• Control: Electrically actuated solenoid control; hydraulically line-pressure driven actuation
• Body design: hYflow 'Y' valve body with look-through design for high flow and low pressure loss
• Diaphragm / plug: Unitized Flexible Super Travel (FST) diaphragm with guided plug for smooth closing and low actuation pressure
• Materials: Engineered composite construction; chemical- and cavitation-resistant
• End connections: Adaptable on-site to a wide range of end connections; articulated flanges to eliminate hydraulic stresses
• Serviceability: In-line inspection and simple service design
• Typical fittings & options: Flow stem variants, plastic test point, manual selector, Victaulic PVC adaptors (3" and 4")
• Intended segment: Irrigation
• Typical installations: Infield control heads, distribution systems, pumping stations and other irrigation infrastructure
• Internal reference/barcode (site): 26580
