Diaphragm valve IR-105 series

hydraulically-operatedregulatingfor water

Overview

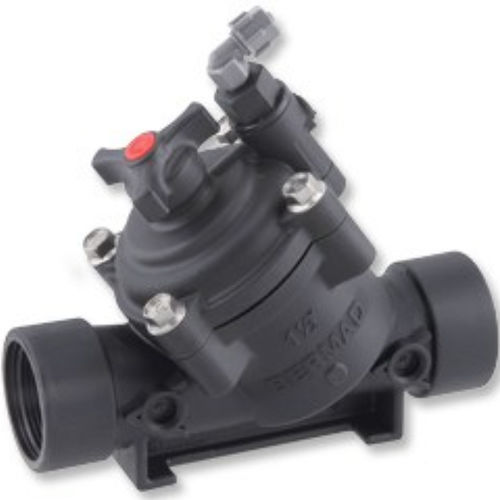

The BERMAD IR-105-Z hydraulic control valve is a hydraulically operated, diaphragm-actuated valve designed for irrigation systems. It opens and closes in response to local or remote pressure commands and includes a manual selector for local operation.

Features & Benefits

• Line pressure driven
• Hydraulically On/Off controlled

Engineered composite valve with industrial-grade design

• Adaptable on-site to a wide range of end connections
• Durable, chemical and cavitation resistant

hYflow 'Y' valve body with "Look Through" design

• Ultra-high flow capacity with low pressure loss

Unitized "Flexible Super Travel" (FST) diaphragm and guided plug

• Accurate and stable regulation with smooth closing
• Requires low actuation pressure
• Prevents diaphragm erosion and distortion
• Simple in-line inspection and service

Typical applications

• Automated irrigation systems
• Distribution centers
• Low-supply-pressure irrigation systems
• Energy-saving irrigation systems

Additional features

• M: Flow stem (exclude sizes 4"L, 6"R)
• 5: Plastic test point
• V3: Victaulic PVC adaptors 3"
• V4: Victaulic PVC adaptors 4"

Technical specifications

• Brand: BERMAD
• Model: IR-105-Z
• Product type: Hydraulic control valve (with manual selector)
• Series: 100 Series
• Segment: Irrigation
• Operation: Hydraulic, diaphragm actuated; opens/closes to local or remote pressure command
• Drive: Line pressure driven
• Control: Hydraulically On/Off controlled
• Body design: hYflow 'Y' body with "Look Through" design for ultra-high flow and low pressure loss
• Diaphragm: Unitized "Flexible Super Travel" (FST) diaphragm with guided plug for accurate, stable regulation and smooth closing
• Durability: Engineered composite, chemical and cavitation resistant
• Serviceability: Simple in-line inspection and service
• Special adaptors/options: Flow Stem (M), Plastic Test Point (5), Victaulic PVC Adaptors (V3 - 3", V4 - 4")
• Internal code: 27142
