Diaphragm valve IR-105-Z

hydraulichydraulically-operatedfor control

Overview

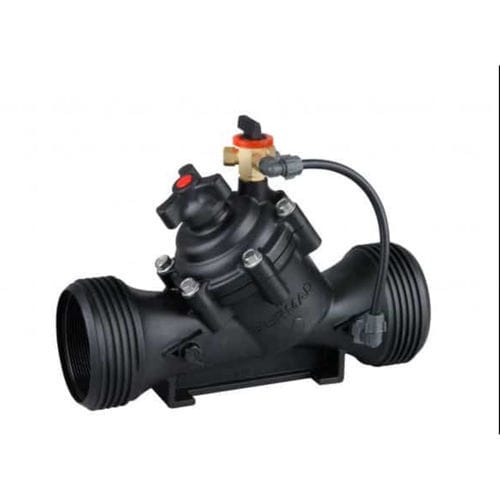

The BERMAD Hydraulic Control Valve IR-105-Z is a diaphragm-actuated, hydraulically operated control valve from the 100 Series. It opens and closes in response to local or remote pressure commands and is designed for irrigation applications.

Features & Benefits

• Line-pressure driven, hydraulically controlled ON/OFF operation
• hYflow 'Y' valve body with "Look Through" design for ultra-high flow with low pressure loss
• Unitized Flexible Super Travel (FST) diaphragm and guided plug for accurate, stable regulation and smooth closing
• Engineered composite construction — chemical and cavitation resistant
• Adaptable on-site to a wide range of end connections
• Low actuation pressure required; simple in-line inspection and service

Typical Applications

• Automated irrigation systems
• Infield control heads and distribution centers
• Low-supply-pressure irrigation installations
• Energy-saving irrigation systems

Additional Features & Options

• M: Flow stem (excludes sizes 4"L, 6"R) — can serve as manual selector option
• 5: Plastic test point
• V3: Victaulic PVC adaptors 3"
• V4: Victaulic PVC adaptors 4"

Documentation (available)

• IR-105-Z - Product Page (Metric, English)
• IR-105-Z - Product Page (Imperial, English)
• IR-105-Z - 1.5–4 inch IOM (Installation & Operations Manual, English)
• 100 Series - Spare Parts list
• 100 Series - Engineering guide
• 100 Series - Ordering guide

Technical specifications

• Model: IR-105-Z
• Product type: Hydraulic control valve, diaphragm actuated
• Series: 100 Series
• Operation: Line-pressure driven; hydraulically ON/OFF controlled
• Body design: hYflow 'Y' with "Look Through" design for high flow and low pressure loss
• Diaphragm & plug: Unitized FST diaphragm with guided plug
• Materials: Engineered composite construction — chemical and cavitation resistant
• Serviceability: Simple in-line inspection and service
• Actuation: Low actuation pressure required
• Available adaptors/options: Victaulic PVC adaptors (3" and 4"), plastic test point, flow stem option (size exclusions apply)
• Intended segment: Irrigation
• Typical installations: Infield control heads, distribution centers, automated irrigation systems
