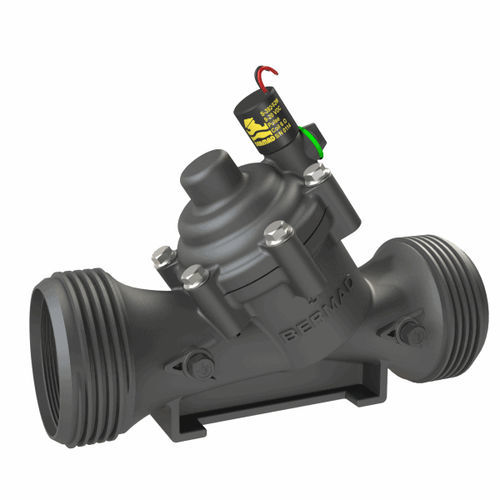

Diaphragm valve IR-11T-N1-2W

electrichydraulically-operatedbleed

Overview
The BERMAD 2-way solenoid-controlled valve IR-11T-N1-2W is a hydraulically operated, diaphragm-actuated on/off control valve with an internal Feed & Bleed hydraulic control loop. The Trio solenoid actuates the internal hydraulic circuit to open and close the valve drip-tight in response to an electrical signal.

Key Features

• Line-pressure driven hydraulic control
• Solenoid-actuated On/Off operation (Trio solenoid)
• Engineered composite construction
• hYflow Y-body for ultra-high flow with low pressure loss
• Unitized Flexible Super Travel (FST) diaphragm with guided plug
• Low actuation pressure requirement
• Resistant to chemical attack and cavitation
• Simple in-line inspection and service

Typical Applications

• Automated irrigation systems
• Greenhouse irrigation
• Low-supply-pressure irrigation systems
• Energy-saving irrigation systems
• Landscape irrigation — municipal and domestic
• Turf irrigation — golf courses and stadiums

Additional Options / Features

• M: Flow stem option (limit/flow control)
• V3: Victaulic PVC adaptors 3"
• V4: Victaulic PVC adaptors 4"

Technical Specifications

• Model: IR-11T-N1-2W
• Product Series: 100 Series
• Product Type: Solenoid controlled 2-way On/Off valve
• Control: Hydraulically operated, diaphragm actuated with internal Feed & Bleed loop
• Solenoid: Trio solenoid (2-way internal control)
• Body Design: hYflow Y-body "Look Through" concept for very high flow and low pressure loss
• Diaphragm: Unitized Flexible Super Travel (FST) with guided plug
• Materials: Engineered composite; chemical and cavitation resistant
• Service: Simple in-line inspection and service
• End-connections / Adapters: Field-adaptable; Victaulic PVC adaptors available (3" / 4")
• Primary Applications: Irrigation (automated, greenhouse, low-pressure, energy-saving), landscaping, turf
• Page data / Internal reference: 26686
