Pressure valve IR-22T-55-3W-X

hydraulically-operatedelectrically-actuatedpressure-reducing

Product overview

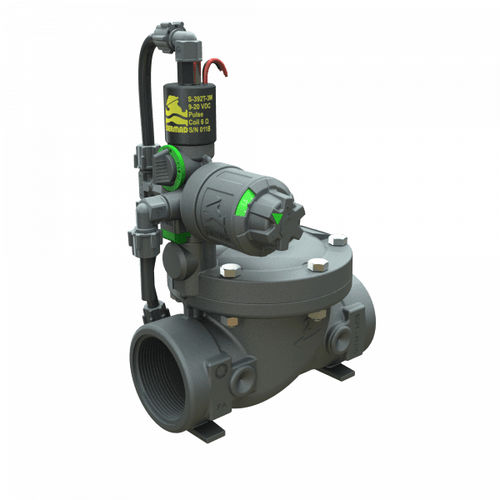

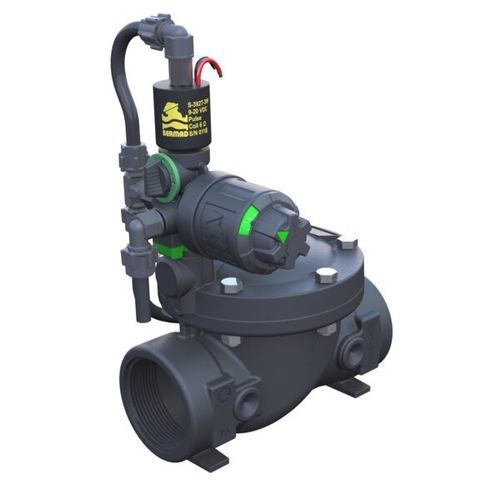

BERMAD Top Pilot pressure reducing control valve IR-22T-55-3W-X with optional solenoid control reduces higher upstream pressure to a calibrated constant downstream pressure for irrigation systems. The integrated 3-way pilot includes a high-resolution adjustment dial for quick, accurate calibration. When line pressure falls below the setpoint the valve opens fully; when equipped with the solenoid the valve opens and shuts in response to an electric signal. This valve is intended for irrigation use only; manufacturer warranty is limited to permitted use.

Line pressure driven, hydraulically controlled On/Off

• Protects downstream irrigation equipment and networks
• Opens fully upon line pressure drop

3-way integrated pilot – user-friendly design

• High-resolution adjustment dial and scale for calibration without a pressure gauge
• Compact, box-size integrated solution
• Solenoid control is plug & play (easily added or removed)
• Suitable across sizes up to 3"

Smooth valve opening and closing

• Accurate, stable pressure regulation
• Low operating pressure requirements

Composite hydro-efficient globe valve

• Unobstructed flow path for high flow capacity
• Single moving part for simplified internals
• Durable, chemical- and cavitation-resistant construction

Unitized flexible diaphragm and guided plug

• Excellent regulation at low flow rates
• Prevents diaphragm erosion and distortion

Fully supported & balanced diaphragm

• Requires low actuation pressure

Typical applications

• Automated irrigation systems
• Systems subject to varying supply pressure
• Plot/zone valves in drip and sprinkler irrigation
• Energy-saving irrigation installations

Additional features

• Plastic test point
• ½" anti-vacuum at valve downstream

Technical specifications

• Model: IR-22T-55-3W-X
• Commercial name: Top Pilot Pressure Reducing Valve
• Series: 200 Series
• Control: 3-way integrated pilot; solenoid option (plug & play)
• Operation: Line pressure driven, hydraulically controlled On/Off; opens/shuts in response to electric signal when solenoid fitted
• Suitable for: Irrigation applications (use limited to irrigation)
• Valve type: Composite hydro-efficient globe valve
• Size range: up to 3"
• Key features: High-resolution adjustment dial, unitized flexible diaphragm with guided plug, fully supported & balanced diaphragm
• Additional: Plastic test point; ½" anti-vacuum downstream
• Site product code / barcode: 882795
