Direct-operated solenoid valve IR-21T
2-waynormally closednormally open

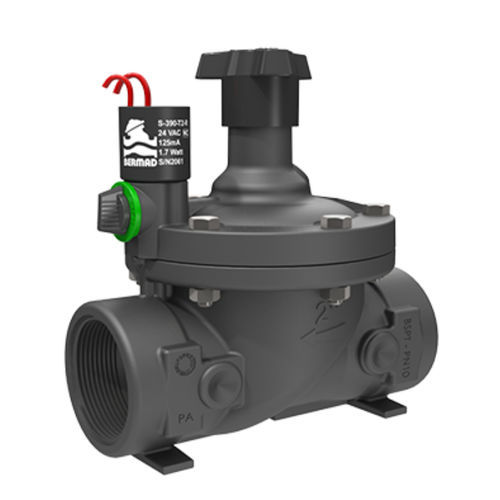

Direct-operated solenoid valve - IR-21T - BERMAD CS Ltd - 2-way / normally closed / normally open
Direct-operated solenoid valve - IR-21T - BERMAD CS Ltd - 2-way / normally closed / normally open
Direct-operated solenoid valve - IR-21T - BERMAD CS Ltd - 2-way / normally closed / normally open - image - 2
Add to favorites
Compare this product

Characteristics

Control
direct-operated
Ports/positions
2-way
Function
normally closed, normally open
Medium
hydraulic
Body
in-line, chemical-resistant
Other characteristics
chemical-resistant, membrane
DN

Max.: 50 mm
(1.969 in)

Min.: 12 mm
(0.472 in)

Voltage

9 V, 20 V

Pressure

Max.: 10 bar
(145 psi)

Min.: 0.5 bar
(7.3 psi)

Description

Overview
The BERMAD 2-way solenoid controlled on/off valve IR-21T-2W-M is a hydraulically operated, diaphragm-actuated valve with an internal Feed & Bleed hydraulic control loop and an integrated TRIO Open-Auto-Close manual selector for manual override of the electric signal. Intended for irrigation use only; manufacturer's warranty is limited to permitted use.

Features & Benefits
  • Line-pressure driven, hydraulically controlled on/off operation
  • Smooth valve opening and closing
    • Accurate and stable regulation
    • Low operating and actuation pressure requirements
  • Composite hydro-efficient globe valve
    • Unobstructed flow path
    • Single moving part
    • High flow capacity
    • Chemical and cavitation resistant construction
  • Unitized flexible diaphragm and guided plug
    • Prevents diaphragm erosion and distortion
  • Fully supported and balanced diaphragm
    • Requires low actuation pressure
  • User-friendly design
    • Simple in-line inspection and service


Typical Applications
  • Automated irrigation systems
  • Drip systems
  • Greenhouse irrigation
  • Systems subject to varying supply pressure
  • Landscape irrigation
  • Energy-saving irrigation systems


Additional Features
  • Plastic test point


Technical Specifications
  • Model: IR-21T-2W-M
  • Series: 200 Series
  • Product type: Solenoid controlled on/off valve (2-way internal control)
  • Actuation: Solenoid control with hydraulic operation; diaphragm actuated
  • Control loop: Internal hydraulic Feed & Bleed
  • Manual override: TRIO integrated Open-Auto-Close selector (manual open/close of electric signal)
  • Valve design: Composite hydro-efficient globe valve with unobstructed flow path and single moving part
  • Diaphragm: Unitized flexible diaphragm, guided plug; fully supported and balanced
  • Performance: Low actuation/operating pressure requirements; high flow capacity; accurate and stable regulation
  • Durability: Chemical and cavitation resistant construction
  • Intended use: Irrigation only (warranty limited to permitted use)
  • Test point: Plastic test point
  • Manufacturer: BERMAD
  • Internal product code: 27501
