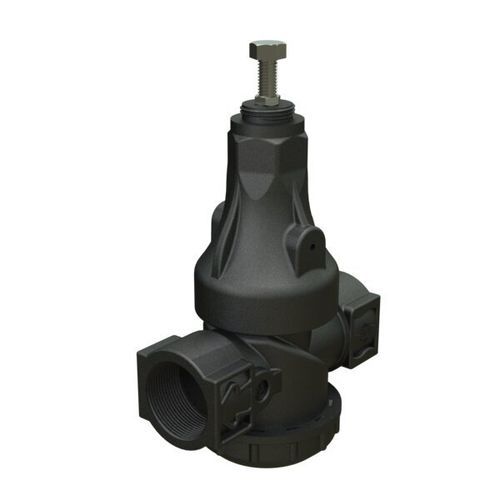

Water pressure regulator and reducer 1-PRVdiaphragmcompositepolyamide
Add to favorites
Compare this product
Characteristics
- Product
- for water
- Technology
- diaphragm
- Material
- stainless steel, polyamide, composite
- Applications
- for water systems
- Other characteristics
- compact, direct-acting, in-line
- Pressure
Min.: 0.7 bar
(10.15 psi)Max.: 9 bar
(130.53 psi)- Flow
Min.: 0.5 m³/h
(17.66 ft³/h)Max.: 6 m³/h
(211.89 ft³/h)- Orifice diameter
25 mm
(0.984 in)- Temperature
60 °C
(140 °F)
Description
Description
BERMAD Adjustable Direct-Acting Pressure Reducer 1-PRV is a diaphragm-actuated valve designed to maintain a stable downstream pressure by balancing hydraulic force against a set spring load. Manufactured with composite body and internal trim, the 1-PRV delivers high hydraulic performance and mechanical strength while remaining suitable for irrigation installations.
Features & Benefits
Typical Applications
Technical specifications
BERMAD Adjustable Direct-Acting Pressure Reducer 1-PRV is a diaphragm-actuated valve designed to maintain a stable downstream pressure by balancing hydraulic force against a set spring load. Manufactured with composite body and internal trim, the 1-PRV delivers high hydraulic performance and mechanical strength while remaining suitable for irrigation installations.
Features & Benefits
- Advanced construction materials: composite body and trim for high mechanical strength, chemical and cavitation resistance
- Adjustable direct-acting operation: maintains constant downstream pressure with immediate response; adjustable for seasonal or stage changes
- Unitized rolling diaphragm and guided plug: precise, stable regulation and reduced risk of diaphragm distortion
- Compact, service-friendly design: in-line inspection and simplified maintenance; can be installed in any orientation
- Reduced friction trim: optimizes hydraulic efficiency and reduces wear
Typical Applications
- Distribution line lateral risers in irrigation systems
- Non-compensating drip-line flow fixation
- End-of-lateral burst/failure protection
- Pressure reduction for marginal plots or sectors
- Sprinkler flow control on irrigation machines
- Single-sprinkler flow fixation
Technical specifications
- Model: 1-PRV
- Series: PRV Series
- Configuration: Female–Female threaded
- Typical size reference: 1" assembly shown
- Operation: Adjustable direct-acting pressure reducer, diaphragm-actuated (equilibrium between hydraulic force and set spring force)
- Body & trim material: Composite materials (high mechanical strength, chemical and cavitation resistant)
- Diaphragm: Unitized rolling diaphragm with guided plug for accurate and stable regulation
- Performance: Reduces higher upstream pressure to a lower, constant downstream pressure with immediate response
- Adjustability: Adjustable for season and stage
- Installation: Can be installed in any orientation
- Service: Simple in-line inspection and service
- Product code / barcode (reference on page): 28132
