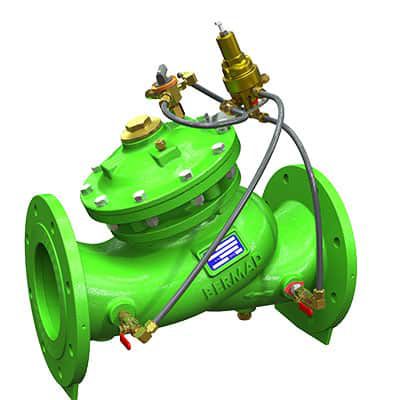

Pressure valve IR-120-3W-XZ

hydraulically-operatedregulatingfor water

Description
The BERMAD Pressure Reducing Valve IR-120-3W-XZ is a hydraulically operated, diaphragm-actuated control valve designed to reduce higher upstream pressure to a lower constant downstream pressure. It opens fully on a line pressure drop and is tailored for irrigation distribution networks and field control heads.

Features & Benefits

• Line Pressure Driven, Hydraulically Controlled
  • Protects downstream systems and irrigation equipment
  • Opens fully upon line pressure drop to maintain system flow
• Engineered Composite Valve with Industrial-Grade Design
  • Adaptable on-site to a wide range of end connections
  • Articulated flange connections reduce pipe bending and hydraulic stresses
  • High durability; resistant to chemicals and cavitation
• hYflow 'Y' Valve Body with "Look Through" Design
  • Ultra-high flow capacity with low pressure loss
• Unitized "Flexible Super Travel" (FST) Diaphragm and Guided Plug
  • Accurate, stable regulation with smooth closing
  • Requires low actuation pressure
  • Prevents diaphragm erosion and distortion
  • Facilitates simple in-line inspection and service

Typical Applications

• Automated irrigation systems (field control heads, distribution lines)
• Pressure reduction and management in distribution networks
• Systems subject to varying supply pressure
• Irrigation distribution centers and valves stations
• Energy-saving irrigation schemes

Additional Features

• M : Flow stem / opening limiter (excluding sizes 4"L, 6"R)
• 5 : Plastic test point
• V3 : Victaulic PVC adaptors 3"
• V4 : Victaulic PVC adaptors 4"

Technical Specifications

• Model: IR-120-3W-XZ
• Series: 100 Series
• Product type: Pressure Reducing Valve (3-way control & manual selector)
• Operation: Line pressure driven, hydraulically controlled
• Actuation: Diaphragm actuated; unitized FST diaphragm and guided plug
• Body: Engineered composite, hYflow 'Y' body with "Look Through" design
• Key properties: Ultra-high flow capacity at low pressure loss; chemical and cavitation resistant
• Typical segment: Irrigation (infield control heads, distribution lines)
• On-site adaptability: Wide range of end connections; articulated flange connections to reduce hydraulic stress
• Options/accessories: M (flow stem/limiter), 5 (plastic test point), V3/V4 (Victaulic PVC adaptors)
• Internal ID / barcode: 26836
