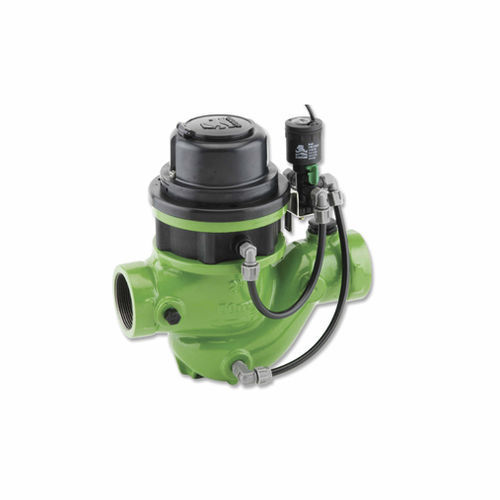

Diaphragm valve 910/M0-LS-2W-K-R02

electrically-operatedfor water2-way

Overview
The BERMAD hydrometer IR-910-M0-3W-KX combines a Woltman-type turbine water meter and a hydraulically operated diaphragm control valve with solenoid actuation. Designed for irrigation and field distribution systems, it serves as a mainline flow meter and an electrically controlled On/Off valve. The unit includes a magnetically coupled, vacuum-sealed register for accurate volumetric measurement and offers an optional pulse output for remote monitoring.

Key Features & Benefits

• Integrated control valve and flow meter — reduces footprint and simplifies installation
• Hydraulic hydrometer with solenoid control — line-pressure driven, electrically commanded On/Off operation
• Magnetic drive with vacuum-sealed register — water-free gear train and reliable volume measurement
• Internal inlet and outlet flow straighteners — minimize straightening distance and maintain accuracy
• Integrated flow metering calibration device — facilitates on-site calibration

Typical Applications

• Automated irrigation control heads and distribution lines
• Remote and elevated irrigation systems
• Remote flow data readout and telemetry integration
• Flow monitoring, scheduling and leak control in agricultural networks

Additional Features

• Z: Manual selector
• ME: Electronic register upgrade kit available
• Optional reed-switch tension-free pulse output for remote monitoring

Technical Specifications

• Brand: BERMAD
• Model: IR-910-M0-3W-KX
• Series: 900 Series
• Device type: Solenoid-controlled hydrometer combining Woltman-type turbine meter and hydraulically operated diaphragm control valve
• Register: Magnetic drive with vacuum-sealed, magnetically coupled register (M0)
• Control: Solenoid-operated On/Off; electrically commanded
• Configuration: 3-Way; composite control loop and accessories (K)
• Pulse output: Optional reed-switch, tension-free; various pulse combinations supported
• Flow straightening: Internal inlet and outlet straighteners to reduce required straightening distance
• Calibration: Integrated flow metering calibration device
• Main applications: Irrigation control heads, distribution lines, mechanized and micro-irrigation systems
