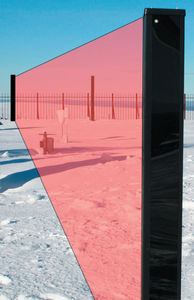

KAPIRIS is a new generation dual-tech outdoors motion sensor.
Its long and narrow detection scope creates a 50mx3m detection wall.
This sensor integrates a microwave antenna with doppler effect in K (24GHz) as well as a PIR sensor and was designed for reliable long range detection performances.
Intruder tracker:
KAPIRIS allows to track intruders inside the the protected zone. When associated with a CCTV system, it will become an essential tool to help security officers to catch intruders. Developed to pilot CCTV cameras.
Perimeter intrusion detection system addition:
Thanks to its long yet narrow detection scope, KAPIRIS is a perfect addition to traditional perimeter security solutions and allows the coverage of complex perimeters, with detection zones difficult to create with other technologies. (steep terrain, funny angles, %u2026)
PRECISE 50M OUTDOORS DETECTION RANGE WITH 5M STEPS CONFIGURATION
- Simplifi ed positioning and installation of the sensor
- Precise confi guration of the surface to protect without diminishing sensitivity.
NO DEAD ZONE
KAPIRIS is equipped with a revolutionary antenna with a double detection scope which ensures a long range detection and eliminates the " dead angle " at the bottom of the sensor.
|
|
KAPIRIS is a new generation dual-tech outdoors motion sensor.
Its long and narrow detection scope creates a 50mx3m detection wall.
This sensor integrates a microwave antenna with doppler effect in K (24GHz) as well as a PIR sensor and was designed for reliable long range detection performances.
Intruder tracker:
KAPIRIS allows to track intruders inside the the protected zone. When associated with a CCTV system, it will become an essential tool to help security officers to catch intruders.
CCTV pilot:
Developed to pilot CCTV cameras.
Perimeter intrusion detection system addition:
Thanks to its long yet narrow detection scope, KAPIRIS is a perfect addition to traditional perimeter security solutions and allows the coverage of complex perimeters, with detection zones difficult to create with other technologies. (steep terrain, funny angles, ...)
|
|
|
|
|
|
Volumetric sensor buried with a score of centimetres, detecting the vibrations caused by the passage of a vehicle or a man (going, running or crawling along the supervised perimeter). A field of detection ultra high frequency is created around each pair of cables, allowing the detection of the intrusions.
Currently SORHEA proposes INTREPID MICROTRACK, buried detector which can manage a surveillance zone until 400m. Composed of a central processing unit and two pairs of cables ultra high frequency, INTREPID MICROTRACK locates with precision the point of intrusion. That makes it possible to easily discriminate the small animals as well as the bad weather.
Moreover INTREPID MICROTRACK is the only buried cable of detection able to freely define zones of detection in any point of the supervised perimeter.
INTREPID MICROTRACK is the first buried cable designed to adapt entirely to its environment, able to ensure a uniform detection throughout the perimeter.
Principle of detection and localization: Each buried cable of system INTREPID MICROTRACK is divided into cells of 2m approximately. One thus obtains 100 cells per cable of 200m. To initiate detection, central processing unit INTREPID MICROTRACK sends by the means of the transmitting cable a signal ultra high frequency coded to broad band. This signal, received by the receiving cable creates a field of electromagnetic detection invisible above and in lower part of surface of the ground and all along the pair.
|
|
|

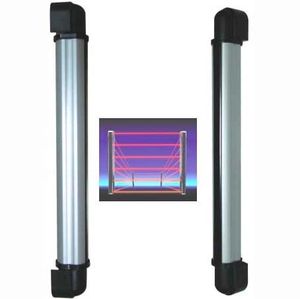

The PH line is a series of active infra-red barriers that is ideal for protecting large internal or external perimeter areas. It is made up of a barrier with max external range of 60 m and 1 double beam IR; by a barrier with max external range of 150 m and 1 double beam IR; and by a barrier with max external range of 200 m and 2 double beams. They can operate on 4 different frequencies selectable with dip switches, fi tted with high quality aspheric lenses and a box with gaskets which makes them ideal for external installations on a pole (brackets supplied).
|
|
SHORT RANGE PHOTOELECTRIC DETECTOR
The AX-70/130/200TN Series of short range photoelectric detectors is compact in designed with IP65 high durable structure.
Rubber packing is used for all conceivable points where water, dust or bugs may penetrate, such as wiring holes, wire ports and the outer chassis. Preventing these factors helps deliver performance with higher reliability in severe outdoor environmental condition.
In addition, the length between the upper and lower optics, and the width of the optics are ideally engineered to produce the most intelligent detection pattern which reduces false alarms by detecting human intruders only.
|
|
|
|
|
|
HERMES Microwave barrier
The Hermes 150-I is an upgraded version of Martec-developped series of microwave systems. The distinguishing feature of the I version is its detecting head with integrated power supply and connections. The above improvements allow for a significant cost reduction. The electronic has been entirely updated in order to meet the ROHS requirements and eliminate any obsolete componants. This new Hermes 150-I, garantees high performances and reliability.
Features
Signal processing by microprocessor ensuring precise and elaborate analyses which in turn guarantee:
- Superior detection quality
- An excellent Detection/False alarm ratio
- Telecontrol capability
- Easy to set to work (connection to a laptop computer, determination and saving of parameters)
Detection beams
A low power microwave energy beam is generated between a transmitter and a receiver placed approximately 1 metre from the ground. A continuous surveillance ring can be set up by overlapping several HERMES systems.
|
|
Integrating PIR and microwave technology into attractive, easy-to-install units, the DX Series provides stable and reliable detection in the most hostile of environments, where simple PIR detectors struggle to function.
The PIR element incorporates Quad Zone Logic to detect the smallest temperature contrast against the background temperature, enabling it to discriminate between humans and other sources of infrared. Additionally, the microwave detector incorporates Microwave Area Shaping technology to prevent the unwanted detection of movement outside the coverage area. All in all, the DX Series offers unparalleled sensing performance.
|
|
SELECTABLE BEAM FREQUENCY LONG RANGE PHOTOELECTRIC DETECTOR
The AX-350/650TF Series of long range photoelectric detectors with selectable beam frequencies.
The selectable beam frequencies can be used to avoid unwanted crosstalk that can occur when using multiple photobeams over long distances or beam stacking applications.
Also the AX-TF Series employs multiple beam technology and utilizes an AND circuit that requires all beams to be interrupted simultaneously before an alarm is generated. This reduces false alarms due to accidental beam interruption by falling leaves and small animals.
|
|
|
BM200M and BM120M are the new microwave beam of AVS Electronics, for big external and internal protection. An up to date electronic technology is used to guarantee an optimal detection with a minimum risk of false alarm. The system is composed from two units: one transmitter (TX) and one receiver (RX), that are tuned in one of the 5 possible modulation frequencies with Dips switch. Multiple BM200M and BM120M detectors may be used to enclose a complete perimeter protection, without any problem of interference. Special signal processing circuits provide automatic compensation of back ground environmental conditions. The circuit of BM200M and BM120M are completely solidstate and protected with drip-proof resin to ensure good resistance to weather. Circuit are housed in a box properly made for the easy installation. BM200M and BM120M are individually 100% computer tested in order to grant the usual AVS Electronics reliability.
|
|
|
|
|
|
A perfect alarm system installation must be able to rely on the precision and reliability of the detectors that have been installed to protect the zones. For this reason, Tecnoalarm has developped a complete range of detectors permitting a more efficient and customized coverage of every zone in every environmental condition.
Infact, there are infrared, microwave and dual technology detectors, both wired and wireless, with or without antimasking control and with different lenses.
The detectors equipped with the technology of Remote Digital Verification (RDV®), an exclusive technology by Tecnoalarm, stand out against the others as they permit the remote verification of the presence of intruders in the protected area.
For the protection of outdoor spaces, Tecnoalarm has developped the infrared barriers DOORBEAM/S and WINBEAM/S, mounted next to the doors or windows and available in several colours and lengths, as well as the microwave barriers EXPLORER II and MINIEXPLORER, apt to cover perimeters and large open spaces such as gardens, parks or courtyards.
|
|
THE NEW GENERATION OF PHOTOELECTRIC BEAMS : BIRIS II
BRAND NEW ENVELOPE:
The new active infrared barrier BIRIS II features a new aesthetically-conscious design, with an increased IP index (IP65) that guarantees a better protection against very humid area.
BIRIS II is the 2nd generation of modular active infrared products. It is made of stand alone products from 20 to 40 cm height to simplify the installation.
With this new generation of dual- and quad-beams products, SORHEA wanted to improve it with the new functions:
- Configurable AND/OR functions
- Integrated alignment interface
- Configurable selectable channels
Expanding types of applications: The BIRIS II can work indoor and outdoor, it is dedicated to :
- Warehouses
- Supermarkets
- Villas
- Roof protection
- Facades
- Sliding gates
- etc...
|
|
MAXIRIS III, 3rd GENERATION INFRARED BARRIER
MAXIRIS III is the only one infrared barrier on the market to feature up to three detection zones per barrier!
In adition, the dimension of each zone is ajustable according to your needs to optimize the protection of your sites.
The alarm information is specific for each zone created, that allows a better camera video piloting.
Expert experience and Technology at your service. SORHEA has developed a new aesthetically pleasing and robust design for the MAXIRIS III Columns.
The modularity and flexibility in the use of the MAXIRIS III infrared columns allows them to be installed on the majority of sites:
- Military facilities
- Nuclear power plants
- Prisons
- Logistic sites
- Public places (underground, airports...)
- etc.
|
|
APIRIS is the only triple-technology barrier to combine an infrared barrier with synchronized and multiplexed beams, a microwave barrier and a microwave doppler sensor.
The alarm is triggered when an intrusion is detected by the infrared and by one of the two microwave technologies
APIRIS is an outdoor anti-intrusion system designed for the protection of sensitive sites such as prisons or military sites.
Main APIRIS features:
- 4 to 7 infrared beams spread over the whole column’s height
- Double direction column
- In case of a low visibility, one or more IR beams can be disqualified
- Barrier connection with RS485 Network
- History of the last 100 events
|
|
|
|
|
|
MAXIRIS 2000 is the highest performing product on the market, creating a veritable invisible and impassable wall. Indeed, it is possible to raise the barrier up to a height of 5 meters and to choose up to 16 beams (depending on the model).
Each column can be configured with respect to the location of the site and configured in order to carry out maintenance.
Networking MAXIRIS 2000 columns opens the way to tele-maintenance and video confirmation using the MAXIMAJ system.
SORHEA also offers the WINMAXI application, which allows real-time visualization of the status of each unit, including the cells and the level of the infrared signal. It also allows review of the event log. It is the indispensable tool for installation and maintenance of MAXIRIS 2000 barriers.
SORHEA's technology goes even further with network installations for MAXIRIS 2000 barriers thanks to the MAXIBUS hub. In particular, the hub allows simplification of the wiring but also simplifies maintenance for the entire network of MAXIRIS 2000 barriers.
|
|
|
|
|
|
With D.I.S. technology(*) 100Hz (Double Interlaced Scanning 100Hz), each cell integrates the dual functions of transmitter and receiver. The infrared beams that are created are multiplexed and synchronized at a frequency of 100Hz.
Thanks to this technology, all columns are identical. The idea of separate transmission and reception modules has been surpassed.
The D.I.S.(*) TECHNOLOGY 100HZ IS INNOVATION THAT SORHEA HAS DEVELOPED IN THE QUEST FOR RELIABILITY ! * Patent pending - No. 06 02310
Dual digital AGC enables compensation for variations in the incoming signal to ensure uninterrupted operation of the barrier. This digital processing of the signal is performed based on a time curve that differentiates exterior phenomena (meteorological or others) from intrusion attempts and thereby significantly reduces the number of false alarms.
COLIRIS II has output switches for each column.
This feature permits maximum limitation of wiring constraints.
You choose, with respect to your needs and constraints, where to wire alarm switches, at one end or the other of the infrared barrier.
There are multiple possibilities for wiring and output switches !
|
|
|
This infrared barrier is ideal for all situations being protected against and immune to all envoirmental conditions; it is also equiped with thermostatically controlled heaters so that it can be used in extreem weather conditions. Sandor model, thanks to its unique system whereby each transmitter is "seen" by each receiver produces a intricate web giving a high security beam with an extremely high level of detection and efficiency. Specifically designed to reduce false alarms, the beam towers give diffentiated alarm responses; one broken beam will give a delayed alarm whereas two or more beams interrupted at the same time will give an immediate alarm.
|
|
|
|
|
|
The FSLIMPRO active infra-red barrier has been designed and built to guarantee a fast and easy installation. The electronics incorporated in the profi le with optic synchronism, reduce the amount of connection cable laying to the minimum: power supply and alarm contact.
The available in profi les from 0.5m to 3m the FSLIMPRO may be adapted to suit specifi c applications. The type of the profi le and the special shape of the caps ensure a sealed fi xing for external use. The beams can be positioned at the desired height inside the FSLIMPRO to personalise the protection level.
FSLIMRF is a battery powered active infra-red barrier for the protection of balconies, doors, and windows which will transmit alarm transmission via radio for a completely wireless installation. The barrier is made up of two aluminium the infra-red transmitter and receiver, within the dark polycarbonate covers. The basic unit consists of a master card to make up a two-beam barrier to which may be expanded to include additional FSLIMPLUS expansion beams can be added up to a maximum of 8.
The additional beams can be freely positioned inside the profi le, allowing the installer to adjust the beams to suit any installation or application. Profi les are available in variuos sizes from 0.5m to 3m, to allow adapted to suit specifi c needs. The type of the profi le and the special shape of the caps ensure a sealed fi xing and allow it to be mounted wall-fl ush externally
|
|
|
|
|
|
With D.I.S. technology(*) 100Hz (Double Interlaced Scanning 100Hz), each cell integrates the dual functions of transmitter and receiver. The infrared beams that are created are multiplexed and synchronized at a frequency of 100Hz.
Thanks to this technology, all columns are identical. The idea of separate transmission and reception modules has been surpassed.
The D.I.S.(*) TECHNOLOGY 100HZ IS INNOVATION THAT SORHEA HAS DEVELOPED IN THE QUEST FOR RELIABILITY ! * Patent pending - No. 06 02310
Dual digital AGC enables compensation for variations in the incoming signal to ensure uninterrupted operation of the barrier. This digital processing of the signal is performed based on a time curve that differentiates exterior phenomena (meteorological or others) from intrusion attempts and thereby significantly reduces the number of false alarms.
COLIRIS II has output switches for each column.
This feature permits maximum limitation of wiring constraints.
You choose, with respect to your needs and constraints, where to wire alarm switches, at one end or the other of the infrared barrier.
There are multiple possibilities for wiring and output switches !
|
|
|
|
|
|
MAXIRIS III, 3rd GENERATION INFRARED BARRIER
Expert experience and Technology at your service. SORHEA has developed a new aesthetically pleasing and robust design for the MAXIRIS III Columns.
With a self-supporting column that is fixed to a floor socket it is possible to have a single or double-faced column. This unique system inceases the number of possible configurations in direction and in number of beams (up to 18).
The MAXIRIS III design is especially pleasing thanks to a complete top to bottom Housing to cover all screws and cables.
Identification card:
- Zoning option (according to the configuration): up to 3 zones per barrier, size of the zones is configurable.
- Celles more performing in poor visibility conditions.
- Beams multiplexed and synchronised.
- Integrated alignment assistance.
- Memory storage: 200 events.
- Alarm configurable for the cutting of 1, 2 ou 3 beams.
- Configuration of the columns: local or at distance.
- Relay contacts on ervery column.
The modularity and flexibility in the use of the MAXIRIS III infrared columns allows them to be installed on the majority of sites:
- Military facilities
- Nuclear power plants
- Prisons
- Logistic sites
- Public places (underground, airports...)
- etc.
|
|
|
|
|
|
SORHEA uses its technological expertise in the field of infrared barriers and microwaves to develop some costumized products:
For external climatic conditions such as high humidity, low or high temperatures, etc.
For special applications: intrinsically-safe housings can be adapted upon specific request (alarm managment, alarm location and number of beams, column size, attachment systems, etc.)
SORHEA Research and Development department analyzes the special needs in compliance with version 2000 of the ISO9001 standards.
MAXIRIS 2000 double stack: MAXIRIS 2000 infrared barriers can be mounted in double width housings so that a column can contain twice as many IR cells.
Tropicalized MAXIRIS 2000 Desert type or Seaside versions: This barrier was specially conceived for tropical countries. It housing double stack adapted to the warm countries.
They are equipped with dust filters and with an additional thermostat-controlled heater integrated for protection angainst humidity and low temperatures (night). MAXIRIS 2000 Desert type integrates a thermostat-controlled ventillation for protection against high temperatures (day) and sand filters.
|
|
|
|
|
|
A perfect alarm system installation must be able to rely on the precision and reliability of the detectors that have been installed to protect the zones. For this reason, Tecnoalarm has developped a complete range of detectors permitting a more efficient and customized coverage of every zone in every environmental condition.
Infact, there are infrared, microwave and dual technology detectors, both wired and wireless, with or without antimasking control and with different lenses.
The detectors equipped with the technology of Remote Digital Verification (RDV®), an exclusive technology by Tecnoalarm, stand out against the others as they permit the remote verification of the presence of intruders in the protected area.
For the protection of outdoor spaces, Tecnoalarm has developped the infrared barriers DOORBEAM/S and WINBEAM/S, mounted next to the doors or windows and available in several colours and lengths, as well as the microwave barriers EXPLORER II and MINIEXPLORER, apt to cover perimeters and large open spaces such as gardens, parks or courtyards.
|
|
