Items Technical Specifications
Rated capacity 3.0m„x
Rated weight 5000kg
Operating weight 16500kg
Automatic leveling ability Yes
Static tilting load 110KN
Max breakout force 175KN
Max drawing force 145KN
Max grade ability 30‹
Max.dump height 3100mm
Max.dump reach 1285mm
Min.ground clearance 410mm
Wheel base 3200mm
Tread 2250mm
Lifting time 6.5sifull load j
Total cycle time(lifting, dumping, lowering) 12sifull loadj
Overall dimensions (l~w~h)mm 8004~3070~3300
Engine Wei chai engine (Chinese famous brand)
Model WD615G.20
Type In line, water cooled, four stroke, dir.inject
Rated power 162KW
Rated speed 2200r/min
Min oil consumption
214g/kw.h
|
|
Items Technical Specifications
Rated weight (kg) 1000
Rated capacity (m%u0437) 0.45
Max breakout force (KN) 36
Max.dump height (mm) 2420
Max.dump reach (mm) 900
Lifting time (s) ?4
Total cycle time (s) ?8
Travel speed(km/h) GRADE I I 5
GRADE II II 16
Max turning angle Each 35°(each direction)
Turning radius ( outside of rear wheel) 3600
Wheel base(mm) 1820
Tread (mm) 1400
Engine 490G
Rated power(KW) 33
Rated speed(rpm) 2400
Transmission system type Static hydraulic pressure-mechanical type
Steering system load sensing, prior steering
Overall dimensions (mm) 4960×1620×2360
Operating weight (kg) 3000
|
|
Rated capacity 1.7m„x
Rated weight 3500kg
Operating weight 9700kg
Automatic leveling ability Yes
Static tilting load 58.8KN
Max breakout force 120KN
Max drawing force 90KN
Max grade ability 30‹
Max.dump height 3050mm
Max.dump reach 1260mm
Min.ground clearance 410mm
Wheel base 2600mm
Tread 1870mm
Height with bucket at full raise 4870mm
Lifting time 5.5sifull load j
Total cycle time(lifting, dumping, lowering) 9.67sifull loadj
Overall dimensions (l~w~h)mm 6990~2420~3000
Engine Yuchai iChina famous enginej
Model YC6108G
Type In line, water cooled, four stroke, dir.inject
Rated power 92KW
Rated speed 2200r/min
|
|
Items Technical Specifications
Rated weight (kg) 1500
Rated capacity(m§Ù) 0.7
Max breakout forc (KN) 48
Max.dump height (mm) 2480
Max.dump reach (mm) 860
Lifting time (s) ¡Ü4.5
Total cycle time (s) ¡Ü9
Travel speed£¨km/h£© GRADE I I 8
GRADE II II 19
Max turning angle£¨¡ã£© Each 35¡ã£¨each direction£©
Min turning radius
(mm) 3600
Wheel base (mm) 1965
Tread (mm) 1400
Engine 4100G
Rated power (KW) 44
Rated speed (rpm) 2200
Transmission system type Static hydraulic-mechanical type
Steering system load sensing, prior steering
Overall dimensions(mm) 5100¡Á1800¡Á2600
Operating weight(kg) 4500
|
|
Items Technical Specifications
Rated weight (kg) 1200
Rated capacity (m§Ù) 0.5
Max breakout force (KN) 36
Max.dump height (mm) 2650
Max.dump reach (mm) 1000
Lifting time (s) ¡Ü4
Total cycle time (s) ¡Ü8
Travel speed£¨km/h£© GRADE I I 6
GRADE II II 18
Max turning angle£¨¡ã£© Each 35¡ã£¨each direction£©
Turning radius ( outside of rear wheel)£¨mm£© 3600
Wheel base (mm) 1820
Tread (mm) 1400
Engine 490G
Rated power(KW) 33
Rated speed(rpm) 2400
Transmission system type Static hydraulic -mechanical type
Steering system load sensing, prior steering
Overall dimensions (mm) 5300¡Á1680¡Á2400
Operating weight(kg) 3000
|
|
Items Technical Specifications
Rated weight (kg) 2000
Operating weight(kg) 6000
Rated capacity£¨m§Ù£© 1.0
Max breakout force (KN) 55
Max drawing force (KN) 45
Max.dump height (mm) 2750
Max.dump reach (mm) 920
Min turning radius (mm) 4600
Lifting time (s) ¡Ü5
Total cycle time (s) £¼9
Engine YTO(Luoyang) Diesel engine
Model LR4108G95
Type in line, water cooled, four stroke, direct injection
Rated power£¨KW£© 60
Rated speed£¨rpm£© 2400
Min oil consumption (g/kw.h) 224
Torque-converter model YJ280
Type Three-element, single stage
Transmission box type Full power shift, countershaft type
Wheel base (mm) 2350
Tread (mm) 1500
Overall dimensions (l¡Áw¡Áh) (mm) 5880¡Á2060¡Á2700
|
|
Items Technical Specifications
Rated weight (kg) 1800kg
Rated capacity (m§Ù) 0.9 m§Ù
Max breakout force (KN) 46KN
Max drawing force (KN) 35KN
Max.dump height (mm) 2600mm
Max.dump reach (mm) 910mm
Min turning radius (mm) 4120mm
Lifting time (s) ¡Ü4.5s
Total cycle time (s) ¡Ü9s
Engine 4100G
Rated power
(KW) 50KW
Rated speed(rpm) 2400r/min
Tread (mm) 1460mm
Wheel base (mm) 2095mm
Transmission system type Static hydraulic-mechanical type
Steering system load sensing, prior steering
Overall dimensions(mm) 5520¡Á1950¡Á2600mm
Operating weight (kg) 4800kg
|
|
|
|
|
|
LN920 wheel loader adopts LR4108G engine, hydraulic transmission, countershaft power shift transmission box, load sensing prior steering, air over oil service brake, and the middle articulated frame.
It is mainly used on stone yards, sand yards, coal yards, harbor and store houses for loose material¡¯s loading and short-distance transporting job.
SPECIFICATION:
Items Technical Specifications
Rated weight (kg) 2000
Operating weight(kg) 6000
Rated capacity£¨m§Ù£© 1.0
Max breakout force (KN) 55
Max drawing force (KN) 45
Max.dump height (mm) 2750
Max.dump reach (mm) 920
Min turning radius (mm) 4600
Lifting time (s) ¡Ü5
Total cycle time (s) £¼9
Engine YTO(Luoyang) Diesel engine
Model LR4108G95
Type in line, water cooled, four stroke, direct injection
Rated power£¨KW£© 60
Rated speed£¨rpm£© 2400
Min oil consumption (g/kw.h) 224
Torque-converter model YJ280
Type Three-element, single stage
Transmission box type Full power shift, countershaft type
Wheel base (mm) 2350
Tread (mm) 1500
Overall dimensions (l¡Áw¡Áh) (mm) 5880¡Á2060¡Á2700
Chinese Perkins(Lovol) is optional.
|
|
|
|
|
|
FEATURE:
LN920 wheel loader adopts LR4108G engine, hydraulic transmission, countershaft power shift transmission box, load sensing prior steering, air over oil service brake, and the middle articulated frame.
It is mainly used on stone yards, sand yards, coal yards, harbor and store houses for loose material¡¯s loading and short-distance transporting job.
SPECIFICATION:
Items Technical Specifications
Rated weight (kg) 2000
Operating weight(kg) 6000
Rated capacity£¨m§Ù£© 1.0
Max breakout force (KN) 55
Max drawing force (KN) 45
Max.dump height (mm) 2750
Max.dump reach (mm) 920
Min turning radius (mm) 4600
Lifting time (s) ¡Ü5
Total cycle time (s) £¼9
Engine YTO(Luoyang) Diesel engine
Model LR4108G95
Type in line, water cooled, four stroke, direct injection
Rated power£¨KW£© 60
Rated speed£¨rpm£© 2400
Min oil consumption (g/kw.h) 224
Torque-converter model YJ280
Type Three-element, single stage
Transmission box type Full power shift, countershaft type
Wheel base (mm) 2350
Tread (mm) 1500
Overall dimensions (l¡Áw¡Áh) (mm) 5880¡Á2060¡Á2700
Chinese Perkins(Lovol) is optional.
|
|
Item Performance
Max reach, open 1500mm
Min diameter, closed 450mm
Gripping tool width 1620mm
Max.dump height 2900mm
Max.dump reach 1360mm
Rated load capacity(kg) 1500kg
|
|
Bobcat did not stop with the invention and development of the skid-steer loader. Another unique product created by the innovative engineers at Bobcat is the all-wheel steer loader.
This revolutionary concept gives you two different steering modes to match your job: all-wheel steer for smooth operation or skid-steer for extra manœuverability. And with two machines in one, you may be able to downsize your equipment fleet.
The selectable steering modes allow the operator to work more efficiently in all situations. Why is the Bobcat all-wheel steer loader the perfect machine for many applications? Simply because this model guarantees you less ground disturbance, more tire life, reduced operator fatigue and increased efficiency.
Bobcat all-wheel steer loaders are backed up with service, parts and financing programs to keep them operational with minimum downtime.
Looking for more information about our Bobcat all-wheel steer loaders? Surf through the next webpages!
|
|
Smooth & quiet turbocharged 4-cylinder John Deere PowerTech™ diesel engine delivers exceptional reliability, power, and torque.
Patented vertical-lift boom with cushioned boom cylinders provides exceptional load stability, lift-height, and reach.
Purpose-built for rigorous tasks on steep slopes, sand, and muddy terrain.
Unsurpassed stability, breakout, bucket capacity, tractive effort, and travel speed for best-in-class productivity.
Quick-Tatch™ hitch accommodates a wide variety of Worksite Pro™ attachments.
|
|
|
|
|
|
Easy to use Travel and Loader PPC Joysticks
Low effort Proportional Pressure Control (PPC) joysticks operate travel and loader operations. Easy to use PPC controls help operators of all skill levels work precisely and efficiently all day long - with minimum effort and reduced operator fatigue. The right joystick controls the arm and bucket while the left controls the transmission.
Maximum Performance and Precise Control with Komatsu Hydraulics
Komatsu's smooth and precise hydraulic system lets the operator feel the performance of the machine. The Komatsu built system is designed for both single and simultaneous movements which achieves excellent control in positioning the bucket.
Standard Universal Attachment Quick Coupler
A universal quick coupler enables common attachments to be changed quickly and with minimal effort. Auxiliary hydraulics with flat faced connectors are standard. Most competitors' attachments can be utilized on Komatsu's compact track loaders.
Fully Hydrostatic Drive System
The Closed-center Load Sensing System (CLSS) ensures proportionality, precision and smoothness in all movements with two-speed travel. The system features a bi-directional variable flow piston pump coupled with two axial piston motors and incorporates Komatsu's patented Automatic Power Control (APC) allowing the hydraulic system to work at peak efficiency without stalling engine.
|
|
|
|
|
|
UNIQUE RUBBER TRACK UNDERCARRIAGE DELIVERS LOW GROUND PRESSURE SO YOU CAN WORK ON SENSITIVE SURFACE AND IN SOFT UNDERFOOT CONDITIONS
SPACIOUS,DELUXE SEALED CAB FOR YOUR OPTION
AN AIR RIDE SEAT KEEP YOU CONFORTABLE
WIDE RANGE OF OPERATING CAPACITIES AND ATTACHMENTS
80--100 DEUTZ ENGINE AND STRONG PERFORMANCE
TWO SPEED OPTION IS AVAILABLE FOR HIGHER TRAVEL SPEEDS
JOYSTICK WITH SHUTTLE VALVE CAN MAKE YOU DRIVE IT WITH SINGLE HAND
General Dimensions TS80
A-Height to top of ROPS: 2025mm
B-Ground clearance: 200mm
C-Max.lift height, at hinge pin: 2920mm
E-Length of undercarriage: 1938mm
F-Machine length, less bucket: 2676mm
G-Machine length, with bucket: 3385mm
H-Machine width: 1850mm
Track Specifications
I-Track width: 320mm
D-Length of track on ground: 1500mm
Machine Weight:
Weight,less bucket: 4000kg
Ground pressure: 37.9KPa
Ground contact area: 0.96‡u
Diesel Engine
Model:TS80 DEUTZ D226B-4G
Displacement: 4liter
Gross hoesepower—2500rpm: 56kw
Torque(peak): 275Nm
Operating Specifications:
Tipping Load: 2400kg
Operating capacity:
SAE J818 rating, 35% tip lead 840kg
SAE J818 rating,50% tip load 1200kg
Travel speed:
Low 0--8km/h
High 0--16km/h
Control pattern(joystick): Hydraulic Control
Auxiliary Hydraulic Pump
Flow, maximum: 75Lpm
Pressure: 16MPa
|
|
The Volvo Compact wheel loader family consists of 6 models; ranging from 4550 kg to 8330 kg in Operating weight, and 0.65 m3 to 2.5 m3 in Bucket capacity.
Volvo compact wheel loaders combine hi-tech and proven technical components in a way that fully complies with the requirements of modern construction practice, and which satisfies the strictest quality demands.
What’s more: These machines are produced and being operated with an utmost respect for our environment. The engines have low pollution figures and low noise emissions and as many machine parts as possible are recyclable.
|
|
|
With a unified design, optimal 60/40 weight distribution, a low center of gravity, long wheelbase, and large tires, John Deere’s 300 Series Skid Steers deliver unsurpassed stability and productivity. Other features designed to help these versatile machines overachieve include a patented vertical-lift boom, turbocharged high-torque diesel, smooth and responsive servo controls, impressive pushing power and breakout force, and best in-class visibility. Horsepower ranges from 61 (45.5 kW) to 91 (67.7 kW).
|
|
Maximum Performance and Precise Control
Komatsu's smooth and precise hydraulic system lets the operator feel the performance of the machine. The threespool open center control valve is designed for both single and simultaneous movements to achieve excellent controllability in the positioning of the bucket.
Features and Benefits
Standard Universal Attachment Quick Coupler
Auxiliary Hydraulic Control
Long Wheel Base (1041 mm 41")
Automatic Power Control (APC)
Outstanding Visibility
Super Flow Hydraulics (Optional)
Intelligent Operator Controls
Two-Speed Travel (low impact shift-on-the-go 10.5 kph 6.5 MPH work range and 16 kph 10 MPH travel range)
|
|
Rated Operating Capacity (kg) 1050
Tipping load (kg) 2100
Bucket Capacity (m³) 0.55
Engine power (hp) 75
Operationg Weight(kg) 3500
Max. Travel Speed (km/h) 12 /18
Hydraulic Pump Flow (L/min) 75/125
Fuel Tank Capacity (L) 90
Tires 12/16.5NHS
Overall dimensions (mm) 3560x1900x2050
A. Height at Maximum Extension 4070mm
B. Height to Bucket Hinge Pin 3150mm
F. Width with Bucket 1900mm
G. Track Width 1500mm
H. Wheelbase 1185mm
J. Ground Clearance 200mm
K. Dump Angle 40°
L. Dumping Height 2450mm
N. Rollback at ground 26°
U. Angle of Departure 20°
Specifications are subject to change without notice.
standard:
1 Encloesed Operator Cab
2. Hydraulic Joystick Controls
3. High-Flow Hydraulic System
4. Preheat Starting Assist System for Extreme Cold Weather
5. Cab Fitted with a Heater as Standard
optional:
1. Air Conditioner
2. 2-Speed Transmission System
3. Attachments: Backhoe, Breaker, Angle Blade, Auger, Sweeper, Pallet Fork, Combinition Bucket, Mower, Asphalt Cutter, and More.
|
|
|
|
|
|
Taian Tamec Imp.& Exp. Co.,Ltd £¨Taian Luyue Modern Agricultural Equipment Co.,Ltd£© is one of subcompany of Shandong New Juling Group, which designs, manufactures and sells a full line of compact skid steer loaders and diesel engines.
Our 3 ISO 9001:2000-certified factories have 7 production lines and 260 employees. This allows us to create 100 machines each month. Some of our parts are sourced from the US, England, Italy and Japan for added quality and reliability.
As a leader in skid steer loaders in China, our products have gained high reputation from customers. We have got CE certificate, Russian Gost certificate, Chinese government ICQ certificate and ISO9001 certificate. Our company gradually establishes the comparable advantage in ¡°independent innovation, lean production, and integrity management¡±, and forms the core competence.
As a professional and leading producer in China, we offer you so much more than the most complete line of skid steer loaders not only with the range of 40¡ª100hp, and engines of Perkins, Cummins, Hyundai, or Deutz for option, but also optional mechanical control type or Joystick control type, open or enclosed FOPS cab, wheeled or multi-terrain tracked type, with or without A/C, with or without 2-speed transmission system, optional high-flow system, special narrower width or lower height loader, mechanical leveling or hydraulic auto-leveling as well. Furthermore, more than 20 types job-matched attachments meet your demands.
The advanced technology, modern design, experienced technical experts, purchasing the main parts internationally assure the machineries to be high quality and good Technical Parameterswith competitive prices.
|
|
There's nothing mini about their productivity.
An arsenal to tackle any job. Perfect for landscaping, utility installation, fencing, moving materials around a work site or for home projects, Vermeer mini skid steers offer excellent versatility and user-friendly features.
Our mini skid steer line-up provides an alternative solution to manual labor by bringing a wide range of attachments info confined and weight senstive work areas, giving you the added versatility and expertise you need to accomplish a variety of projects.
Don't skid to a stop on your next dirt handling or utility installation project. See your nearest Vermeer dealer for more details.
|
|
|
|
|
|
Bobcat is the world leader in compact equipment.
The skid-steer concept was born of Bobcat's pioneering spirit in 1958. Innovation still drives Bobcat's product development, and continually leads to superior work- and time-saving capability as well as income-generating ability. Bobcat provides versatility and increased productivity throughout their long service life. Thoughtful design and quality engineering keep service and maintenance costs low, while the renowned Bobcat durability and reliability keep the resale value high.
As multi-functional tool carriers, Bobcat compact skid-steer loaders can be equipped with more than 80 quick-mounting attachments. The exclusive Bob-Tach™ mounting system allows attachments to be changed quickly by the operator while working on-site. Bobcat skid-steer loaders, the Bob-Tach™ and our job-matched attachments , the winning combination to perform more tasks and more applications, from construction, rental, landscaping, agriculture, horticulture, military, mining to demolition. Our manœuverable skid-steer loaders are made-to -measure to offer the operators ergonomics, comfort, safety, ease-of-use and efficient operating space.
Bobcat skid-steer loaders are backed up with a world class service, parts and financing programs to keep them operational with minimum downtime.
Looking for more information about our wide range of Bobcat skid-steer loaders? Surf through the next webpages!
|
|
216B Series 2 Skid Steer Loader
The Caterpillar Skid Steer Loader, with many work tool options, is ideal for construction, landscaping, agriculture and other applications. It delivers traditional Cat reliability and durability with excellent productivity.
Specifications:
- Net Flywheel Power: 47 hp
- Rated Operating Capacity: 1400 lb
Benefits & Features:
- World-class operator station provides exceptional working comfort with excellent visibility, enhanced fingertip control and optimum instrumentation.
- Caterpillar hystat power train delivers aggressive performance and easy operation.
- Hydraulic system has built-in reliability and provides exceptional lift, breakout and auxiliary power to work tools.
- The Caterpillar Skid Steer Loader heavy duty structures are engineered for years of use in extreme applications.
|
|
Hitachi's wheel loaders offer you an incredible array of options. Each is designed for easy operation. Minimal force is required to operate levers and pedals, enabling improved controllability. What's more, better gradability on hills, improved digging capability, and maximum visibility (through tapered engine covers) enable the most comfortable operation possible. Some of Hitachi's wheel loaders use hydrostatic transmission (HST) for ease-of-use and controllability. In addition to giving you plenty of speed, this hydraulic pump motor enables maximum mobility on construction sites.
Hitachi is committed to maintaining top efficiency while considering the equipment's surroundings. That's why our wheel loaders come equipped with reduced noise and low exhaust emissions. For being so environmentally-friendly, these machines have incredibly high productivity and low maintenance costs. They are built to be tough and durable so that you get the most for your money.
|
|

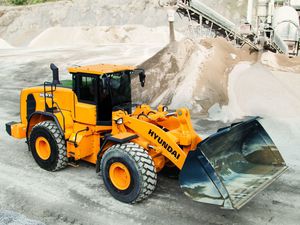

THE SKY IS THE LIMIT, WITH HYUNDAI
How high can you go? The Hyundai Wheelloader is a rugged,
productive, lean-and-mean lifting machine.
Designed for the European market, it delivers optimum
productivity, reliability and comfort in a robust, user-friendly
package. You will be amazed because of its short cycle-time;
it will push the envelope on your productivity!
Its large front window and big cabin is especially crafted to
ensure high operators visibility. Hyundai’s use of well-known and
trusted components, ensures that you are in the hands of an
established market leader.
With the Hyundai Wheelloader, there truly is no limit to what
you can do.
|
|

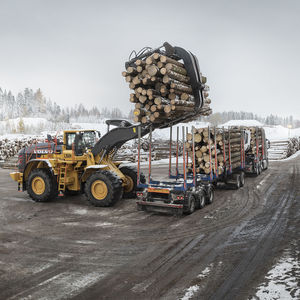

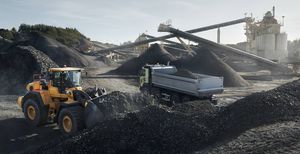

Volvo Wheel Loader family consists of 11 models; ranging from 73.9 kW (101 hp) to 369 kW (502 hp) in Engine output, and 1.2 m3 to 13.5 m3 in Bucket capacity
Whether you move rock, earth, timber, sand or snow, a wide range of Volvo Wheel Loaders and attachment options are available to help you conquer the elements.
|
|
- Automatic transmission with Electronically Controlled Modulation Valve (ECMV).
- Electronic controlled transmission lever.
- Variable transmission cut-off system.
- Telescopic/tilt steering column.
|
|
All Wheel Steer
Designed to maneuver.
Equipped to perform.
Now you have the tools to get the job done more efficiently than ever. Mustang now offers two all wheel steer (AWS) loaders as part of the most comprehensive line of compact construction equipment in the industry. Loading, stacking, digging, snow removal, material handling — the versatility of these machines is impressive. There’s little these machines can’t help you accomplish.
Each of these workhorses combines power, AWS maneuverability and a rigid frame for a stable machine that can plow through the tough jobs. A low center of gravity and a high steering angle make these new Mustang AWS loaders surefooted machines with extremely tight turning radius. Get more work done in the comfort of the all-weather cabin of a Mustang loader.
|
|
|
|
|
|
High performance, rugged durability, unsurpassed operator comfort, safety and product support make Bobcat compact articulated loaders the right choice for a wide range of applications in construction, landscaping and rental, as well as general material-handling and road repair work.
Standard auxiliary hydraulics increase the versatility and productivity of these machines by allowing the use of multi-function attachments.
The Deutz engine, the multi-function loader joystick set new standards for productivity.
A high-speed option allows the machine to reach 36 km/h for faster mobility and productivity.
Safety is a top priority. The rear cowling design provides maximum visibility to the rear of the loader. Fill spouts for the fuel and hydraulic fluid tanks are incorporated in the lockable rear hood for added security. Front work lights supply ample illumination.
The cab is mounted on rubber dampeners that smooth out ride on rough terrain by isolating the operator from the frame. Easy cab access from both sides of the machine, a hydraulically cushioned fully adjustable seat, panoramic visibility, ergonomic controls, a tiltable steering column, a standard radio installation kit and generous storage areas create a comfortable and convenient working environment. Cab heating, air recycling and filtration, with 5 ventilation outlets, ensure an optimal environment for the operator.
|
|
|
An excellent machine for all rental fleets. A height of 2.47m and a bucket width of 1.6m make thos machine ideal for narrow work sites.
|
|
... see all the products in the category
Loaders
|
|
|
