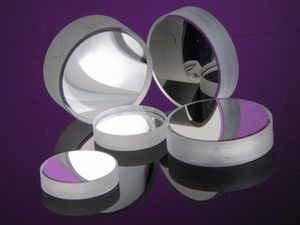

Mirrors performances are dependant of polishing precision and coating quality. Doric Lenses can achieve high surface polishing and apply any standard or custom reflective coatings. Mirrors shape can be flat, spherical, cylindrical, acylindrical, …
Mirrors are made from polished optical surfaces with thin film dielectric or metallic coating to achieve high reflectivity. We can produce custom mirrors on request.
We can produce Mirrors on request.
|
|
|
Mirrors are available in a variety of sizes and shapes. In addition to shape and dimensions, the primary factors that need to be considered when specifying a mirror are: the reflective coating, the substrate material, the flatness or surface accuracy, cosmetic surface quality.
|
|
|

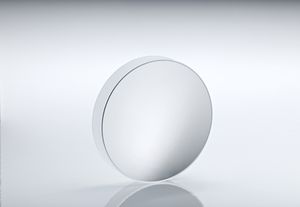

Mirrors are smooth, and contain a highly polished surface for reflecting light. The reflecting surface is usually a thin coating of aluminum or silver. Most mirrors for optical applications are called front surface types since the coating is on the front surface thereby eliminating the optical properties of the glass from affecting the incident or reflected light. The rear surface is usually fine ground. All of the following mirrors have a protected Aluminum coating applied to the front surface.
|
|
Dicool - optical mirrors that optimise the quality of light
Dicool optical mirrors maximise the power of lamps and the performance of luminaires.
Cool, efficient light
- Reflection rate: Approx: 91%
- Reduction rate (IR): Approx. 85%
- Reduction rate (UV): Approx. 96%
Easy on the environment
Reduces waste at relamping by approx. 90% because you only have to replace the lamp.
Choice of colour temperature
2000K, 2200K, 2400K, 3000K and 4200K series are available
|
|
* Cold Mirrors
* Hot Mirrors
* Hybrid Hot Mirrors
* Laser Mirrors
* Metallic Mirrors
|
|
Mirrors

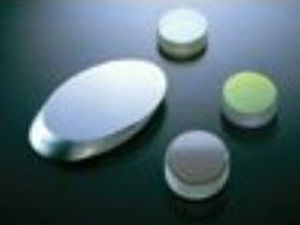

Mirrors are used in many different applications including imaging, illumination control and laser propagation. Mirrors at MediVision are manufactured in a variety of shapes and coatings.
Materials: Borosilicate Glass
Optical Crown
Fused Silica
Quartz, Zerodur
Shapes: Flat, spherical, square, round, rectangular, Elliptical, other custom shapes
Sizes: 4mm to 500mm
Coatings: Metal, Dielectric
|
|
|

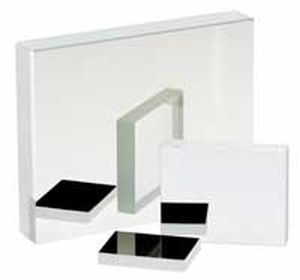

Front surface mirrors are coated with aluminum or dielectrics for maximum reflection. Tempotec provides both kinds of front surface mirrors: Metal coated mirror and Dielectric coated mirror.
|
|
| ... products without technical information |
| |
- Optical Deflection to 100 mrad (~6°)
- 1.0 kHz Resonant Frequency with Mirror
- Closed-Loop Version for Higher Linearity
- For Mirrors up to 12.5 mm (0.5") Diameter
- 2 Fixed Orthogonal Axes with a Common Pivot Point
- Sensor Configuration for Excellent Temperature Stability
- Zero Friction Flexure Guides
S-334 piezo stage tip/tilt platforms are fast and compact units providing precise angular movements of a mirror around two orthog-onal axes. The tip/tilt range is 50 mrad with sub-µrad resolution. Highest stability and accuracy is available in closed-loop operation.
|
|
|
|
