The PC/104-Plus standard combines the form factor of a PC104 with a fast PCI bus. These modules are compatible with the PC/104 standard, but data transfer is faster.
The incorporation of this standard makes it possible to create modules that are compact, robust and efficient. Embedded industrial uses include data control and acquisition. It can take the form of a single board computer, a video interface, a LAN card, an Ethernet, Profibus or other fieldbus interface, an adapter or a PCI bridge.
The main specifications of the PC/104 are retained. The 90 x 96 mm modules can be stacked to create shock- and vibration-resistant assemblies. Four mounting holes are present at the board's corners. Power consumption and generated heat are minimal. It is PC compatible, reducing development costs and time-to-market.
PC/104 modules can be mixed with PC/104-Plus modules on a same stack. PC/104 connection format is maintained, ensuring vertical continuity of the ISA bus, while a high-density 120-pin connector is added to the other side of the board for the 32-bit PCI bus.
The space between the modules is usually 15.24 mm (six inches), enabling up to five PC/104-Plus modules to be stacked. The data rate reaches 132 Mbytes/sec for 33 MHz clock speed, consuming only three milliamps.
Processor type, on-board memory, the specialized functions and the available ports will help to choose the appropriate PC/104-Plus.
- Compact and robust
- Low power consumption
- Modularity
- Fast PCI bus
 |
 |
PC/104-Plus single board computer AMD Embedded G-Series, 1.2 GHz, max. 3 GB | MSM-eO Kontron
The MICROSPACE® MSM-eO is based on the accelerated processing units of...
 |
 |
Murata Power Solutions MAPC-104 non-isolated, triple output DC/DC converter is designed to power the Cisco 3200 Mobile Access Router and is compliant to PC/104-Plus speci cations. The equipment ideally suites integration into public safety, defense, homeland security and commercial transportation vehicles, whether on land, in water or air, and is employed for powering secure data, voice and...
 |
 |
PC/104-Plus single board computer AMD Embedded G-Series, 1.2 GHz, max. 3 GB | MSM-eO Kontron America
The MICROSPACE® MSM-eO is based on the accelerated processing units of...
 |
 |
Rugged PC/104-plus CPU board PowerPC | MIP405 MPL
MIP405 PowerPC Inside MIP405 Board Image MPL expands it's MIP* Concept with a PowerPC solution. The new product called MIP405 is equipped with the highly integrated embedded PowerPC processor from IBM (PPC405GP with 375 DMIPS at 266MHz or PPC405GPr with 608 DMIPS at 400MHz). The MIP405 offers industrial specialties like: 4 serial and 2 USB ports,2 44-pin IDE I/F, a 10/100 Ethernet, PC/104...
 |
 |
PROFIBUS - PC/104-plus interface card PBpro PC/104plus Softing Industrial Automation
Support of PROFIBUS Master or Slave Functionality The protocol required for the specific use case is user selectable and executed on the PBpro PC/104plus board. As a DP...
 |
 |
Embedded PC/104 plus CPU board Intel Atom Z530 1.6 GHz | ISIS Eurotech
The ISIS processor board from Eurotech provides all the benefits of Intel's new Atom architecture in a PC/104+ form factor; comprising of a processor module and carrier board. Using...
 |
 |
Embedded PC/104 plus CPU board Intel® Core™ 2 Quad / Core™ 2 Duo / Celeron® | EBC 545 NEXCOM Europe
EBC 545 5.25" Intel® Core™ 2 Quad/ Core™ 2 Duo/ Celeron® Embedded CPU Board with Dual Display/ 1 x PCI/ 1 x PC/104+/ 2 x GbE Main...
 |
 |
PC/104-Plus CPU module Intel® Core™ Duo L2400, 1.66 GHz, max. 2 GB | EmModule-8313 Arbor
Features Fanless Design Soldered Onboard Intel® Core Duo L2400 CPU...
 |
 |
PC/104-Plus single board computer ZF Micro ZFx86, max. 100 MHz, 64 MB | APEX ZF Blue Chip Technology
The Apex ZF is a versatile, reliable X86 PC104+ board, offering a viable alternative for 186, 386 and 486 boards being phased out of production by AMD, Intel and STMicroelectronics. Available in 33MHz, 66MHz or 100Mhz processor options, the APEX ZF was conceived expressly for embedded applications, designed from the ground up with the most comprehensive set of...
 |
 |
PC/104-Plus single board computer Intel Atom, 1.6 GHz | CPU-Z530 Parvus
The CPU-Z530 is a rugged, compact PC/104-Plus single board computer (SBC) module featuring the low-power Intel Atom Z530 processor (@1.6GHz), Intel US15W chipset, 2GB DRAM, Gigabit Ethernet LAN connectivity, and mechanical...
 |
 |
PC/104-Plus single board computer Pegasus Diamond Systems
Pegasus is a rugged, fan-less PC/104-Plus SBC which features the AMD Geode LX800 low power consumption processor running at 500MHz. It has 256MB of high speed DDR SDRAM soldered on-board. Pegasus offers fully integrated PC functionality with low power consumption...
 |
 |

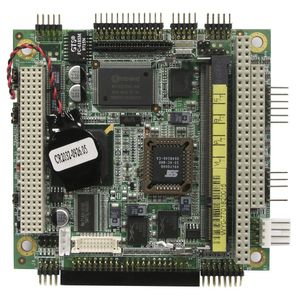

FEATURES Embedded AMD Geode LX700 (433MHz) / LX800 (500MHz) 1x DDR SO-DIMM, Max. 1GB Realtek RTL8100C 10/100 BaseT Ethernet Integrated LX800/LX700 2D VGA controller, supports CRT and LVDS 4 x USB 2.0, 2 x COM, Watchdog timer PC/104+ connector (PCI+ISA) IB704 SPECIFICATIONS CPU AMD Geode LX (LX800 @500MHz, LX700 @433MHz) 2nd Cache Memory 128KB on the processor Chipset AMD...
 |
 |
PC/104-Plus data acquisition card 16 channel, 12 bit, 110 kS/s | PCM-9112+ ADLINK TECHNOLOGY
Features PC/104-Plus specifications Rev. 1.2 compliant 12-bit A/D resolution Up to 110 kS/s sampling rate 16-CH single-ended or 8-CH differential inputs On-board A/D FIFO Bipolar or unipolar analog input...
 |
 |
CANopen - PC/104-plus interface card 10 kBaud - 1 MBaud | CIF 104P-COM Hilscher
The Communication Interface as a Master on the CANopen network exchanges independently the data between the devices on the bus and the internal process image. The process image is held in the Dual-Port-Memory and the application can access the data directly. The configuration is carried out with the aid of...
 |
 |

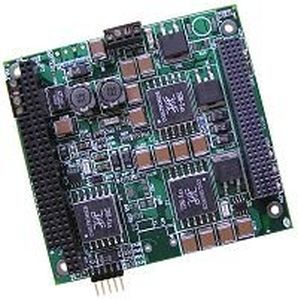

Isolated DC/DC converter in PC/104-Plus format 10 - 30 V | PSMU1000 Advanced Micro Peripherals
The AMP PSMU1000 is a versatile PC/104+ Power Supply and Management Unit. The PSMU1000 takes in DC voltage from +10V to 30V and provides +5V, +12V, -12V power...
