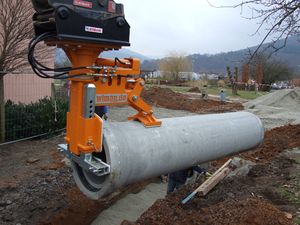

Pipe Layer :
The pipe layer for the safe pipe handling and professinal pipe laying
Max capacity: 5t
Automatic pickup of the pipe layer via the quick change system of the excavator
Lifting of the pipes by the excavator; transport without tilting of pipes
Optional use of pipe layer hydraulic system or connect the excavator hydraulic system
One man operation
Horizontal rotation by +/-15°
Additional pipe protection against slippage
Optional pipe pushing unit for safe pipe connection
No personnel within the dangerous area
|
|
|
|
|
|

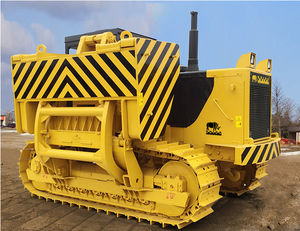

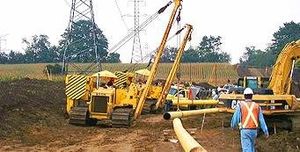

PIPELAYER 150P
RWF Bron 150P…the Power to Perform
The BRON 150P self-propelled Pipelayer is designed to perform efficiently in difficult, sensitive conditions. The 150P features full hydrostatic drive that gives the operation full control of track speed and critical link controls for sensitive hands-on side boom operation. The 150P features a 200 h.p. CAT diesel power train that gives you the power you need for operational efficiencies even in the toughest conditions. Tractor components include full hydrostatic two speed automatic drive, Sunstrand hydraulic motors and pumps, 80 gallon fuel capacity for up to 12 hours full load operation and a 65 gallon hydraulic tank. The BRON 150P is designed to maintain optimum performance in the toughest terrain with only 6.6 p.s.i. ground pressure.
The side boom has a standard lift of 30,000/40,000 lbs. and comes fully equipped with a 2 speed planetary load line winch, single speed planetary boom winch and a 5,000 lb. counterweight.
The 150P side boom weighs 35,000/37,000 lbs. fully loaded with side boom and counterweights, with a maximum overall length of 133.5”, outside track width of 110”, the BRON 150P is easy to load and unload in even the toughest on-site conditions.
|
|
|
|
|
|

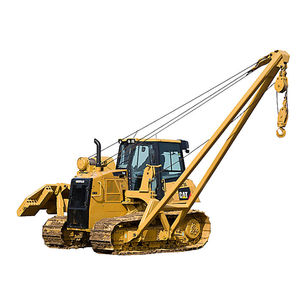

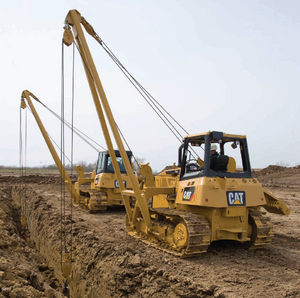

583T Pipelayer
Engineered for reliable production in the toughest conditions. The 583T's high horsepower and rugged components are designed for tough and varied working conditions. This machine offers the reliability and durability expected from Cat Pipelayers.
Specifications:
- Flywheel Power: 310 hp
- Lift Capacity: 140000 lb
Benefits & Features
- Caterpillar pipelayer system includes winch, boom, hook, counterweight and frame.
- Engineered to provide durability and the solid support necessary for maximum production and service life in the most demanding conditions.

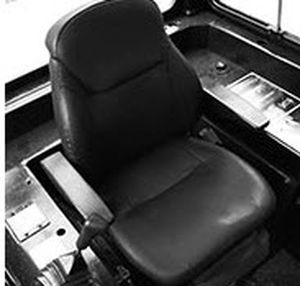

- Excellent operator visibility with ergonomically designed operator station for maximum comfort and productivity.
- Caterpillar offers an optional enclosed cab to maximize operator comfort in any climate.
- The rugged, easy-to-service Cat C15 engine with ACERT™ Technology has a high torque rise and meets worldwide emissions regulations.
- The drive train provides maximum efficiency in combination with the C15 engine with ACERT Technology.
- The Caterpillar elevated sprocket undercarriage is designed for optimized machine balance and best possible performance and extended component life
|
|
|
Cat Pipelayers have been the standard of the pipelining industry for decades. A worldwide network of Caterpillar dealers, in tune with the special high production needs of pipeliners, supports these durable, dependable machines.
|
|
|
|
|
|
Battenfeld Extrusionstechnik manufactures complete extrusion lines for the production of Polyolefin multi-layer pipes with diameters of 10 mm - 63 mm
for the following applications:
- potable water transport
- hot water transport
- floor heating/radiators
- industrial applications.
Pipe with specific attributes, e.g. acoustic insulation, oxygen barrier, special optical, mechanical or thermal properties can be economically manufactured with extrusion lines from Battenfeld Extrusionstechnik.
Battenfeld's special side-fed dies for multi-layer pipe offer the following advantages:
- gentle processing of material highly sensitive to thermal and mechanical stress, even at low mass flow rates
- symmetrical distribution of pressure in the die through twin center sleeves preceded by a coathanger manifold
- thermal isolation of each individual layer of melt through the modular, consecutive connection of several distributors
- optimum melt homogeneity due to a brake-up plate located behind the side-fed distributor
- accurate wall thickness distribution
|
|
Coextrusion
PROCESS
The co extrusion consists in adding a layer or a coloured strip to the main wall. The layer can be inside or outside of the pipe
This process work only with the vacuum system.
MATERIALS : PP - PE - PVC - PA…
APPLICATION
- automotive industry, fuel line, coextrusion of a barrier wall.
- automotive industry, coextrusion of a colour strip.
- electrical industry, outside co extrusion of coloured strip and inside co extrusion of a low friction layer.
|
|
Extruder mod. ES 45N/25D type high. Barrel and screw in nitriding steel.
Motor HP. 20 d.c.
Complete with temperatures control panel and Dynisco pression control.
Vertical extruder mod. ES 35N/22D. Barrel and screw in nitriding steel.
Electric control put in the general control panel.
Motor HP 7 d.c.
Front support fixed on the extruder E45 and suitable at support of the extruder E35.
|
|
