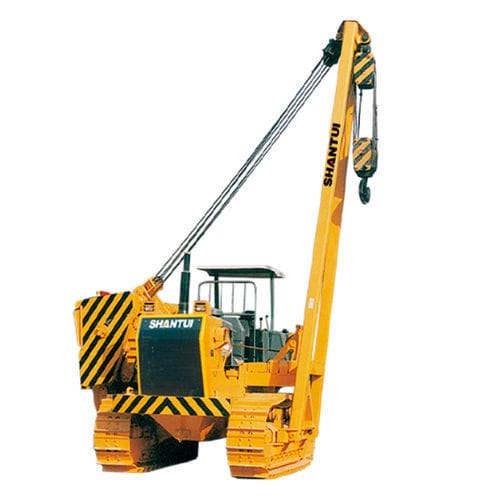

Pipe-layer SP25Y

Configuration selling point The engine, specifically customized by an affiliated company within the group, offers robust power and efficient performance, all while promoting energy conservation. The pilot operation driven by the load-sensitive hydraulic system enables stable lifting and precise control. Ease of maintenance and operation comfort The fully openable side guard offers a spacious maintenance area. Working valves are externally located to facilitate quick assembly and disassembly. Centralized pressure testing is equipped to enable convenient maintenance. Adaptability to diverse working conditions The extended boom enables a broad operational scope, while the high-strength four wheels and one track self-manufactured by Shantui ensure exceptional reliability and an extended service life. Overall weight(kg) - 23800 Rated power/rated speed(kW/rpm) - 131/1850 Maximum lifting weight(kg) - 25000 External dimensions(mm) - 4130x2610x3050 Engine model - Weichai WD10G Track center distance(mm) - 2050 Track shoe width(mm) - 560 Ground contact length(mm) - 2635 Fuel tank capacity(L) - 300 Working device - Suspension rod Emissions (Indicated as per international standards) - EU stageⅡ
