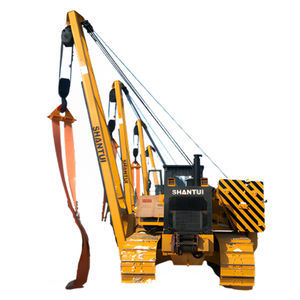

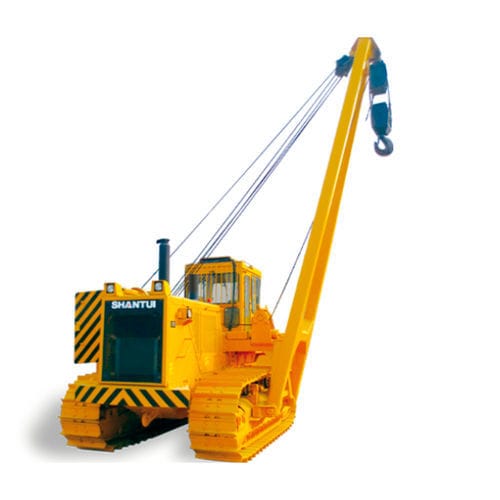

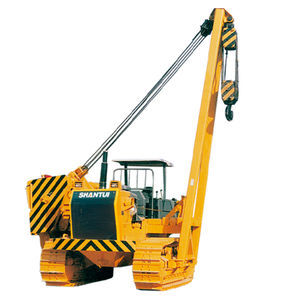

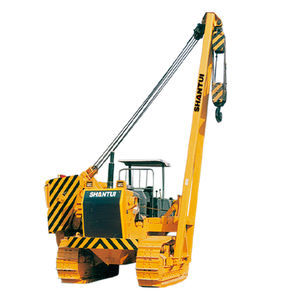

Pipe-layer SP70Y

Configuration selling point The dedicated engine delivers robust power and exceptional efficiency, while the pilot operation driven by the load-sensitive hydraulic system enables stable lifting and precise control. Ease of maintenance and operation comfort The fully openable side guard offers a spacious maintenance area. Working valves are externally located to facilitate quick assembly and disassembly. Centralized pressure testing is equipped to enable convenient maintenance. Adaptability to diverse working conditions The extended boom enables a broad operational scope, while the high-strength four wheels and one track self-manufactured by Shantui ensure exceptional reliability and an extended service life. Overall weight(kg) - 50000 Rated power/rated speed(kW/rpm) - 257/2000 Maximum lifting weight(kg) - 70000 External dimensions(mm) - 5560x3140x3600 Engine model - Cummins QSNT-C345/NTA855-C360 Track center distance(mm) - 2380 Track shoe width(mm) - 760 Ground contact length(mm) - 3620 Fuel tank capacity(L) - 600 Working device - Suspension rod Emissions (Indicated as per international standards) - EU stageⅢ/EU stageⅠ
