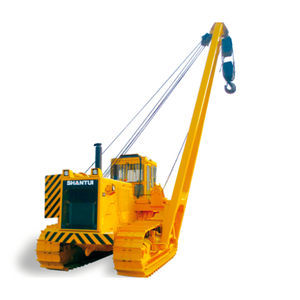

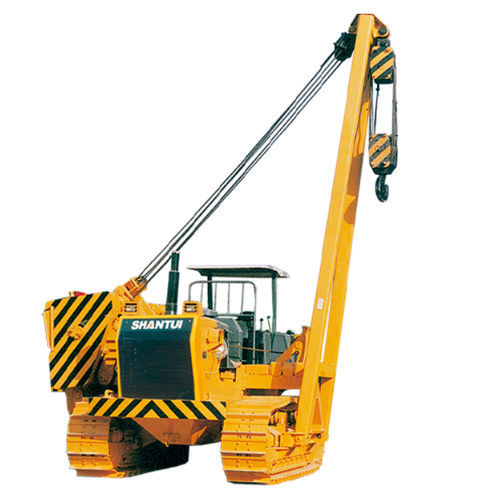

Pipe-layer SP45Y

Configuration selling point The dedicated engine delivers robust power and exceptional efficiency, while the pilot operation driven by the load-sensitive hydraulic system enables stable lifting and precise control. Ease of maintenance and operation comfort The fully openable side guard offers a spacious maintenance area. Working valves are externally located to facilitate quick assembly and disassembly. Centralized pressure testing is equipped to enable convenient maintenance. Adaptability to diverse working conditions The extended boom enables a broad operational scope, while the high-strength four wheels and one track self-manufactured by Shantui ensure exceptional reliability and an extended service life. Overall weight(kg) - 34000 Rated power/rated speed(kW/rpm) - 179/2000 Maximum lifting weight(kg) - 45000 External dimensions(mm) - 4760x2860x3300 Engine model - Cummins NT855-C280S10 Track center distance(mm) - 2250 Track shoe width(mm) - 610 Ground contact length(mm) - 3050 Fuel tank capacity(L) - 440 Working device - Suspension rod Emissions (Indicated as per international standards) - EU stageⅠ
